208-03-76660 2080376660 Hose KOMATSU Excavator Spare Parts Fit For PC400 PC450 PC550
- 208-03-76660 2080376660 Hose KOMATSU Excavator Spare Parts Fit For PC400 PC450 PC550
- Specifiion
| Name | Hose |
| Parts No | 208-03-76660 2080376660 |
| Machine Model | PC400 PC450 PC550 |
| egory | Cooling System |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
Based on relevant information, the 208-03-76660 hose is an intercooler hose. Intercooler hoses are key components in an engine's intake system. Their main function is to convey cooled air from the intercooler to the engine intake manifold, ensuring that cooled, denser air enters the engine to promote more efficient combustion, boost engine power output, and enhance fuel efficiency.
- Compatible models
EXCAVATORS PC400 PC450 PC550 Komatsu
- More other hose parts fit for KOMATSU machine
| 208-62-72131 HOSE, 2500MM |
| PC300, PC300HD, PC300LL, PC340, PC350, PC350LL, PC400, PC450, PC490, PC550, PRESSURE, RAIN |
| 6156-11-4470 HOSE |
| PC400, PC450, SAA6D125E |
| 207-62-71750 HOSE |
| AIR, PC300, PC300HD, PC300LL, PC340, PC350, PC350HD, PC350LL, PC360, PC400, PC450, PC550, PRESSURE, RAIN |
| 207-810-1342 HOSE ASSEMBLY |
| PC300, PC350, RAIN |
| 208-62-72160 Hose, L=720mm |
| HB205, HB215, PC130, PC200, PC200LL, PC220, PC220LL, PC228, PC228US, PC240, PC270, PC290, PC400, PC450, PC550 |
| 208-62-71670 HOSE, 550MM |
| PC210, PC228, PC228US, PC230NHD, PC300, PC300HD, PC300LL, PC308, PC340, PC350, PC400, PC450, PC490, PC550, PRESSURE, RAIN |
| 208-62-72210 HOSE, 400MM |
| PC300, PC300HD, PC300LL, PC340, PC350, PC350HD, PC350LL, PC400, PC450, PC550, PRESSURE, RAIN |
| 208-62-72520 HOSE, 1350MM |
| PC400, PC450, PC550 |
| 09483-10308 HOSE |
| HD465, HM350, HM400, PC400, PC450, PC550, WA270, WA320 |
| 208-03-75470 HOSE |
| PC400, PC450, PC550 |
| 208-03-75531 HOSE |
| BR580JG, PC400, PC450 |
| 208-03-75540 HOSE |
| PC400, PC450 |
| 208-03-75542 HOSE |
| PC400, PC450 |
| 208-03-75491 HOSE |
| BR580JG, PC400, PC450, PC550 |
| 208-03-76630 HOSE |
| BR580JG, PC400, PC450, PC550 |
| 208-62-74611 HOSE |
| PC400, PC450 |
| 208-62-74621 HOSE |
| PC400, PC450, PC550 |
| 02763-00414 HOSE |
| PC400, PC450, PC550 |
| 02762-00435 HOSE |
| D155AX, D85EX, D85MS, D85PX, PC400, PC450, PC550 |
| 208-03-75830 HOSE |
| PC400, PC450, PC550 |
| 208-03-75480 HOSE |
| PC400, PC450 |

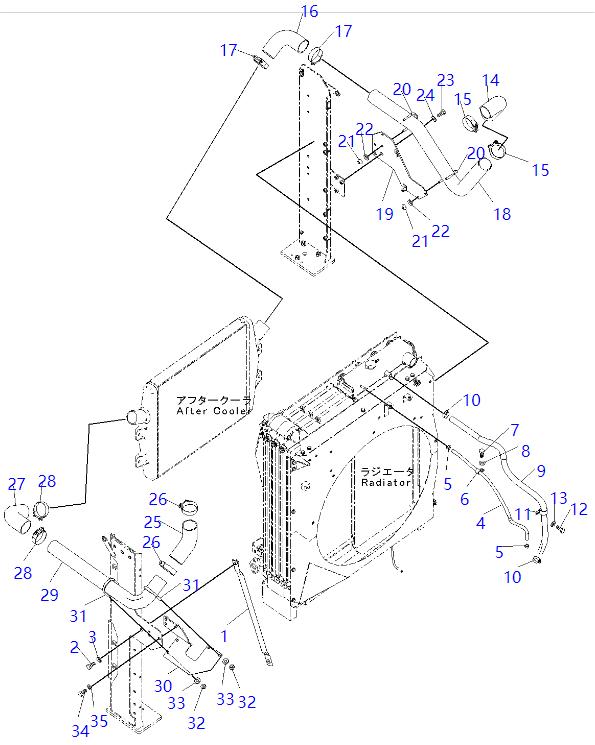

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 208-03-75461 | [1] | Stay Komatsu China | |
| ["SN: 70299-@"] | ||||
| 1 | 208-03-75460 | [1] | Stay Komatsu China | |
| ["SN: 70001-70298", "SCC: A2"] analogs:["2080375460SG"] | ||||
| 2 | 01010-81650 | [1] | Bolt Komatsu China | 0.113 kg. |
| ["SN: 70299-@"] analogs:["0101061650", "0101051650", "0101031650"] | ||||
| 2 | 01010-81645 | [1] | Bolt Komatsu China | 0.104 kg. |
| ["SN: 70001-70298", "SCC: A1"] analogs:["0101061645", "801015187", "0101031645", "0101051645", "37A0911184", "801014184"] | ||||
| 3 | 01643-31645 | [1] | Washer Komatsu | 0.072 kg. |
| ["SN: 70001-@"] analogs:["802170005", "0164301645"] | ||||
| 4 | 09483-10308 | [1] | Hose Komatsu | 0.154 kg. |
| ["SN: 70001-@"] | ||||
| 5 | 11Y-09-11140 | [2] | Clip Komatsu | 0.01 kg. |
| ["SN: 70001-@"] | ||||
| 6 | 04434-51712 | [1] | Clip Komatsu | 0.02 kg. |
| ["SN: 70001-@"] | ||||
| 7 | 01010-81225 | [1] | Bolt Komatsu | 0.074 kg. |
| ["SN: 70001-@"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] | ||||
| 8 | 01643-31232 | [1] | Washer Komatsu | 0.027 kg. |
| ["SN: 70001-@"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 9 | 07261-22012 | [1] | Hose Komatsu | 0.804 kg. |
| ["SN: 70001-@"] | ||||
| 10 | 07281-00359 | [2] | Clamp, Hose Komatsu | 0.06 kg. |
| ["SN: 70001-@"] | ||||
| 11 | 04434-53212 | [1] | Clip Komatsu | 0.042 kg. |
| ["SN: 70001-@"] | ||||
| 14 | 208-03-76630 | [1] | Hose Komatsu | 0.28 kg. |
| ["SN: 70001-@"] analogs:["6156114470"] | ||||
| 15 | 207-01-75340 | [2] | Clamp Komatsu | 1.5 kg. |
| ["SN: 70001-@"] | ||||
| 16 | 208-03-75491 | [1] | Hose Komatsu | 0.49 kg. |
| ["SN: 70001-@"] | ||||
| 18 | 208-03-75510 | [1] | Tube Komatsu China | |
| ["SN: 70001-@"] analogs:["2080375510SG"] | ||||
| 19 | 208-03-77130 | [1] | Bracket Komatsu China | |
| ["SN: 70001-@"] | ||||
| 20 | 07283-37663 | [2] | Clip Komatsu China | |
| ["SN: 70001-@"] | ||||
| 21 | 01597-01009 | [4] | Nut Komatsu | 0.011 kg. |
| ["SN: 70001-@"] | ||||
| 22 | 01643-31032 | [4] | Washer Komatsu | 0.054 kg. |
| ["SN: 70001-@"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 23 | 01010-81230 | [3] | Bolt Komatsu | 0.043 kg. |
| ["SN: 70001-@"] analogs:["0101051230", "01010B1230"] | ||||
| 25 | 208-03-76660 | [1] | Hose Komatsu | 0.5 kg. |
| ["SN: 70001-@"] | ||||
| 27 | 208-03-76650 | [1] | Hose Komatsu | 0.44 kg. |
| ["SN: 70001-@"] | ||||
| 29 | 208-03-75550 | [1] | Tube Komatsu China | |
| ["SN: 70001-@"] analogs:["2080375550SG"] | ||||
| 30 | 208-03-76670 | [1] | Bracket Komatsu China | |
| ["SN: 70001-@"] |
