21E5-0003 21E50003 Battery Relay HYUNDAI Excavator Spare Parts Fit For R210LC-9 R320-7 R360-7
- 21E5-0003 21E50003 Battery Relay HYUNDAI Excavator Spare Parts Fit For R210LC-9 R320-7 R360-7
- Specifiion
| Name | Battery Relay |
| Parts No | 21E5-0003 21E50003 |
| Machine Model | R210-7 R210LC-9 R210LC-9 R320-7 R360-7 R250-7 R305 |
| egory | Emergency Steering |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
HEAVY EQUIPMENT 1221E CAASE
- More other relay parts fit for CAASE machine
| E225-0006 RELAY |
| 1221E |
| 24L1-05100 RELAY |
| 1221E, 1221F |
| 11N6-90820 RELAY |
| 1221E, 1221F |
| 87378787 RELAY |
| 521D |
| A187938 RELAY,24V |
| 721C, 521D, 821C, 621D, 921C, 721D |
| L113460 RELAY,24V |
| 721C, 921, 821C, 621B, W24C, 721B, 621C, 921C, 821B, W30, W14, W20C, 921B, W14FL, 721, 821, W14H, W18B, W36, 621 |
| A186288 RELAY |
| 721C, 921, 821C, 621, 921C, 721, 621C, 821 |
| 84347977 RELAY |
| 845B, 865B AWD, 885B AWD, 865B, 885B |
| 147722A1 RELAY,24V |
| 845B, 865B, 885B |
| 21QA-70010 RELAY |
| 1221F |
| 84515582 RELAY |
| 721F, 521F, 821F, 621F, 1021F, 921F, 1121F |
| 87318986 RELAY,4 Pin, 24V |
| 521F, 621F, 721F, 821F, 921F, 1021G, 1121G, 521G, 621G, 721G, 821G, 521E, 921G, 621E, 721E, 821E, 921E, 1021F, 1121F |
| 11N6-90820 RELAY |
| 1221E, 1221F |
| 24L1-05100 RELAY |
| 1221E, 1221F |
| E225-0006 RELAY |
| 1221E |

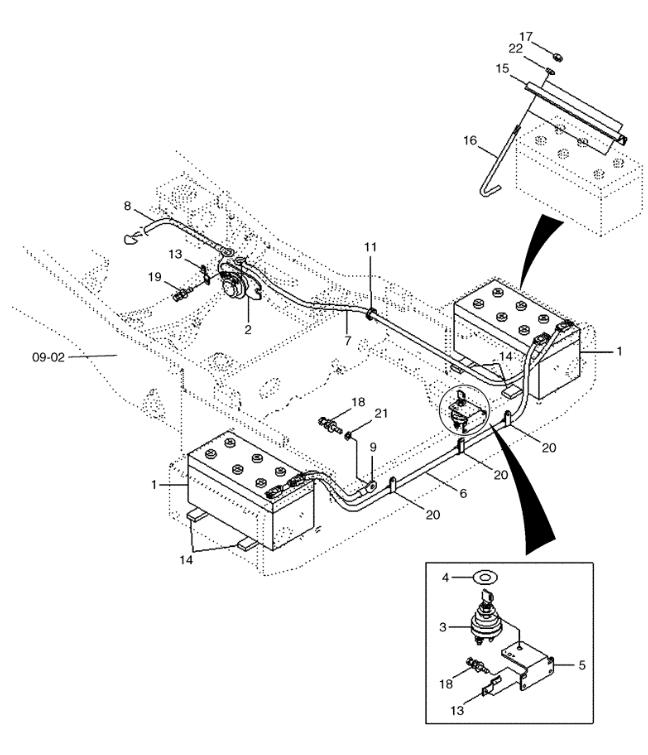

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | BCM8DAW | [2] | WET BATTERY | IH North America |
| 1 | CBCM8DA | [2] | BATTERY, DRY | CAS Canada Superseded by part number: CCBCM8DAW |
| 2 | 21E5-0003 | [1] | RELAY | FAR BATTERY |
| 3 | 21L7-10500 | [1] | SWITCH | FAR MASTER |
| 4 | 21N4-10451 | [1] | DECAL | FAR MASTER SW; PRIOR TO P.I.N. 10123 |
| 4 | 21LD-34180 | [1] | DECAL | FAR MASTER SW; P.I.N. 10123 AND AFTER |
| 5 | 21LH-34150 | [1] | PLATE | FAR MASTER SWITCH |
| 6 | 21L6-40360 | [1] | ELECTRIC CABLE | FAR Battery To Battery |
| 7 | 21LH-34160 | [1] | ELECTRIC CABLE | FAR Relay To Battery |
| 8 | 21LH-20050 | [1] | ELECTRIC CABLE | FAR Relay To Starter |
| 9 | 21LH-34200 | [1] | ELECTRIC CABLE | FAR Battery To Earth |
| 11 | S760-111800 | [1] | GROMMET | FAR |
| 13 | 21E7-0612 | [2] | PLATE | FAR CONNECTOR |
| 14 | 24L1-40360 | [4] | PAD | FAR |
| 15 | 21L6-01400CY | [2] | ANGLE | FAR WA |
| 16 | 24L1-10160 | [4] | BAR | FAR |
| 17 | 829-1408 | [4] | NUT,Hex, M8 x 1.25, Cl 10.9 | CAS Superseded by part number: 87778059, 43362 |
| 18 | 627-10020 | [2] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd | CAS Superseded by part number: 11106031 |
| 18-1. | 896-11010 | [2] | WASHER,11mm ID x 21mm OD x 2.5mm Thk | CAS Superseded by part number: 86625252 |
| 18-2. | 892-11010 | [2] | LOCK WASHER,M10 | CAS Superseded by part number: 140028 |
| 19 | 627-8025 | [2] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd | CAS Superseded by part number: 43234 |
| 19-1. | 896-11008 | [2] | WASHER,9mm ID x 17mm OD x 2mm Thk | CAS Superseded by part number: 86624185 |
| 19-2. | 892-11008 | [2] | LOCK WASHER,8mm ID | IH Superseded by part number: 72187304, 83990583 |
| 20 | 515-24206 | [3] | CLAMP,13/16", Insul, 7/16" Bolt | BRR Superseded by part number: 87530629 |
| 21 | S431-100002 | [1] | LOCK WASHER | FAR INTERNAL T/LOCK |
| 22 | 892-11008 | [2] | LOCK WASHER,8mm ID | IH Superseded by part number: 72187304, 83990583 |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
