VOE14540907 14540907 Swing Gearbox Excavator Spare Parts For EC140C EC140D EW140E EW145B
- VOE14540907 14540907 Swing Gearbox Excavator Spare Parts For EC140C EC140D EW140E EW145B
- Specifiion
| Name | Swing Gearbox |
| Parts No | VOE14540907 14540907 |
| Machine Model | EC140C EC140D EW140E EW145B |
| egory | Swing Motor With Mounting Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
1.The swing gearbox, also known as a swing drive, is crucial for excavators, being tasked with rotating the excavator's upper structure.
2.It transfers torque from the engine or hydraulic motor to the upper structure, enabling it to turn 360 degrees, facilitating quick direction changes by operators. It also supplies support and stability to the upper structure when it rotates.
- Compatible models
EXCAVATORS EC140C EC140D EW140E EW145B Vo.lvo.
- More other swing gearbox parts fit for V O L V O machine
| VOE14563340 Swing gear |
| EC135B, EC140C, ECR145C, EW140C, EW145B |
| VOE14577175 Swing gear |
| EC140B, EC140C, EC140D, ECR145C, ECR145D, EW140C, EW145B |
| VOE14549861 Swing motor |
| EC140C, ECR145C, ECR145D, ECR145E |
| VOE14539045 Swing motor |
| EC140C, EC140D, EC140E |
| VOE14559150 Swing motor |
| EW140E, EW145B |
| VOE14642271 Swing gearbox |
| EC120D, EC140D, EC140E |
| VOE14673318 Swing motor |
| EC120D, EC140D |
| VOE14666710 Swing gear |
| EC140D, EC140E, ECR145E, EW140E |
| VOE14699273 Swing motor |
| ECR145C, ECR145E, EW140E, EW145B |
| VOE14563573 Swing gearbox |
| ECR145C, ECR145D, ECR145E |
| VOE14504426 Swing Gear |
| EC150, EC160B |
| VOE14595269 Swing motor |
| EC300D, PL3005D |
| VOE14573670 Swing motor |
| EC460B, EC460C, PL4608, PL4611 |
| VOE14598750 Swing motor |
| EC250D |
| VOE14550091 Swing motor |
| EC210B |
| VOE14592186 Swing motor |
| ECR305C |
| VOE14647524 Swing gear |
| EC220E, ECR235E, EW180C, EW180D, EW180E, EW205D, EW210D |
| VOE14658026 Swing gear |
| EW160D, EW160E |
| VOE14579709 Swing motor |
| EC460C, EC460CHR |
| VOE14524188 Swing motor |
| EC135B, EC140B |
| VOE14577175 Swing gear |
| EC140B, EC140C, EC140D, ECR145C, ECR145D, EW140C, EW145B |

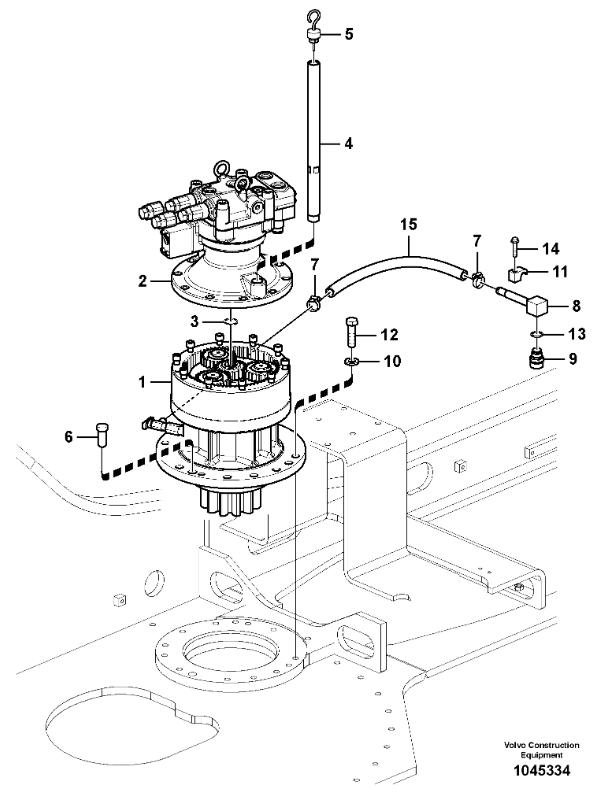

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14574764 | [1] | Drive unit | S/N - 19909 | |
| VOE14717471 | [1] | Drive unit | S/N 19910 - | |
| 1 | VOE14540907 | [1] | Swing gearbox | |
| 2 | VOE14559150 | [1] | Swing motor | S/N - 19909 |
| 2 | VOE14699273 | [1] | Swing motor | S/N 19910 - |
| 3 | VOE914462 | [1] | Snap ring | |
| 4 | VOE14588063 | [1] | Pipe | |
| 5 | VOE14588062 | [1] | Gauge | |
| 6 | SA1050-63611 | [1] | Pin | |
| 7 | VOE14511415 | [2] | Clamp | |
| 8 | VOE14514121 | [1] | Pipe line | |
| 9 | VOE14722461 | [1] | Draining valve | |
| 10 | VOE60110299 | [11] | Washer | |
| 11 | VOE14881231 | [1] | Clamp | |
| 12 | VOE60110356 | [11] | Hexagon screw | |
| 13 | VOE949329 | [1] | Gasket | |
| 14 | VOE13947760 | [1] | Screw | |
| 15 | SA9951-16009 | [1] | Fuel hose |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
