71N6-10161 71N6-10181 Pad-Rubber HYUNDAI Excavator Spare Parts For R110-7 R140LC-7 R160LC7

Price Negotiable
Price: 12 USD / pcs
MOQ: 1 PCS
Delivery Time: 3-7 working days
Brand: OEM
Product Description
  • 71N6-10161 71N6-10181 Pad-Rubber HYUNDAI Excavator Spare Parts For R110-7 R140LC-7 R160LC7





  • Specifiion
Name Pad-Rubber
Parts No 71N6-10161 71N6-10181
Machine Model R110-7 R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A
egory Bottom Plate Mounting
Lead time 1-3 DAYS
Quality Brand new, OEM quality
MOQ 1 PCS
Means of transport By sea/air, DHL FEDEX UPS TNT EMS
Packing As request or standard packing





  • Function

As "Pad-Rubber" products, both of them likely play roles like shock absorption, vibration reduction, sealing, or protection in Hyundai machinery. For instance, they might be used to mitigate vibrations between components to boost equipment stability and reduce noise, act as seals for avoiding fluid leakage at connections of pipelines or containers, or protect surfaces of parts from abrasion, impact, etc.





  • Compatible models

7 SERIES WHEEL EXCAVATOR R140W7 R140W7A R170W7 R170W7A R200W7 R200W7A

7-SERIES CRAWLER EXCAVATOR R110-7 R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A R360LC7 R360LC7A R370LC7 R450LC7 R450LC7A R500LC7 R500LC7A R80-7 RC215C7 RC215C7H RD210-7V RD340LC-7 RD80-7

9-SERIES CRAWLER EXCAVATOR R140LC9V RD140LC9 Hyundai





  • More other rubber parts fit for HYUNDAI machine
34E7-04350 RUBBER-CUSHION
R360LC3, R450LC3A, R450LC7

34E7-04340 RUBBER-CUSHION
R360LC3, R450LC3A, R450LC7

31NB-12490 RUBBER-CUSHION
R450LC7

81N1-28010 RUBBER TRACK
R80-7, R80-7A, RD80-7

71N1-41330 RUBBER PAD
R80-7, R80-7A

61EE-01330 RUBBER-PIN LOCK
R80-7, R80-7A, R80CR-9, R80CR-9A, R95W3, RD80-7

11QE-00200 RUBBER-MOUNT
R450LC7, R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S, RD510LC-7

11QB-02220 RUBBER-MOUNT
HX480L, HX520L, R450LC7, R480C9MH, R480LC9, R480LC9S, R500LC7, R520LC9, R520LC9S, RD510LC-7

XKBH-02042 RUBBER-PROTECTOR
R210LC7H, R210LC9BH

11QB-00180 RUBBER-MOUNT
R480C9MH, R480LC9, R480LC9S, R500LC7, R520LC9, R520LC9S, RD510LC-7

81N1-28011 RUBBER TRACK
R80-7

11NB-20140 RUBBER-SEAL
R500LC7, RD510LC-7

71N6-11140 RUBBER PAD
R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9V, R140W7, R160LC7, R160LC7A, R170W7, R180LC7, R180LC7A, R200W7, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R250LC7, R250LC7A, R290LC7, R29...

71N6-02960 RUBBER
R110-7, R110-7A, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290...

71EH-10430 RUBBER
33HDLL, 42HDLL, R110-7, R110-7A, R130LC3, R130W3, R140LC-7, R140LC-7A, R140LC9V, R140W7, R140W7A, R160LC3, R160LC7, R160LC7A, R170W3, R170W7, R170W7A, R180LC3, R180LC7, R180LC7A, R200NLC3, R200W3, R20...

31N1-40941 RUBBER-T/JOINT
HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, R110-7, R110-7A, R125LCR-9A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R145CR9, R145CR9A, R16...

11N6-08250 RUBBER-MOUNT
110D-9, H80, HL740-F, HL740TM-F, HL757-F, HL757TM-F, HL760-F, HL770-F, HL780-F, R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9S, R140LC9V, R140W7, R140W7A, R140W9S, R145CR9, R160LC7A, R170W7A, R180LC7A...

71S7-40091 RUBBER PAD
HSL800-7, HSL850-7A

71S7-40070 RUBBER PAD
HSL800-7, HSL850-7A

71S7-40060 RUBBER PAD
HSL800-7, HSL850-7A

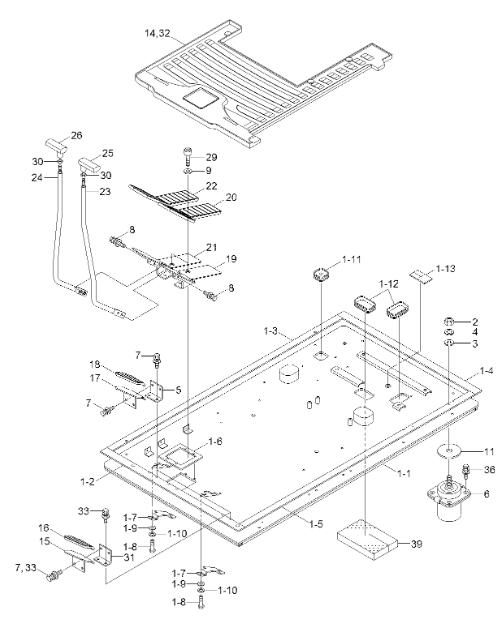

  • alog parts list
Pos. Part No Qty Parts name Comments
1 71N6-10105 [1] BOTTOM PLATE ASSY
1-1. 71N6-10113 [1] BOTTOM PLATE WA
1-2. 71N6-11100 [1] PAD-RUBBER
1-3. 71N6-11110 [1] PAD-RUBBER
1-4. 71N6-11120 [1] PAD-RUBBER
1-5. 71N6-11130 [1] PAD-RUBBER
1-6. 71N6-11140 [1] PAD-RUBBER
1-7. 71E9-10661 [1] COVER
1-8. S017-100166 [2] BOLT-HEX
1-9. S403-102006 [2] WASHER-PLAIN
1-10. S411-100006 [2] WASHER-SPRING
1-11. 71E9-10630 [1] GROMMET
1-12. 71E9-10640 [2] GROMMET
1-13. 71N4-10940 [1] PAD-TRAVEL LINK
2 S207-161006 [6] NUT-HEX
3 S403-162006 [6] WASHER-PLAIN
4 S411-160006 [6] WASHER-SPRING
5 71N6-10130 [1] BRACKET-FOOT REST STD
6 71N6-10300 [6] VISCOUS MOUNT
7 S037-102526 [8] BOLT-W/WASHER STD
8 S037-103026 [4] BOLT-W/WASHER
9 S403-102006 [4] WASHER-PLAIN
11 71E9-10650-DA [6] WASHER
14 71N6-10141 [1] MAT-FLOOR STD
*. 71N6-10310 [1] FOOT REST ASSY-LH
15 71N6-10150 [1] BRACKET-FOOT REST,LH
16 71N6-10161 [1] RUBBER-FOOT REST,LH
*. 71N6-10320 [1] FOOT REST ASSY-RH
17 71N6-10170 [1] BRACKET-FOOT REST STD
18 71N6-10181 [1] RUBBER-FOOT REST,RH STD
19 71N6-10190 [1] BRACKET-PEDAL,LH
20 71N6-10201 [1] RUBBER-PEDAL,LH
21 71N6-10210 [1] BRACKET-PEDAL,RH
22 71N6-10221 [1] RUBBER-PEDAL,RH
23 71N6-10230 [1] LEVER-TRAVEL,LH
24 71N6-10240 [1] LEVER-TRAVEL,RH
25 71N6-10251 [1] KNOB-LEVER,LH
26 71N6-10261 [1] KNOB-LEVER,RH
29 S109-100206 [4] BOLT-SOCKET
30 S206-101006 [2] NUT-HEX
31 71N6-10130 [1] BRACKET-FOOT REST
32 71N6-10280 [1] MAT-FLOOR 2PCS OR 2WAY
33 S037-102526 [4] BOLT-W/WASHER 2PCS OR 2WAY
36 S037-103022 [24] BOLT-W/WASHER
39 71N4-10970 [1] SPONGE-INSULATION







  • We could supply the following spare parts



1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.



2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.



3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.



4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.



5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.



6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.







  • Advantage



1. Offer Top quality & competitive products


2. Support 12-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service







  • Packing and Shipping



Packing Details :



inner packing : plastic film for wrapping



external packing : wooden



Shipping :



within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.



1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,



2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.



3. By Sea: Delivery from the Huangpu port .
