VOE15073261 15073261 Air A/C Blower Fan Motor KOMATSU Dump Truck Spare Parts For L90F L90G L120G
- VOE15073261 15073261 Air A/C Blower Fan Motor KOMATSU Dump Truck Spare Parts For L90F L90G L120G
- Specifiion
| Name | Air A/C Blower Fan Motor |
| Parts No | VOE15073261 15073261 |
| Machine Model | L90F L90G L120G L150G L180G |
| egory | Fresh Air Inlet, Air Filter And Fan Housing |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
This motor drives the blower fan, which circulates air through the HVAC system. It pushes conditioned air (cooled by the air conditioning or heated by the heater core) into the cabin, maintaining comfortable temperature levels for the operator. By controlling fan speed, it adjusts airflow intensity to suit ambient conditions and operator preferences, ensuring a productive working environment even in extreme temperatures.
- Compatible models
- More other motor parts fit for V O L V Omachine
| VOE14545480 Fan shroud |
| EC240B, EC240C, EC290B, EC290C, FC2924C, FC3329C |
| VOE4947359 Fan Shroud |
| 4200B, L50 |
| VOE4948620 Fan ring |
| 4200B, L50 |
| VOE11033358 Fan |
| 6300 |
| RM43856525 Fan shroud |
| DD132/DD138/DD140 |
| RM43856459 Fan guard |
| DD112/DD118/DD120, DD132/DD138/DD140 |
| VOE11435752 Fan Shroud |
| L150E, L150F, L180E, L180F, L180F HL, L220E, L220F |
| VOE14614051 Fan Shroud |
| EC480D, EC480DHR, PL4809D |
| VOE14624857 Fan shroud |
| EC340D, EC380D, EC380DHR, EC480D, EC480DHR |
| VOE14602258 Fan shroud |
| EC240B, EC290B |
| ZM2904223 Fan Shroud |
| ZL502C |
| VOE4804754 Fan Protector |
| 4200B, L50 |

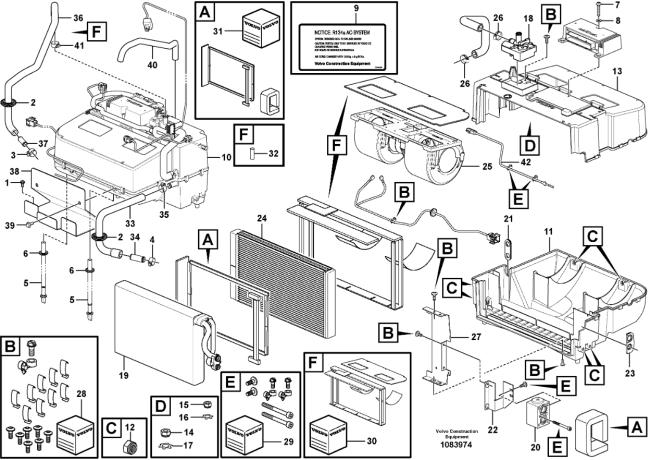

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE13981208 | [2] | Screw | |
| 2 | VOE13961962 | [2] | Protecting bushing | |
| 3 | VOE13943472 | [1] | Hose clamp | |
| 4 | VOE13943474 | [1] | Hose clamp | |
| 5 | VOE15185489 | [2] | Hose kit | |
| 6 | VOE961970 | [2] | Plug | |
| 7 | VOE969587 | [1] | Six point socket screw | |
| 8 | VOE955892 | [1] | Plain washer | |
| 9 | VOE11444125 | [1] | Decal | 31715 S/N 1257- |
| 10 | VOE16229310 | [1] | Climate unit | |
| 11 | VOE15073116 | [1] | Housing | |
| 12 | VOE15073819 | [6] | Nut | |
| 13 | VOE16688296 | [1] | Housing | |
| 14 | VOE15073815 | [4] | Nut | |
| 15 | VOE15073817 | [1] | Nut | |
| 16 | VOE15073822 | [1] | Washer | |
| 17 | VOE15073820 | [4] | Washer | |
| 18 | VOE15054424 | [1] | Valve | |
| 19 | VOE16688256 | [1] | Evaporator system | |
| 19 | VOE20443758 | [1] | O-ring | UPPER |
| 19 | VOE20443755 | [1] | O-ring | LOWER |
| 20 | VOE16271772 | [1] | Valve | |
| 21 | VOE15075803 | [1] | Grommet | |
| 22 | VOE15075808 | [1] | Bracket | |
| 23 | VOE15075805 | [1] | Grommet | |
| 24 | VOE17228562 | [1] | Heater unit | |
| 25 | VOE15073261 | [1] | Fan | |
| 26 | VOE13943472 | [0002] | Hose clamp | |
| 26 | VOE13946652 | Hose | ||
| 27 | VOE15075807 | [1] | Retainer | |
| 28 | VOE15076813 | [1] | Spare parts kit | |
| 29 | VOE15073805 | [1] | Spare parts kit | |
| 30 | VOE15073801 | [1] | Spare parts kit | |
| 31 | VOE15074185 | [1] | Spare parts kit | |
| 32 | VOE17414915 | [0001] | Support sleeve | |
| 33 | VOE17410366 | [1] | Hose | |
| 34 | VOE11006631 | [1] | Tube | |
| 35 | VOE13943472 | [1] | Hose clamp | |
| 36 | VOE17410388 | [1] | Hose | |
| 37 | VOE11006632 | [1] | Tube | |
| 38 | VOE15111485 | [1] | Plate | |
| 39 | VOE946440 | [2] | Flange screw | |
| 40 | VOE13961191 | [1] | Hydraulic hose | |
| 41 | VOE992082 | [1] | Hose clamp | |
| VOE17231567 | [1] | Kit |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
