423-20-33651 4232033651 Shaft KOMATSU Wheel Loader Spare Parts For WA380-6 WA380-7
- 423-20-33651 4232033651 Shaft KOMATSU Wheel Loader Spare Parts For WA380-6 WA380-7
- Specifiion
| Name | Shaft |
| Parts No | 423-20-33651 4232033651 |
| Machine Model | WA380-6 WA380-7 |
| egory | Drive Shaft, Front Shaft |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
Shafts generally have the core function of transmitting torque or providing stable support for rotating or moving parts. The 423-20-33651 shaft is likely to transfer power between different components in the equipment drive train or other assemblies, enabling connected parts to operate in harmony with the required speed and torque. Or it might act as a guiding shaft to make sure that parts such as gears, pulleys, or other mechanical parts that rely on it can rotate or move precisely
- Compatible models
WHEEL LOADERS WA380 Komatsu
- More other yoke and shaft parts fit for KOMATSU machine
| MY373-8001-00 YOKE |
| WA30, WA40 |
| 1432 122 H1 YOKE - INPUT |
| KOMATSU |
| BW054320 YOKE,JOINT |
| HA250, HA270 |
| 232-71-14251 YOKE |
| GD37 |
| 19 457 R1 YOKE, LH THREAD |
| KOMATSU |
| 566-40-12580 YOKE |
| HD320, HD325, HD460, HD465, HD780, HD785 |
| 124-12-51161 YOKE |
| D41E, D41P |
| 101-11-15110 YOKE,END |
| D20A, D20P, D20PL |
| 427-20-11652 YOKE AND SHAFT A. |
| WA800, WA800L, WA900, WA900L, WD900 |
| 20S-973-2630 YOKE |
| PC20 |
| 04221-41478 YOKE,L.H. THREAD |
| D53P |
| 421-20-11650 YOKE |
| AIR, WA350, WA380, WA400, WA430, WA450, WA470 |

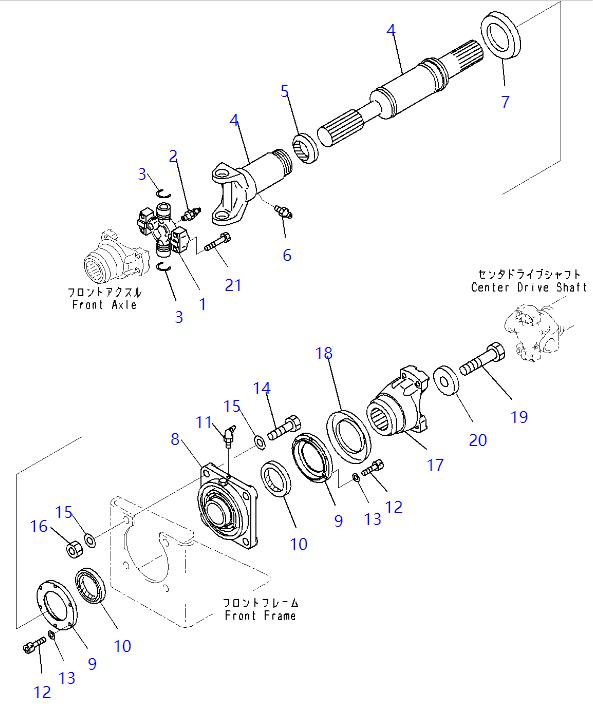

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 423-20-33101 | [1] | Propeller Shaft Komatsu | 21.9 kg. | |
| ["SN: 10001-UP"] |$0. | ||||
| 423-20-33111 | [1] | Propeller Shaft Komatsu | 18.9 kg. | |
| ["SN: 10001-UP"] analogs:["4232033651"] |$1. | ||||
| 1 | 423-20-32621 | [1] | Spider Assembly Komatsu | 2.8 kg. |
| ["SN: 10001-UP"] analogs:["56D2011101"] | ||||
| 2 | 423-20-32631 | [1] | Fitting, Grease Komatsu | 0.05 kg. |
| ["SN: 10001-UP"] analogs:["56D2016300"] | ||||
| 3 | 423-20-12710 | [2] | Ring Komatsu | 0.01 kg. |
| ["SN: 10001-UP"] analogs:["14X1111130", "14X1111230"] | ||||
| 4 | 423-20-33651 | [1] | Yoke and Shaft Komatsu | 18.9 kg. |
| ["SN: 10001-UP"] | ||||
| 5 | 423-20-32740 | [1] | Seal Komatsu | 0.5 kg. |
| ["SN: 10001-UP"] | ||||
| 6 | 423-20-32750 | [1] | Fitting Komatsu | 0.01 kg. |
| ["SN: 10001-UP"] | ||||
| 7. | 423-20-15310 | [1] | Deflector Komatsu | 0.165 kg. |
| ["SN: 10001-UP"] | ||||
| 8 | 423-20-15113 | [1] | Bearing Assembly Komatsu | 9.54 kg. |
| ["SN: 10001-UP"] analogs:["4232015112"] | ||||
| 9. | 423-20-15630 | [2] | Cover Komatsu | 0.75 kg. |
| ["SN: 10001-UP"] | ||||
| 10. | 423-20-15620 | [2] | Seal Komatsu | 0.08 kg. |
| ["SN: 10001-UP"] | ||||
| 11. | 07020-00675 | [1] | Fitting, Grease Komatsu China | 0.011 kg. |
| ["SN: 10001-UP"] analogs:["21D0989220", "37A099G004"] | ||||
| 12. | 01252-40625 | [12] | Bolt, Hexagon Socket Head Komatsu | 0.01 kg. |
| ["SN: 10001-UP"] analogs:["0125270625"] | ||||
| 13. | 01602-20619 | [12] | Washer Komatsu | 0.004 kg. |
| ["SN: 10001-UP"] analogs:["802150506"] | ||||
| 14 | 01010-61660 | [4] | Bolt Komatsu | 0.127 kg. |
| ["SN: 10001-UP"] analogs:["0101031660", "0101081660"] | ||||
| 15 | 01643-31645 | [8] | Washer Komatsu | 0.072 kg. |
| ["SN: 10001-UP"] analogs:["802170005", "0164301645"] | ||||
| 16 | 01580-01613 | [4] | Nut Komatsu | 0.03 kg. |
| ["SN: 10001-UP"] | ||||
| 423-20-43030 | [1] | Coupling Assembly Komatsu China | ||
| ["SN: 10001-UP"] |$18. | ||||
| 19 | 01011-62420 | [1] | Bolt Komatsu | 0.531 kg. |
| ["SN: 10001-UP"] analogs:["0101182420"] | ||||
| 20 | 423-20-13520 | [1] | Holder Komatsu | 0.54 kg. |
| ["SN: 10001-UP"] | ||||
| 21 | 01050-61250 | [4] | Bolt Komatsu | 0.061 kg. |
| ["SN: 10001-UP"] |
