6156-81-7101 6156-81-7111 Air Cleaner Assy KOMATSU Wheel Loader Spare Parts For WA380 WA430 WA450
- 6156-81-7101 6156-81-7111 Air Cleaner Assy KOMATSU Wheel Loader Spare Parts For WA380 WA430 WA450
- Specifiion
| Name | Air Cleaner Assy |
| Parts No | 6156-81-7101 6156-81-7111 |
| Machine Model | WA380 WA380Z WA430 WA450 WA470 WA480 |
| egory | Engine Related Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
The air cleaner assembly is a crucial part of the engine intake system, responsible for filtering dust, sand, and other contaminants from the air entering the engine. It protects vital components like cylinders, pistons, and piston rings from wear, avoiding issues such as "cylinder scuffing" to ensure the engine runs smoothly, thus extending its service life.
- Compatible models
WHEEL LOADERS WA380 WA380Z WA430 WA450 WA470 WA480 Komatsu
- More other air cleaner parts fit for KOMATSU machine
| 6738-81-7500 AIR CLEANER ASS'Y |
| D61EX, D61PX, HB205, HB215, PC200, PC220, PC270, SAA6D107E, WA250, WA250PZ, WA320, WA320PZ |
| 6204-81-7410 AIR CLEANER ASS'Y |
| CARRIER, PC78MR, PC78US, PC78UU, PC88MR, TRACK |
| 423-T43-1110 AIR CONDITIONER A. |
| WA200, WA300, WA320, WA350, WA400, WA450, WA500, WA600, WA700 |
| 423-T43-1111 AIR CONDITIONER A. |
| 542, 545, GD825A, WA200, WA300, WA320, WA350, WA380, WA400, WA450, WA500, WA600, WF450T, WF600T |
| 22U-979-1720 AIR CONDITIONER A. |
| CD110R, GD555, GD655, GD675, PC128US, PC138, PC138US, PC228, PC228US, PC308, PC78MR, PC78US, PC78UU |
| 232-64-11221 AIR CLEANER ASS'Y |
| GD28AC, GD30, GD300A, GD31, GD31RC, GD37, GD405A, GD505A, GD623A, NH |
| 6206-83-7500 AIR CLEANER ASS'Y |
| PC100, PC100L, PC100N, PC120, PC120SC, PC130, PC150LGP, S4D102E |
| 23B-806-X210 AIR BRAKE A GROUP |
| GD623A, GD663A |
| 41E-35-11680 AIR DRYER ASS'Y |
| HD255, HD325, WA600, WA700, WD600 |
| 232-61-11221 AIR CLEANER ASS'Y |
| GD37 |
| 235-44-11771 AIR DRYER ASS'Y,(DR-31) |
| GD505A, GD521A, GD605A, GD825A, GH320 |
| 426-T43-1110 AIR CONDITIONER A. |
| WA500, WA600, WA700, WA800, WA900 |
- alog parts list

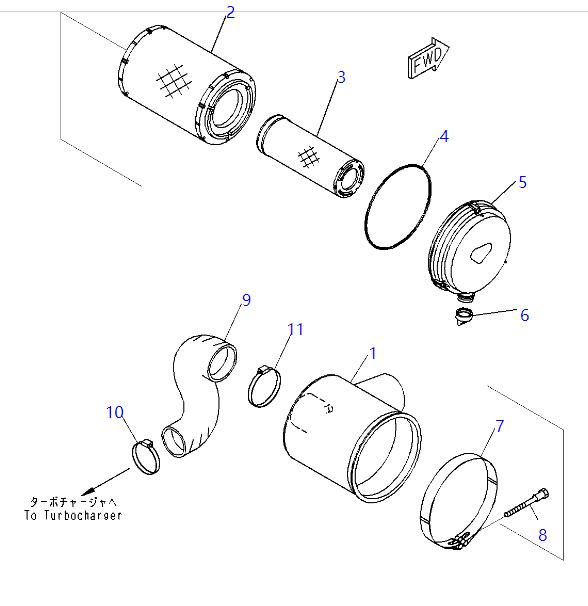

| Pos. | Part No | Qty | Parts name | Comments |
| 6156-81-7101 | [1] | Air Cleaner Assembly Komatsu | 5.8 kg. | |
| ["SN: 65949-UP"] analogs:["6156817111"] |$0. | ||||
| 1. | 6156-81-7111 | [1] | Body Komatsu | 5.8 kg. |
| ["SN: 65949-UP"] analogs:["6156817101"] | ||||
| 1. | 600-185-5100 | [1] | Element Assembly Komatsu China | 0.9 kg. |
| ["SN: 65949-UP"] analogs:["6001855120"] | ||||
| 2 | 600-185-5110 | [1] | Element Komatsu China | 3.135 kg. |
| ["SN: 65949-UP"] analogs:["6001855100"] | ||||
| 4 | 600-184-1570 | [1] | O-ring Komatsu | 0.01 kg. |
| ["SN: 65949-UP"] | ||||
| 5. | 600-184-1510 | [1] | Cover Assembly Komatsu | 1.176 kg. |
| ["SN: 65949-UP"] | ||||
| 6. | 600-184-1350 | [1] | Valve, Vaquator Komatsu | 0.027 kg. |
| ["SN: 65949-UP"] analogs:["6008141350"] | ||||
| 7 | 6151-11-4840 | [1] | Band Komatsu | 0.75 kg. |
| ["SN: 65949-UP"] | ||||
| 6691-21-6550 | [1] | Pin Komatsu | 0.101 kg. | |
| ["SN: 65949-UP"] |$9. | ||||
| 6691-21-6560 | [1] | Pin, With Thread Komatsu China | ||
| ["SN: 65949-UP"] |$10. | ||||
| 8 | 6643-11-4641 | [1] | Bolt Komatsu | 0.09 kg. |
| ["SN: 65949-UP"] | ||||
| 9 | 423-01-42110 | [1] | Hose Komatsu China | |
| ["SN: 65949-UP"] | ||||
| 10 | 07299-00120 | [1] | Clamp Komatsu | 0.116 kg. |
| ["SN: 65949-UP"] analogs:["6162144750"] | ||||
| 11 | 07299-00145 | [1] | Clamp Komatsu | 0.12 kg. |
| ["SN: 65949-UP"] |
