31Y1-30840 Band Assy HYUNDAI Excavator Spare Parts Fitting For R290LC7A R300LC7 R305LC7
- 31Y1-30840 Band Assy HYUNDAI Excavator Spare Parts Fitting For R290LC7A R300LC7 R305LC7
- Specifiion
| Name | Band Assy |
| Parts No | 31Y1-30840 |
| Machine Model | R290LC7A R300LC7 R305LC7 |
| egory | Arm Cylinder |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
It can be inferred that the 31Y1 - 30840 may also be a similar fuel tank strap assembly or a band - type assembly for other components, which is used to fix or support relevant parts to ensure their stable operation and positioning during the vehicle's operation.
- Compatible models
7-SERIES CRAWLER EXCAVATOR R290LC7A R300LC7 R305LC7
9-SERIES CRAWLER EXCAVATOR R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH R520LC9 Hyundai
- More other band parts fit for HYUNDAI machine
| 31Y1-35410 BAND SUB ASSY |
| HX480L, HX520L, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| 31Y1-26500 BAND ASSY-LH |
| R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S |
| 31Y1-26510 BAND ASSY-RH |
| R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S |
| 31Y1-26520 BAND SUB ASSY-LH |
| R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S, RD510LC-7 |
| 31Y1-26530 BAND SUB ASSY-RH |
| R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S, RD510LC-7 |
| 31Y1-26720 BAND ASSY |
| R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S, R800LC-9, R800LC7A, RD510LC-7 |
| 31Y1-26730 BAND SUB ASSY |
| HX480L, HX520L, R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S, R800LC-9, R800LC7A, RD510LC-7 |
| 31Y1-26501 BAND ASSY-LH |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S, RD510LC-7 |
| 31Y1-26511 BAND ASSY,RH |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S, RD510LC-7 |
| 31Y1-30871 BAND ASSY |
| R290LC9, R300LC9A, R300LC9S, R300LC9SH |
| 31Y1-30891 BAND ASSY |
| R290LC9, R300LC9A, R300LC9S, R300LC9SH |
| 31Y1-26521 BAND SUB ASSY-LH |
| HX480L, HX520L, R480C9MH, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| 31Y1-30830 BAND SUB ASSY |
| HX300L, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R520LC9 |
| 31Y1-30820 BAND ASSY-R |
| R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R520LC9 |
| 31Y1-15515 BAND SUB ASSY |
| R290LC7, R290LC7A, R300LC7, R305LC7 |
| 31Y1-15505 BAND ASSY |
| R290LC7, R290LC7A, R300LC7, R305LC7 |
| 31YC-31220 BAND |
| R290LC7, R290LC7H, R305LC7, R320LC7, R320LC7A |
| 31Y1-15510 BAND SUB ASS'Y |
| R290LC7, R290LC7H, R305LC7 |
| 31Y1-15500 BAND ASSY |
| R290LC7, R290LC7H, R305LC7 |
| 31Y1-21935 BAND SUB ASSY |
| R290LC7, R290LC7A, R300LC7, R305LC7 |
| 31Y1-21926 BAND ASSY-B |
| R290LC7, R290LC7A, R300LC7, R305LC7 |
| 31Y1-21925 BAND ASSY-B |
| R290LC7, R290LC7A, R305LC7 |
| 31Y1-15015 BAND ASSY-R |
| R290LC7, R290LC7A, R300LC7, R305LC7 |
| 31Y1-21930 BAND SUB ASS'Y |
| R290LC7, R290LC7A, R290LC7H, R305LC7 |

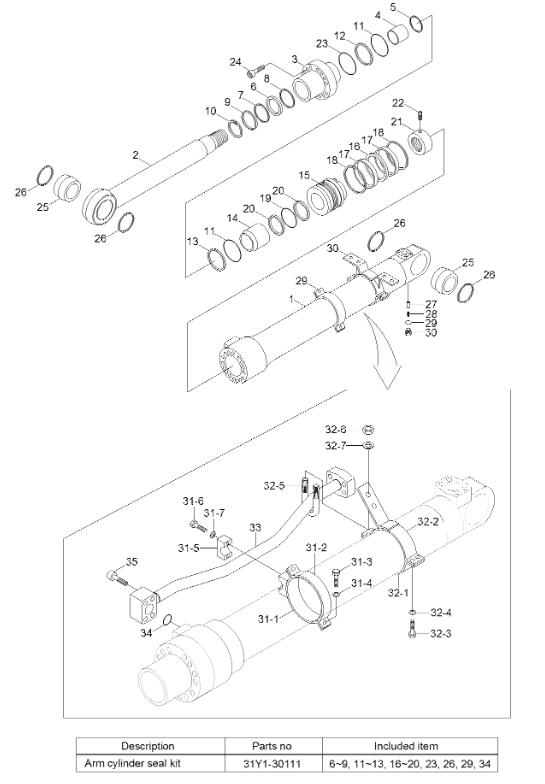

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31N8-50139 | [1] | ARM CYLINDER ASSY | |
| *-1. | 31Y1-34350 | [1] | ARM CYL SUB ASSY | WITHOUT PIPE |
| 1 | 31Y1-34360 | [1] | TUBE ASSY | |
| 2 | 31Y1-34380 | [1] | ROD ASSY | |
| 3 | 31Y1-34130 | [1] | GLAND | |
| 4 | S732-110045 | [1] | BUSHING-DD2 | |
| 5 | Y191-117000 | [1] | RING-SNAP | |
| K6. | Y220-110013 | [1] | SEAL-ROD | |
| K7. | Y180-110020 | [1] | RING-BACK UP | |
| K8. | Y240-110012 | [1] | RING-BUFFER | |
| K9. | Y110-110011 | [1] | WIPER-DUST | |
| 10 | Y190-126000 | [1] | RING-SNAP | |
| K11. | 31YC-99H70 | [2] | O-RING | |
| K12. | S641-140002 | [1] | RING-BACK UP | |
| K13. | 31YC-BM140A | [1] | RING-BACK UP | |
| 14 | 31YC-28010 | [1] | RING-CUSHION | |
| 15 | 31Y1-34151 | [1] | PISTON | |
| K16. | Y420-150000 | [1] | SEAL-PISTON | |
| K17. | Y310-150003 | [2] | RING-WEAR | |
| K18. | Y440-150202 | [2] | RING-DUST | |
| K19. | S632-085004 | [1] | O-RING | |
| K20. | 31YC-CG085 | [2] | RING-BACK UP | |
| 21 | 31YC-68060 | [1] | NUT-LOCK | |
| 22 | S114-100164 | [1] | SCREW-SET | |
| K23. | S632-145004 | [1] | O-RING | |
| 24 | S109-180704 | [15] | BOLT-SOCKET | |
| 25 | 31YC-11161 | [2] | BUSHING-PIN | |
| K26. | Y000-090000 | [4] | SEAL-DUST | |
| K27. | 31YC-2A070 | [1] | VALVE-CHECK | |
| 28 | 31YC-99071 | [1] | SPRING-COIL | |
| K29. | S631-014004 | [1] | O-RING | |
| 30 | P220-110103 | [1] | PLUG-HEX | |
| 31 | 31Y1-30820 | [1] | BAND ASSY-R | |
| 31-1. | 31Y1-30830 | [1] | BAND SUB ASSY | |
| 31-2. | 31YC-31420 | [1] | BAND | |
| 31-3. | S015-120452 | [2] | BOLT-HEX | |
| 31-4. | S411-120002 | [2] | WASHER-SPRING | |
| 31-5. | 31YC-37040 | [1] | CLAMP-PIPE | |
| 31-6. | S015-120452 | [2] | BOLT-HEX | |
| 31-7. | S411-120002 | [2] | WASHER-SPRING | |
| 32 | 31Y1-30840 | [1] | BAND ASSY-B | |
| 32-1. | 31Y1-30850 | [1] | BAND SUB ASSY | |
| 32-2. | 31Y1-30860 | [1] | BAND SUB ASSY | |
| 32-3. | S015-120452 | [2] | BOLT-HEX | |
| 32-4. | S411-120002 | [2] | WASHER-SPRING | |
| 32-5. | S070-053442 | [1] | U-BOLT | |
| 32-6. | S205-101002 | [2] | NUT-HEX | |
| 32-7. | S411-100002 | [2] | WASHER-SPRING | |
| 33 | 31Y1-30911 | [1] | PIPE ASSY-R | |
| K34. | Y171-024004 | [1] | O-RING | |
| 35 | S107-120554 | [4] | BOLT-SOCKET | |
| K. | 31Y1-30111 | [1] | SEAL KIT | STD, SEE ILLUST |
