6251-71-4112 6251-71-4122 Tube KOMATSU Excavator Spare Parts For SAA6D125E PC400 PC450
- 6251-71-4112 6251-71-4122 Tube KOMATSU Excavator Spare Parts For SAA6D125E PC400 PC450
- Specifiion
| Name | Tube |
| Parts No | 6251-71-4112 6251-71-4122 |
| Machine Model | PC400 PC450 WA470 WA480 |
| egory | Fuel Supply Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Functions
These tubes are probably hydraulic tubes or fuel tubes. Komatsu genuine tubes are designed, engineered, and manufactured in accordance with the Komatsu Engineering Standard (KES), which in many CAASEs exceeds the requirements of other international standards.
They have features such as superior hardness and depth, with the outer section having anti-abrasion and flame-resistant qualities. The selection and qualifiion of tubes and their fittings are based on system pressure specifiions to ensure safety and quality, avoiding issues like bursting or loosened fittings.
- Compatible models
DUMP TRUCKS HM300
EXCAVATORS PC400 PC450
WHEEL LOADERS WA470 WA480 Komatsu
- More other tube parts fit for KOMATSU machine
| 203-60-31160 TUBE |
| AIR, PC130, PC138, PC138US, PC160, PC190, PC200, PC220, PC228, PC228US, PC240, PC270, PC290, PC300, PC350, PC400, PC450, PRESSURE, RAIN, WINDOW |
| 707-86-12560 TUBE,R.H. |
| PC400, PC450, PC550 |
| 6251-71-5490 TUBE |
| HM300, PC400, PC450, SAA6D125E, WA470, WA480 |
| 6251-71-5112 TUBE, FUEL SUPPLY, NO. 1 |
| HM300, PC400, PC450, SAA6D125E, WA470, WA480 |
| 421-877-3340 TUBE,R.H. |
| WA450, WA470, WA480 |
| 421-43-41120 TUBE |
| WA470, WA480 |
| 6251-61-8230 TUBE, INLET |
| PC400, PC450, SAA6D125E |
| 423-60-35520 TUBE |
| FRONT, WA380, WA380Z, WA450, WA470, WA480 |
| 421-877-4550 TUBE, LHS |
| WA480 |
| 419-43-27260 TUBE |
| WA300, WA300L, WA320 |
| 232-979-5410 TUBE |
| GD37 |
| 232-979-5480 TUBE |
| GD37 |
| 417-46-36250 TUBE |
| BATTERY, WA200, WA200L, WA200PT, WA200PTL, WA200PZ |
| 363-62-11110 TUBE |
| WA40 |
| 22S-62-13891 TUBE |
| BP500 |
| 209-62-17291 TUBE |
| PC650 |
| 8234-62-2160 TUBE |
| BR580JG |
| 566-52-43142 TUBE |
| HD320, HD325 |
| 707-86-66321 TUBE,R.H. |
| PC200 |
| 41H-62-13361 TUBE,L.H. |
| WR11, WR11SS |
| 198-03-71960 TUBE |
| D475A, D475ASD |

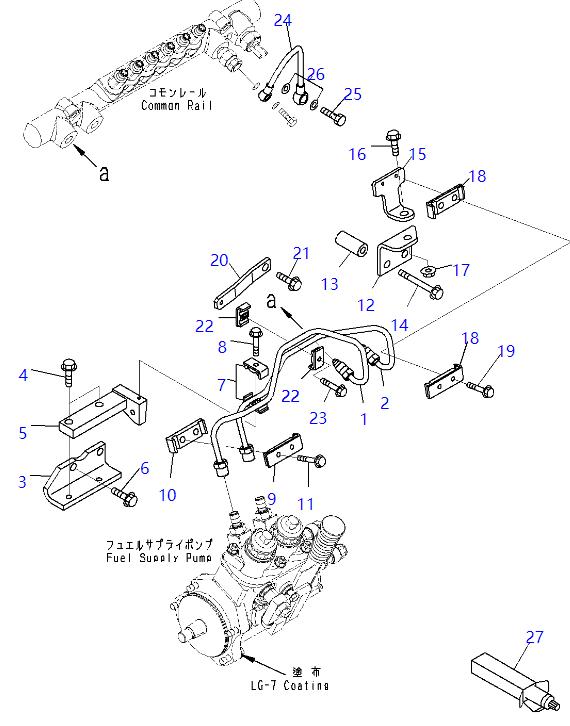

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6251-71-4112 | [1] | Tube, Supply Komatsu | 0.242 kg. |
| ["SN: 567555-UP"] | ||||
| 2 | 6251-71-4122 | [1] | Tube, Supply Komatsu | 0.235 kg. |
| ["SN: 567555-UP"] | ||||
| 3 | 6156-71-5281 | [1] | Bracket Komatsu | 0.652 kg. |
| ["SN: 567555-UP"] | ||||
| 4 | 01435-01025 | [2] | Bolt Komatsu | 0.192 kg. |
| ["SN: 567555-UP"] analogs:["0143521025"] | ||||
| 5 | 6251-71-5830 | [1] | Bracket Komatsu China | |
| ["SN: 567555-UP"] | ||||
| 7 | 6162-75-5820 | [2] | Clamp Komatsu | 0.1 kg. |
| ["SN: 567555-UP"] | ||||
| 8 | 01435-00630 | [1] | Bolt Komatsu | 0.064 kg. |
| ["SN: 567555-UP"] | ||||
| 9 | 6217-71-5211 | [1] | Clamp Komatsu | 0.000 kg. |
| ["SN: 567555-UP"] | ||||
| 10 | 6217-71-5171 | [1] | Clamp Komatsu | 0.000 kg. |
| ["SN: 567555-UP"] | ||||
| 12 | 6251-71-5820 | [1] | Bracket Komatsu China | |
| ["SN: 567555-UP"] | ||||
| 13 | 6152-51-5520 | [2] | Spacer Komatsu | 0.091 kg. |
| ["SN: 567555-UP"] | ||||
| 14 | 01435-01070 | [2] | Bolt Komatsu | 0.047 kg. |
| ["SN: 567555-UP"] | ||||
| 15 | 6217-71-5281 | [1] | Bracket Komatsu | 0.18 kg. |
| ["SN: 567555-UP"] | ||||
| 17 | 01584-01008 | [1] | Nut Komatsu | 0.01 kg. |
| ["SN: 567555-UP"] | ||||
| 20 | 6251-71-5810 | [1] | Bracket Komatsu China | |
| ["SN: 567555-UP"] | ||||
| 21 | 01435-01045 | [1] | Bolt Komatsu | 0.035 kg. |
| ["SN: 567555-UP"] | ||||
| 24 | 6251-71-5450 | [1] | Tube, Return Komatsu China | |
| ["SN: 567555-UP"] | ||||
| 25 | 07206-31014 | [1] | Bolt, Joint Komatsu | 0.05 kg. |
| ["SN: 567555-UP"] analogs:["R0720631014"] | ||||
| 26 | 07005-01412 | [2] | Seal, Washer Komatsu China | 0.01 kg. |
| ["SN: 567555-UP"] analogs:["1294807H1", "YMR001361", "YM22190140002", "6731715880"] | ||||
| 27 | 09920-00150 | [-2] | Liquid gasket, LG-7, 150G Komatsu | 0.22 kg. |
| ["SN: 567555-UP", "KIT-FLAG: S"] analogs:["TB1207C", "6164214821", "7901299170"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
