11Q9-40242 11Q9-40292 Hose Excavator Spare Parts For HYUNDAI R320LC9 R360LC9 R380LC9DM
- 11Q9-40242 11Q9-40292 Hose Excavator Spare Parts For HYUNDAI R320LC9 R360LC9 R380LC9DM
- Specifiion
| Product name | Hose |
| Part number | 11Q9-40242 11Q9-40292 |
| Model |
R320LC9 R360LC9 R380LC9DM R380LC9MH R430LC9 |
| egory group | Hyundai Excavator Spare Parts |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
- Function
1.Fluid transportation: It could be used to transport various fluids such as coolant, oil, fuel, or brake fluid. For example, radiator hoses are responsible for transporting coolant to and from the engine to regulate its temperature. Oil cooler hoses are used to cool the oil in the engine lubriion system.
2.Vibration absorption and noise reduction: Hoses usually have certain flexibility and can absorb vibrations generated during the operation of the vehicle, reducing the transmission of vibrations and noise. This helps to protect the connected components and improve the comfort of the vehicle operation.
3.Compensation for displacement and deformation: During the operation of the vehicle, due to factors such as temperature changes and mechanical movements, the connected components may have relative displacements and deformations. The hose can compensate for these displacements and deformations to ensure the normal connection and operation of the pipeline system.
- Compatible models
9-SERIES CRAWLER EXCAVATOR R320LC9 R360LC9 R380LC9DM R380LC9MH R430LC9
- More other hose parts applicable for HYUNDAI machine
| P930-042009 HOSE ASSY-ORFS 0X90 |
| 180DE, 250DE, HL757-F, HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX480L, HX520L, R125LCR-9A, R140LC-7, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9... |
| AH001287 HOSE-INLET,WATER |
| HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL730TM-9, HL730TM-9A, HL730TM7, HL730TM7A, HL740-7, HL740-7A, HL740-7S, HL740-9, HL740-9A, HL740-9B, HL740-9S, HL740-9SB, HL740TM-7, HL740TM... |
| P910-162032 HOSE ASSY-ORFS 0X0 |
| HL757-9, HL757TM-9, HW210, R210W9A, R380LC9DM, R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S |
| P910-042060 HOSE ASSY-ORFS 0X0 |
| HL760-7A, HW210, HX140L, HX220L, HX220NL, HX330L, R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W7, R140W7A, R140W9S, R160LC7, R160LC7A, R160LC9S, R170W7, R170W7A, R... |
| X420-042019 HOSE ASSY-SYNFLEX,ORFS |
| HL740-9S, HL740-9SB, HX220L, HX260L, HX380L, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9S, R16-9, R16-9CA, R16-9NH, R160LC9S, R170W9S, R17Z-9A, R17Z-9ACA, R17Z-9ANH, R180LC9S, R... |
| P910-042008 HOSE ASSY-ORFS 0X0 |
| HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX235L, HX260L, HX330L, HX380L, HX430L, HX480L, HX520L, R125LCR-9A, R140LC-7, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R... |
| X420-042011 HOSE ASSY-ORFS 0X90 |
| HX330L, R140LC9, R140LC9A, R140LC9S, R16-9, R16-9CA, R16-9NH, R160LC7A, R160W9A, R17Z-9A, R17Z-9ACA, R17Z-9ANH, R180LC7A, R200W7, R200W7A, R210LC9BC, R210LC9BH, R210W9S, R220NLC9A, R250LC9, R25Z-9A, R... |
| 11L1-3010 HOSE-OVER FLOW |
| HL35C, HW140, HX330L, HX380L, HX430L, R1200-9, R140W9, R140W9A, R170W9, R210W9A, R210W9AMH, R220LC9A, R220NLC9A, R235LCR9, R250LC9A, R300LC9A, R320LC9, R330LC9A, R380LC9A, R430LC9A, R450LC3, R450LC3A,... |
| 11N8-90710 HOSE |
| HL770-9S, HL780-9S, R210LC9, R210LC9BC, R210NLC9, R210W-9, R250LC9, R260LC9S, R290LC9, R290LC9MH, R300LC9S, R300LC9SH, R320LC9, R360LC9, R380LC9MH, R380LC9SH, R390LC9, R430LC9, R430LC9SH, R480LC9S, R5... |
| X410-042062 HOSE ASSY-ORFS 0X45 |
| HX260L |

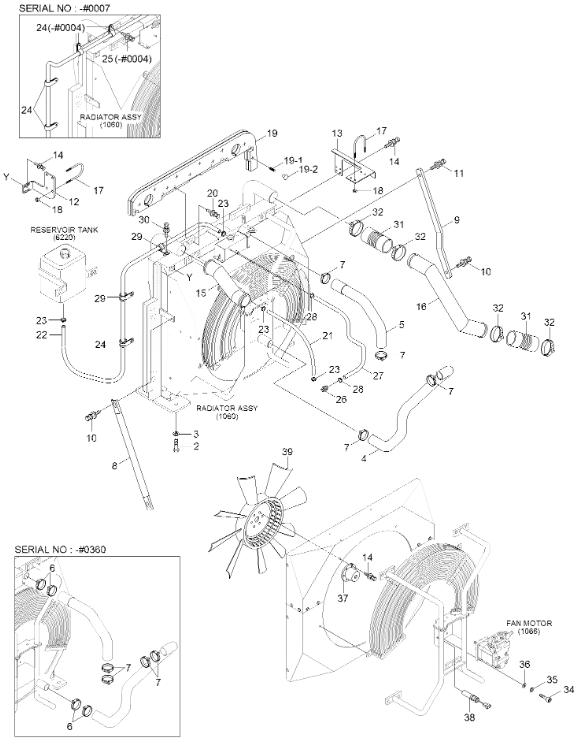

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 2 | S017-16045D | [1] | BOLT-HEX | |
| 3 | S441-160006 | [6] | WASHER-HARDENED | |
| 4 | 11Q9-40292 | [1] | HOSE-LOWER | |
| 5 | 11Q9-40242 | [1] | HOSE-UPPER | |
| 6 | S572-720006 | [4] | CLAMP-HOSE,WIRE TYPE | |
| 7 | S572-750006 | [4] | CLAMP-HOSE,WIRE TYPE | |
| 7 | 11Q4-44300 | [4] | CLAMP | |
| 8 | 11N8-46150 | [1] | STAY | |
| 9 | 11Q9-40710 | [1] | STAY-BAR | |
| 10 | S037-123026 | [3] | BOLT-W/WASHER | |
| 11 | S037-102556 | [1] | BOLT-W/WASHER | |
| 12 | 11Q9-40382 | [1] | BEACKET | |
| 12 | 11Q9-40383 | [1] | BRACKET | |
| 13 | 11Q9-40392 | [1] | BRACKET | |
| 14 | S037-102526 | [8] | BOLT-W/WASHER | |
| 14 | S037-102526 | [14] | BOLT-W/WASHER | |
| 15 | 11Q9-40361 | [1] | PIPE ASSY | |
| 16 | 11Q9-40372 | [1] | PIPE-CAC | |
| 17 | 11N6-43280-DA | [4] | U-BOLT | |
| 18 | S275-12000B | [8] | NUT-SELF LOCKING | |
| 19 | 11Q9-40402 | [1] | SCREEN ASSY | |
| 19 | 11Q9-40403 | [1] | SCREEN ASSY | |
| 19 | 11Q9-40404 | [1] | SCREEN ASSY | |
| 19-1. | 71EM-51590 | [1] | BOLT-STUD | |
| 19-2. | 71EM-51580 | [1] | CAP-STUD BOLT | |
| 20 | S035-082026 | [6] | BOLT-W/WASHER | |
| 21 | 11L1-3010 | [1] | HOSE-OVER FLOW | |
| 21 | 12L1-3011 | [1] | HOSE-AIR VENT | |
| 22 | 11QB-40300 | [1] | HOSE-OVER FLOW | |
| 22 | E111-2504 | [1] | HOSE | |
| 23 | S520-017000 | [4] | CLAMP-HOSE | |
| 23 | S520-015000 | [4] | CLAMP-HOSE,S/DRIVE | |
| 24 | 31L7-10340 | [4] | CLAMP-TUBE INS | |
| 24 | 31L7-10340 | [2] | CLAMP-TUBE INS | |
| 24 | 31L7-10200 | [1] | CLAMP-TUBE | |
| 25 | S035-081556 | [2] | BOLT-W/WASHER | |
| 26 | 14L4-01650 | [1] | CONNECTOR-HOSE | |
| 27 | 11QB-40180 | [1] | HOSE-MAKE UP | |
| 28 | S572-340006 | [2] | CLAMP-HOSE,WIRE TYPE | |
| 29 | 31L7-10190 | [2] | CLAMP-TUBE | |
| 30 | S037-101526 | [1] | BOLT-W/WASHER | |
| 31 | 11Q9-40420 | [1] | HOSE-CAC | |
| 32 | 11N6-20350 | [1] | CLAMP-T/BOLT | |
| 34 | S109-080356 | [4] | BOLT-SOCKET | |
| 35 | S411-080006 | [4] | WASHER-SPRING | |
| 36 | S403-08100B | [4] | WASHER-PLAIN | |
| 37 | 11Q9-60020 | [1] | CONNECTOR | |
| 38 | 21LM-08210 | [1] | SENSOR-SPEED | |
| 39 | 11QA-00041 | [1] | FAN-COOLING(9EA) |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
