11Q9-20020 Intake Hose Excavator Engine Parts Fitiing For HYUNDAI R320LC9 R360LC9
- 11Q9-20020 Intake Hose Excavator Engine Parts Fitiing For HYUNDAI R320LC9 R360LC9
- Specifiion
| Product name | Intake hose |
| Part number | 11Q9-20020 |
| Model |
R320LC9 R360LC9 R380LC9DM R380LC9MH R430LC9 |
| egory group | Hyundai Excavator Engine Parts |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
- Function
1.Fluid transportation: It is likely to be used for transporting various fluids in the vehicle, such as coolant, oil, fuel, or brake fluid. For example, if it is a coolant hose, it is responsible for transporting coolant between the radiator and the engine to maintain the engine's optimal operating temperature; if it is a fuel hose, it is used to deliver fuel from the fuel tank to the engine.
2.Air transmission: It could be an air - intake or exhaust hose. An air - intake hose is used to connect the air filter to the engine's intake manifold, supplying clean air for combustion, while an exhaust hose is part of the exhaust system, guiding exhaust gases from the engine to the exhaust pipe and out of the vehicle.
- Compatible models
9-SERIES CRAWLER EXCAVATOR R320LC9 R360LC9 R380LC9DM R380LC9MH R430LC9
- More other hose parts applicable for HYUNDAI machine
| P930-042009 HOSE ASSY-ORFS 0X90 |
| 180DE, 250DE, HL757-F, HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX480L, HX520L, R125LCR-9A, R140LC-7, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9... |
| AH001287 HOSE-INLET,WATER |
| HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL730TM-9, HL730TM-9A, HL730TM7, HL730TM7A, HL740-7, HL740-7A, HL740-7S, HL740-9, HL740-9A, HL740-9B, HL740-9S, HL740-9SB, HL740TM-7, HL740TM... |
| P910-162032 HOSE ASSY-ORFS 0X0 |
| HL757-9, HL757TM-9, HW210, R210W9A, R380LC9DM, R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S |
| P910-042060 HOSE ASSY-ORFS 0X0 |
| HL760-7A, HW210, HX140L, HX220L, HX220NL, HX330L, R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W7, R140W7A, R140W9S, R160LC7, R160LC7A, R160LC9S, R170W7, R170W7A, R... |
| X420-042019 HOSE ASSY-SYNFLEX,ORFS |
| HL740-9S, HL740-9SB, HX220L, HX260L, HX380L, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9S, R16-9, R16-9CA, R16-9NH, R160LC9S, R170W9S, R17Z-9A, R17Z-9ACA, R17Z-9ANH, R180LC9S, R... |
| P910-042008 HOSE ASSY-ORFS 0X0 |
| HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX235L, HX260L, HX330L, HX380L, HX430L, HX480L, HX520L, R125LCR-9A, R140LC-7, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R... |
| X420-042011 HOSE ASSY-ORFS 0X90 |
| HX330L, R140LC9, R140LC9A, R140LC9S, R16-9, R16-9CA, R16-9NH, R160LC7A, R160W9A, R17Z-9A, R17Z-9ACA, R17Z-9ANH, R180LC7A, R200W7, R200W7A, R210LC9BC, R210LC9BH, R210W9S, R220NLC9A, R250LC9, R25Z-9A, R... |
| 11L1-3010 HOSE-OVER FLOW |
| HL35C, HW140, HX330L, HX380L, HX430L, R1200-9, R140W9, R140W9A, R170W9, R210W9A, R210W9AMH, R220LC9A, R220NLC9A, R235LCR9, R250LC9A, R300LC9A, R320LC9, R330LC9A, R380LC9A, R430LC9A, R450LC3, R450LC3A,... |
| 11N8-90710 HOSE |
| HL770-9S, HL780-9S, R210LC9, R210LC9BC, R210NLC9, R210W-9, R250LC9, R260LC9S, R290LC9, R290LC9MH, R300LC9S, R300LC9SH, R320LC9, R360LC9, R380LC9MH, R380LC9SH, R390LC9, R430LC9, R430LC9SH, R480LC9S, R5... |
| X410-042062 HOSE ASSY-ORFS 0X45 |
| HX260L |

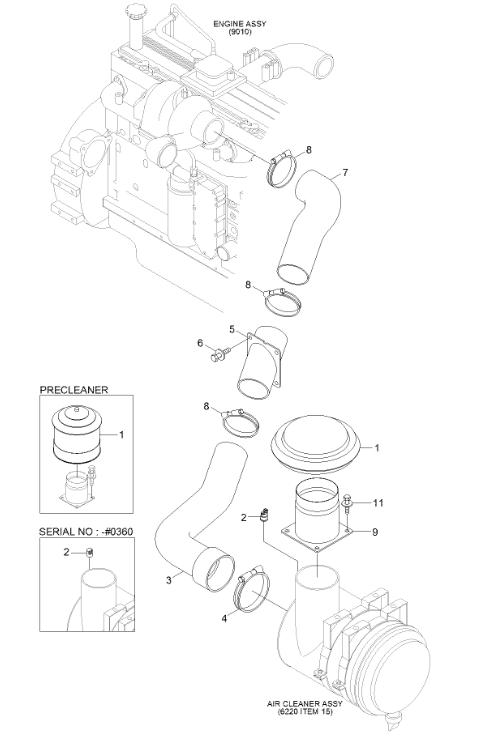

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 11Q8-22040 | [1] | CAP-RAIN | STD |
| 1 | 11NB-20050 | [1] | PRECLEANER | OPTIION |
| 2 | 11FG-20110 | [1] | SENSOR-AIR CLEANER | |
| 2 | 11Q4-21010 | [1] | INDIOR | |
| 3 | 11Q9-20040 | [1] | HOSE-INTAKE(A) | |
| 4 | 11LB-40190 | [1] | CLAMP-HOSE | |
| 5 | 11Q9-20011 | [1] | PIPE-CONNECT | |
| 6 | S037-102526 | [4] | BOLT-W/WASHER | |
| 6 | S037-122526 | [4] | BOLT-W/WASHER | |
| 7 | 11Q9-20020 | [1] | HOSE-INTAKE(B) | |
| 8 | 11LB-40310 | [3] | CLAMP-T BOLT | |
| 9 | 11Q8-20340 | [1] | PIPE-CONNECT | |
| 9 | 11Q8-20360 | [1] | PIPE-CONNECT | |
| 11 | 71Q6-50025 | [4] | BOLT-W/WASHER |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
