1-13779011-0 1137790110 Seal Ring HITACHI Excavator Spare Parts For ZX450-3 ZX470-5B
- 1-13779011-0 1137790110 Seal Ring HITACHI Excavator Spare Parts For ZX450-3 ZX470-5B
- Specifiion
| Name | Seal Ring |
| Parts No | 1-13779011-0 1137790110 |
| Machine Model | ZX330-3 ZX350K-3 ZX360LC-3-HCMC ZX400LCH-3 |
| egory | Thermostat And Housing |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
Sealing Principle: The Hitachi 1-13779011-0 seal ring realizes the sealing function through elastic deformation. After being installed in the groove, it is axially or radially compressed, and the material produces a controllable deformation. When the contact pressure on the sealing contact surface is greater than the internal pressure of the medium to be sealed, leakage will not occur. For example, in the hydraulic system of Hitachi excavators, it can prevent hydraulic oil from leaking, ensuring the normal operation of the system.
- Compatible models
470G LC 600C LC JD 670G LC 870G LC FV30 LX300-7 TL1100-3 ZR260HC ZX1800K-3 ZX450 ZX450-3 ZX450-3F ZX450H ZX450H-HHE ZX450LC-3-DH ZX450LC-3-M ZX460LCH-AMS ZX460LCH-HCME ZX470-5B ZX470-5B-LD ZX470-5G ZX470H-3 ZX470H-3F ZX470H-5B ZX470H-5B-LD ZX470H-5G ZX470LC-5B ZX470LC-5G ZX470LCH-5B ZX470LCH-5G ZX470LCR-5B ZX470LCR-5G ZX470R-3 ZX470R-3F ZX470R-5B ZX470R-5G ZX480LCK-3 ZX480MT ZX480MTH ZX500LC ZX500LC-3 ZX500LC-3F ZX500LCH ZX520LCH-3 ZX520LCH-3F ZX520LCR-3 ZX520LCR-3F ZX600 ZX650H ZX650LC-3 ZX650LC-3-DH ZX650LC-3-M ZX670LC-5B ZX670LCH-3 ZX670LCH-5B ZX670LCR-5B ZX800 ZX850-3 ZX850-3F ZX850H ZX850LC-3-M ZX870-5B ZX870-5B-LD ZX870-5G ZX870H-3 ZX870H-3F ZX870H-5B ZX870H-5B-LD ZX870H-5G ZX870LC-5B ZX870LC-5G ZX870LCH-5B ZX870LCH-5G ZX870LCR-5B ZX870LCR-5G ZX870R-3 ZX870R-3F ZX870R-5B Hitachi
- More other ring parts fit for HITACHI machine
| 0420307 RING |
| EX1200-5, EX1200-5C, EX1200-5D, EX1200-6, EX1800-3, EX1900-5, EX1900-6, EX400-3, EX400-3C, EX400-5, EX450H-5, EX550, EX550-5 JPN, EX600H-3 JPN, EX600H-5 JPN, EX750-5, EX800H-5, TL1100-3, ZX1000K-3, ZX... |
| 0686706 RING;BACK-UP |
| CHR70, EX100-5, EX100-5 JPN, EX100M-5, EX120-5, EX120-5 JPN, EX120-5HG, EX120-5LV JPN, EX120-5X, EX120-5Z, EX120SS-5, EX130H-5, EX130H-5 JPN, EX130K-5, EX135UR, EX135UR-5, EX135US-5, EX135USR, EX135US... |
| 0972106 RING;SLIDE |
| ZX1000K-3, ZX250K-3, ZX250LC-5B, ZX250LCN-5B, ZX330-3, ZX330-5G, ZX330LC-5G, ZX350-3-AMS, ZX350H-3, ZX350H-5G, ZX350K-3, ZX350K-5G, ZX350LC-3-HCME, ZX350LC-5B, ZX350LCH-5G, ZX350LCK-5G, ZX350LCN-5B, Z... |
| 0460004 RING;SLIDE |
| EX400, EX400-3, EX400-3C, EX400-5, EX450H-5, EX550, EX550-5 JPN, EX600H-3 JPN, EX600H-5 JPN, ZX450, ZX450H, ZX450H-HHE, ZX460LCH-AMS, ZX460LCH-HCME, ZX480MT, ZX480MTH, ZX500LC, ZX500LCH, ZX500W |
| 0396210 RING;RETAINING |
| EX50UR, EX55UR, EX55UR-3, EX58MU, ZX200-3, ZX225USR-3, ZX240-3, ZX330-3, ZX40U-2, ZX40U-3, ZX40U-3U, ZX450-3, ZX48U-3, ZX48U-3F, ZX50U-2, ZX50U-3, ZX50U-3F, ZX50U-3U, ZX52U-3, ZX52U-3F, ZX55UR, ZX55UR... |
| 0417605 RING;SLIDE |
| EX1100, EX1100-3, EX2500, EX2500-5, EX2500-6, EX2600-6LD, EX3500, EX3600-5, EX3600-6, EX3600E-6, EX400, EX400-3, EX400-3C, EX400-5, EX450H-5, EX550, EX550-5 JPN, EX600H-3 JPN, EX600H-5 JPN, EX700, EX7... |
| 0352712 RING;SLIDE |
| EX400, EX400-3, EX400-5, EX450H-5, ZX450, ZX450-3, ZX450-3F, ZX450H, ZX450LC-3-DH, ZX460LCH-AMS, ZX460LCH-HCME, ZX470H-3, ZX470H-3F, ZX470R-3, ZX470R-3F, ZX480MT, ZX480MTH, ZX500LC-3, ZX500LC-3F, ZX52... |
| 1141491840 RING; SEAL,EXH MANIF |
| 330C LC JD, 370C JD, 470G LC, CD1500, CD2000, CX650-2, EX300-2, EX300-3, EX300-3C, EX300-3HHE, EX300-5, EX300-5HHE, EX300LCLL-5, EX310H-3C, EX345USR(LC), EX350H-5, EX350H-5HHE, EX350K-5, EX370-5M, EX3... |
| 0450508 RING;SLIDE |
| EX400-3, EX400-5, EX450H-5, EX550-5 JPN, EX600H-5 JPN, EX700, EX750-5, EX800H-5, ZX450, ZX450H, ZX450H-HHE, ZX460LCH-AMS, ZX460LCH-HCME, ZX480MT, ZX480MTH, ZX500LC, ZX500LCH, ZX600, ZX650H, ZX650LC-3 |

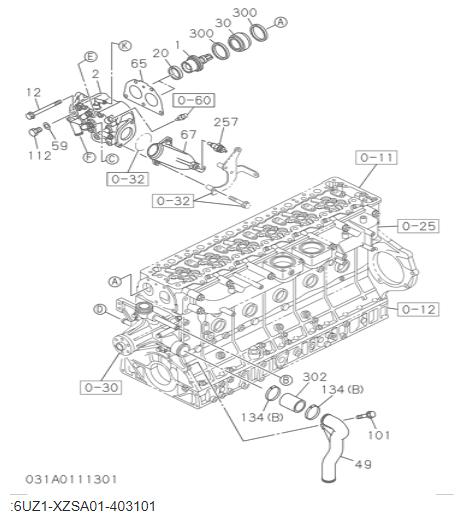

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 1137700891 | [2] | THERMOSTAT | 82�C |
| 2 | 8981425500 | [1] | HOUSING; THERMOSTAT | |
| 12 | 281560120 | [5] | BOLT; HSG | M10X120 FLANGE |
| 20 | 1137790110 | [2] | RING; SEAL | |
| 30 | 8981587010 | [2] | SPACER | |
| 49 | 8981344030 | [1] | PIPE; WATER OUTLET | |
| 59 | 1096301410 | [1] | GASKET; PLUG | ID=14.2 OD=25<BR>ALSO INCLUDED IN GASKET SET(ENGINE). |
| 65 | 8980890910 | [1] | GASKET; HSG TO HD | ALSO INCLUDED IN GASKET SET(ENGINE). |
| 67 | 8981344040 | [1] | DUCT; WATER,OUTLET | |
| 79 | 1097041020 | [1] | CLIP; RUBBER HOSE | ID=14 |
| 101 | 281512350 | [2] | BOLT; PIPE | M12X35 FLANGE |
| 112 | 8980429440 | [1] | PLUG | M14X9 |
| 134(A). | 1097071320 | [2] | CLIP; RUBBER HOSE | ID=26-41.5 |
| 134(B). | 8941267710 | [2] | CLIP; RUBBER HOSE | ID=58-79 |
| 134(C). | 8971775810 | [30] | CLIP; RUBBER HOSE | ID=25 |
| 139(A). | 35663000 | [3] | HOSE; RUBBER,PIPE TO COOLER | L=65 S.B.L=3000 |
| 139(B). | 8976040630 | [10] | HOSE; RUBBER,PIPE TO COOLER | |
| 139(C). | 8976084730 | [2] | HOSE; RUBBER,PIPE TO COOLER | |
| 139(D). | 8981231610 | [1] | HOSE; RUBBER,PIPE TO COOLER | |
| 193 | 8942073030 | [1] | CAP; RUBBER | ID=9.0 |
| 257 | 8971256011 | [1] | SWITCH; WARNING,OVER HEAT | |
| 292 | 1096800240 | [1] | COCK; AIR | |
| 300 | 8980881010 | [4] | GASKET; SPACER | ALSO INCLUDED IN GASKET SET(ENGINE). |
| 302 | 1093607320 | [1] | HOSE; RAD,INL |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
