8-98205844-0 Gasket ISUZU Excavator Spare Parts Fitting For ZX450-3 ZX870-5G 6WG1
- 8-98205844-0 Gasket ISUZU Excavator Spare Parts Fitting For ZX450-3 ZX870-5G 6WG1
- Specifiion
| Name | Gasket |
| Parts No | 8-98205844-0 |
| Machine Model | ZX470-3 ZX450-3 ZX870-5G 6WG1 |
| egory | Thermostat Housing And Mount |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
1.Sealing: Its main role is to be sandwiched between two mechanical components to enhance the sealing effect and prevent the leakage of liquids (such as oil, water) or gases. For example, it can be used between the engine cylinder block and the cylinder head to ensure that there is no leakage of coolant or combustion gas, which is essential for the normal operation of the engine.
2.Compensation for Surface Imperfections: Since the surfaces of mechanically processed components are not perfectly flat, the gasket can fill the uneven gaps, playing a role in pressure resistance and corrosion resistance, and compensating for the gaps caused by thermal expansion and contraction of pipelines, thereby ensuring a reliable seal.
3.Protecting Components: The gasket can also expand the contact area, reduce pressure, and protect screws and connected components from damage. For instance, in a bolt - nut connection, it can prevent the components and screws from being damaged due to excessive pressure.
- Compatible models
EXCAVATOR 470GLC Isuzu
- More other gasket parts fit for ISUZU machine
| T211051 Gasket |
| 595, 180, 70, 70D, 75C, 75D, 110, 790D, 210C, 790ELC, 750, 792DLC, 800C, 80C, 415B, 790, 85D, 870GLC, 75G, 85G, 892, 892DLC, 310C, 992D, 992ELC, 225CLC, 315CH, 120, 120C, 410B, 120D, 410C, 135D, 670A,... |
| 8976038890 Gasket |
| 245GLC, 450DLC, 650DLC, 850DLC, 670GLC, 190GW, 6UZ1XZSA-01, 230GW, 470GLC, 870GLC, 6WG1XZSA-02 |
| 1096390340 Gasket |
| 220DW, 245GLC, 225DLC, 135D, 450DLC, 650DLC, 135G, 850DLC, 670GLC, 190GW, 6UZ1XZSA-01, 230GW, 470GLC, 870GLC, 6WG1XZSA-02 |
| 9095662260 Gasket |
| 470GLC, 6UZ1XZSA-01, 135D, 225DLC, 220DW |
| 8941445880 Gasket |
| 35ZTS, 800C, 50C, 27C, 75D, 210, 50ZTS, 27ZTS, 85D, 35C, 470GLC |
| 1096234640 Gasket |
| 6UZ1XZSA-01, 470GLC |
| 1096235700 Gasket |
| 245GLC, 6UZ1XZSA-01, 230GW, 470GLC, 190GW |
| 8976032820 Gasket |
| 6UZ1XZSA-01, 6WG1XZSA-02, 670GLC, 470GLC, 870GLC |
| 8976084230 Gasket |
| 6UZ1XZSA-01, 6WG1XZSA-02, 670GLC, 470GLC, 870GLC |

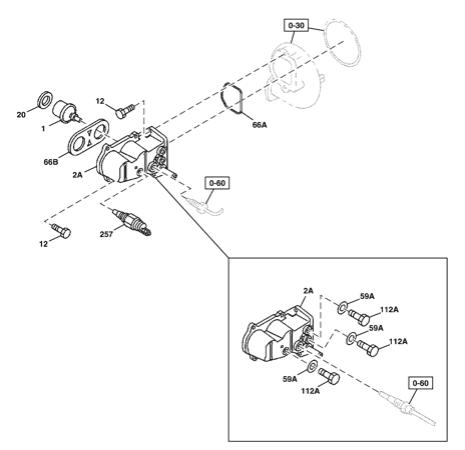

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 1137700891 | [2] | THERMOSTAT | 82�C |
| 2 | 8981425500 | [1] | HOUSING; THERMOSTAT | |
| 12 | 281560120 | [5] | BOLT; HSG | M10X120 FLANGE |
| 20 | 1137790110 | [2] | RING; SEAL | |
| 30 | 8981587010 | [2] | SPACER | |
| 49 | 8981344030 | [1] | PIPE; WATER OUTLET | |
| 59 | 1096301410 | [1] | GASKET; PLUG | ID=14.2 OD=25<BR>ALSO INCLUDED IN GASKET SET(ENGINE). |
| 65 | 8980890910 | [1] | GASKET; HSG TO HD | ALSO INCLUDED IN GASKET SET(ENGINE). |
| 67 | 8981344040 | [1] | DUCT; WATER,OUTLET | |
| 79 | 1097041020 | [1] | CLIP; RUBBER HOSE | ID=14 |
| 101 | 281512350 | [2] | BOLT; PIPE | M12X35 FLANGE |
| 112 | 8980429440 | [1] | PLUG | M14X9 |
| 134(A). | 1097071320 | [2] | CLIP; RUBBER HOSE | ID=26-41.5 |
| 134(B). | 8941267710 | [2] | CLIP; RUBBER HOSE | ID=58-79 |
| 134(C). | 8971775810 | [30] | CLIP; RUBBER HOSE | ID=25 |
| 139(A). | 35663000 | [3] | HOSE; RUBBER,PIPE TO COOLER | L=65 S.B.L=3000 |
| 139(B). | 8976040630 | [10] | HOSE; RUBBER,PIPE TO COOLER | |
| 139(C). | 8976084730 | [2] | HOSE; RUBBER,PIPE TO COOLER | |
| 139(D). | 8981231610 | [1] | HOSE; RUBBER,PIPE TO COOLER | |
| 193 | 8942073030 | [1] | CAP; RUBBER | ID=9.0 |
| 257 | 8971256011 | [1] | SWITCH; WARNING,OVER HEAT | |
| 292 | 1096800240 | [1] | COCK; AIR | |
| 300 | 8980881010 | [4] | GASKET; SPACER | ALSO INCLUDED IN GASKET SET(ENGINE). |
| 302 | 1093607320 | [1] | HOSE; RAD,INL |
