708-1U-13450 7081U13450 Rocker Cam KOMATSU Excavator Spare Parts For PC600 PC650 PC700
- 708-1U-13450 7081U13450 Rocker Cam KOMATSU Excavator Spare Parts For PC600 PC650 PC700
- Specifiion
| Name | Rocker Cam |
| Parts No | 708-1U-13450 7081U13450 |
| Machine Model | PC600 PC650 PC700 |
| Category | Cooling Fan Drive Piping, Fan Pump |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
| 1.The Rocker Cam holds and tilts the piston shoe plate (swash plate). |
| 2.When the operator controls the machine (e.g., moving the boom or bucket), the pump’s servo system adjusts the angle of the Rocker Cam. |
| 3.Changing the swash plate angle changes how far the pistons stroke, which increases or decreases the oil flow to the hydraulic cylinders, controlling the machine’s speed and force. |
- Compatible models
BULLDOZERS D275A D275AX
EXCAVATORS PC600 PC650 PC700
WHEEL LOADERS WA270 Komatsu
- More other rocker cam parts fit for KOMATSU machine
| CA0132689 CAM |
| WB140, WB140PS, WB150, WB150AWS, WB150PS, WB150WSC, WB91R, WB93R, WB93S, WB97R, WB97S |
| 395-720-1281 CAM R.H. |
| WH609, WH713 |
| 395-720-1291 CAM L.H. |
| WH609, WH713 |
| 395-720-1340 CAM |
| WH609 |
| 395-720-1120 CAM |
| WH713 |
| 415-879-1430 CAM |
| WA100M, WA50, WA70, WA80 |
| 161 717 CAM, PUMP CONTROL |
| KOMATSU |
| 708-3S-13441 CAM,ROCKER |
| PC27MR, PC30MR, PC35MR, PC40MR, PC45MR, PC50MR, PC55MR |
| 708-3S-13440 CAM,ROCKER |
| PC27MR, PC27MRX, PC30MR, PC30UU, PC35MR, PC40MR, PC50MR |
| 708-3T-13412 CAM, ROCKER |
| BOOM,, CARRIER, PC70, PC78MR, PC78US, PC78UU, PC88MR |
| 42N-70-11890 CAM |
| WB142 |
| 332209656 CAM |
| SK04J |

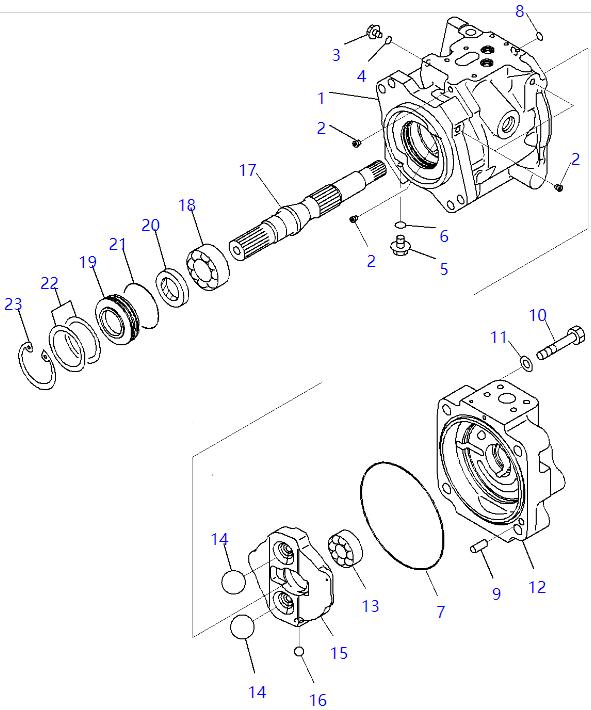

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 708-1U-00201 | [1] | Pump Assembly, Gear Komatsu China | ||
| ["SN: 65001-UP"] analogs:["R7081U00201"] |$0. | ||||
| 708-1U-00211 | [1] | Pump Assembly Komatsu China | ||
| ["SN: 65001-UP"] |$1. | ||||
| 708-1U-01216 | [1] | Pump Subassembly Komatsu China | ||
| ["SN: 65001-UP"] |$2. | ||||
| 708-1U-04142 | [1] | CAASE Assembly Komatsu China | ||
| ["SN: 65001-UP", "SCC: C2"] |$3. | ||||
| 3 | 708-8E-16160 | [2] | Plug Komatsu | 0.01 kg. |
| ["SN: 65001-UP"] | ||||
| 4 | 07002-11023 | [2] | O-ring Komatsu China | 0.025 kg. |
| ["SN: 65001-UP"] analogs:["0700201023"] | ||||
| 5 | 07040-12412 | [1] | Plug Komatsu | 0.092 kg. |
| ["SN: 65001-UP"] analogs:["0704012414", "0704002412", "R0704012412"] | ||||
| 6 | 07002-12434 | [1] | O-ring Komatsu China | 0.01 kg. |
| ["SN: 65001-UP"] analogs:["0700202434", "0700213434"] | ||||
| 7 | 706-73-42370 | [1] | O-ring Komatsu | 0.005 kg. |
| ["SN: 65001-UP"] | ||||
| 8 | 07000-B1009 | [1] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 65001-UP"] analogs:["7082L23910"] | ||||
| 9 | 04020-01024 | [1] | Pin, Dowel Komatsu | 0.015 kg. |
| ["SN: 65001-UP"] analogs:["PZF890001197"] | ||||
| 10 | 01010-61470 | [4] | Bolt Komatsu | 0.109 kg. |
| ["SN: 65001-UP"] analogs:["0101031470", "0101081470", "0101051470"] | ||||
| 11 | 01643-31445 | [4] | Washer Komatsu | 0.019 kg. |
| ["SN: 65001-UP"] analogs:["0164301432"] | ||||
| 12 | 708-1U-11561 | [1] | Cap, End Komatsu China | |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 13 | 708-1W-42120 | [1] | Bearing Komatsu | 0.2 kg. |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 14 | 708-3T-13420 | [2] | Ball Komatsu | 0.42 kg. |
| ["SN: 65001-UP", "SCC: C2"] analogs:["7083T13421"] | ||||
| 15 | 708-1U-13450 | [1] | Cam, Rocker Komatsu | 2.1 kg. |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 16 | 04260-01270 | [1] | Ball Komatsu OEM | 0.009 kg. |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 17 | 708-1U-12120 | [1] | Shaft Komatsu | 1.7 kg. |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 18 | 708-1W-42110 | [1] | Bearing Komatsu | 0.23 kg. |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 19 | 708-1U-12320 | [1] | CAASE, Seal Komatsu | 0.2 kg. |
| ["SN: 65001-UP"] | ||||
| 20 | 708-1W-42130 | [1] | Seal, Oil Komatsu | 0.032 kg. |
| ["SN: 65001-UP"] | ||||
| 21 | 07000-B2065 | [1] | O-ring Komatsu | 0.002 kg. |
| ["SN: 65001-UP"] | ||||
| 22 | 708-1W-05811 | [1] | Spacer Kit Komatsu | 0.182 kg. |
| ["SN: 65001-UP", "SCC: C2"] analogs:["7081W05810"] | ||||
| 23 | 04065-07225 | [1] | Ring, Snap Komatsu | 0.02 kg. |
| ["SN: 65001-UP"] |
