265-3591 2653591 Hose Excavator Spare Parts Fitting For C6.4 320D 320D FM 320D GC
- 265-3591 2653591 Hose Excavator Spare Parts Fitting For C6.4 320D 320D FM 320D GC
- Specifiion
| Name | Hose |
| Parts No | 265-3591 2653591 |
| Machine Model | 320D 320D FM 320D GC 320D L 320D LN 323D L 323D LN 323D SA |
| Engine Model | C6.4 |
| egory | Cooling Lines |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Construction
1.Inner Tube: Synthetic rubber (nitrile or EPDM) for resistance to hydraulic fluids, abrasion, and high temperatures.
2.Reinforcement: Multi-layer steel wire braid or spiral winding for exceptional strength and pressure resistance.
3.Outer Cover: Durable synthetic rubber with abrasion, ozone, and weather resistance.
- Compatible models
MOBILE HYD POWER UNIT 323D L 323D LN er.pillar.
- More other hose parts fit for C A T machine
| 5P0767 HOSE |
| 1090, 1190, 1190T, 120G, 1290T, 1390, 140G, 215, 215B, 215C, 215D, 225, 225D, 227, 229, 2290, 229D, 231D, 235, 235B, 235C, 235D, 236D, 2384C, 2390, 2391, 242D, 245, 245B, 245D, 246D, 2470C, 2484C, 249... |
| 5P1420 HOSE |
| 120M, 12M, 216, 216B, 216B3, 226B, 226B3, 228, 2290, 232B, 235C, 236, 236B, 236B3, 236D, 2384C, 2390, 2391, 242B, 242B3, 242D, 246C, 246D, 247, 247B, 247B3, 248, 2484C, 2491, 252B, 252B3, 256C, 257B, ... |
| 8C3681 HOSE |
| 120K, 120K 2, 120M, 120M 2, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 140G, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 16H, 16H NA, 225D, 231D, 236D, 242D, 2... |
| 5P0743 HOSE |
| 120K, 120K 2, 120M, 12K, 12M, 140G, 140K, 140K 2, 140M, 160K, 160M, 16M, 216, 228, 236, 236B, 236D, 242B, 242D, 246D, 247, 247B, 248, 257D, 259D, 262D, 267, 267B, 268B, 272D, 272D XHP, 277D, 279D, 287... |
| 1032529 HOSE |
| 120H, 120H ES, 120H NA, 120M 2, 135H, 135H NA, 236D, 242D, 246D, 257D, 259D, 262D, 272D, 272D XHP, 277D, 279D, 2864C, 287D, 289D, 299D, 299D XHP, 303.5C, 303.5D, 303.5E, 303C CR, 303E CR, 304, 304C CR... |
| 4I5556 HOSE AS |
| 311B, 315B, 315C, 315D L, 316E L, 318B, 318C, 318D2 L, 318E L, 320, 320 L, 320B, 320B FM LL, 320C, 320D, 320D L, 320D2, 320D2 L, 320E, 320E L, 320E LN, 320N, 321B, 321D LCR, 323D L, 323D LN, 323D SA, ... |
| 1116752 HOSE AS |
| 308C, 312C, 312C L, 312D, 312D L, 314D LCR, 314E CR, 314E LCR, 315C, 315D L, 318C, 318D L, 318D2 L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320D, 320D FM, 320D GC, 320D L, 320D LRR, 320D RR, 320D2... |
| 1087354 HOSE AS |
| 315C, 318C, 319C, 320B, 320B L, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 322C, 322C FM, 323D L, 323D LN, 323D2 L, 325C, 325C FM, 325C L, 350, 385B |
| 1875954 HOSE AS |
| 316E L, 318C, 318E L, 319C, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 322C, 322C FM, 323D L, 323D LN, 323D2 L, 324D FM, 324D FM LL, 325C FM, 325D FM, 325D FM LL |

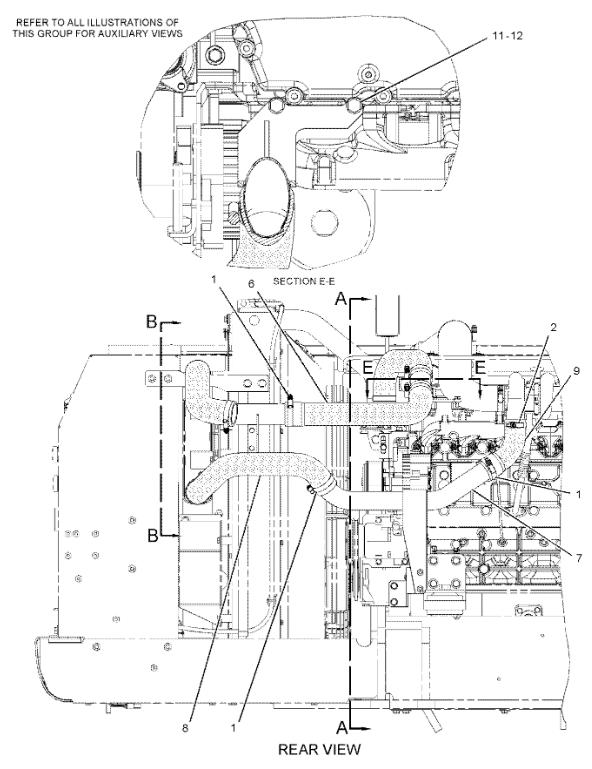

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 8T-4984 | [9] | CLAMP-HOSE | |
| 2 | 8T-6703 | [1] | CLAMP-HOSE | |
| 3 | 210-8012 | [1] | SUPPORT | |
| 4 | 265-3581 | [1] | TUBE AS | |
| 5 | 265-3585 | [1] | HOSE | |
| 6 | 265-3586 | [1] | HOSE | |
| 7 | 265-3587 | [1] | TUBE AS | |
| 8 | 265-3590 | [1] | HOSE | |
| 9 | 265-3591 | [1] | HOSE | |
| 10 | 265-3599 | [1] | HOSE | |
| 11 | 8T-4121 | [6] | WASHER-HARD (11X21X2.5-MM THK) | |
| 12 | 8T-4136 M | [4] | BOLT (M10X1.5X25-MM) | |
| 13 | 8T-4137 M | [2] | BOLT (M10X1.5X20-MM) | |
| M | METRIC PART | |||
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
