206-62-31821 206-62-31861 Tube KOMATSU Excavator Spare Parts For PC240LC-10 PC290LC-10
- 206-62-31821 206-62-31861 Tube KOMATSU Excavator Spare Parts For PC240LC-10 PC290LC-10
- Specifiion
| Name | Tube |
| Parts No | 206-62-31821 206-62-31861 |
| Machine Model | PC220 PC240 PC290 |
| egory | Boom, Arm Cylinder Piping |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
EXCAVATORS PC220 PC240 PC290 Komatsu
- More other tube parts fit for KOMATSU machine
| 203-60-31160 TUBE |
| AIR, PC130, PC138, PC138US, PC160, PC190, PC200, PC220, PC228, PC228US, PC240, PC270, PC290, PC300, PC350, PC400, PC450, PRESSURE, RAIN, WINDOW |
| 07270-01085 TUBE |
| AIR, JV25CR, JV40CR, PC300, PC300HD, PC300LL, PC340, PC350, PC350HD, PC350LL, PRESSURE, RAIN |
| 6745-71-5230 TUBE, FUEL SUPPLY |
| PC300, PC300HD, PC300LL, PC350, PC350HD, PC350LL, SAA6D114E, WA430 |
| 6745-71-4140 TUBE, INJECTOR FUEL SUPPLY |
| PC300, PC300HD, PC300LL, PC350, PC350HD, PC350LL, SAA6D114E, WA430 |
| 6745-11-8130 TUBE, OIL FILLER |
| PC300, PC300HD, PC300LL, PC350, PC350HD, PC350LL, SAA6D114E |
| NY07207-11700 TUBE |
| AIR, HB205, HB215, PC1250, PC130, PC160, PC190, PC200, PC2000, PC220, PC228, PC228US, PC240, PC270, PC290, PC300, PC350, PC400, PC450, PC550, PRESSURE, RAIN, TRAVEL |
| 207-62-71211 TUBE |
| AIR, PC300, PC300HD, PC300LL, PC340, PC350, PC350HD, PC360, PC380, PC390, PC390LL, PRESSURE, RAIN |
| 20762-73190 TUBE |
| PC300, PC300HD, PC340, PC350, PC350HD, PC360, PC380, PC400, PC450, PC550, PRESSURE, RAIN |
| 81725KF TUBE CLAMP, HEAVY, 33.7 MM |
| PC300LL, PC350LL |
| 22B-62-KA760 TUBE |
| PC138US |
| 21T-62-74190 TUBE |
| PC1600, PC1600SP, PC1800 |
| 206-62-31941 TUBE |
| PC220, PC240, PC290 |
| 709-14-11620 TUBE |
| BOTTOM, PC1000, PC1000SE, PC1000SP, PC1100, PC1100SE, PC1100SP, PC1250, PC1250SE, PC1250SP, PC650, PC650SE, PC710, PC710SE, PC750, PC750SE, PC800 |
| YM172164-72031 TUBE,BOOM |
| PC40FR |
| 427-62-11541 TUBE |
| WA800, WA800L, WA900, WA900L |
| 22B-62-K2541 TUBE |
| PC138US |
| 22B-62-K2551 TUBE |
| PC138US |
| 566-92-82120 TUBE |
| HD325 |
| 22B-979-1450 TUBE |
| CD110R, PC128US, PC128UU, PC138, PC138US |
| 21T-919-4990 TUBE |
| PC1600 |
| 561-02-61160 TUBE |
| 330M, HD785, HD985 |

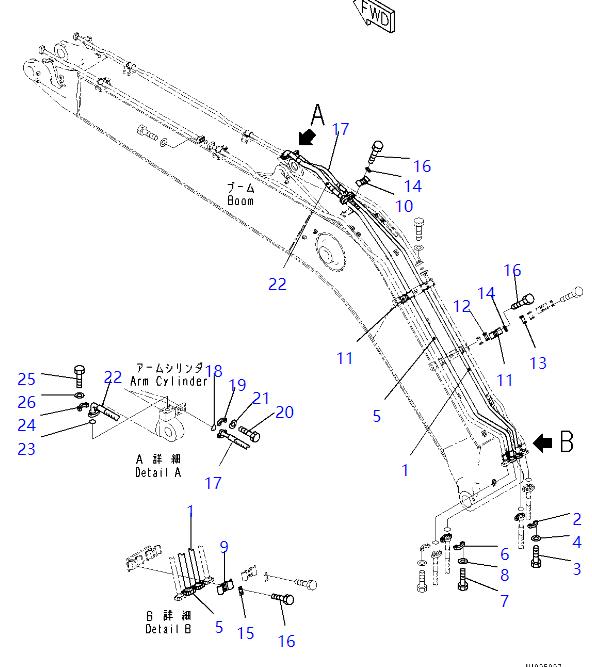

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 206-62-31821 | [1] | Tube Komatsu China | |
| ["SN: 15001-UP"] | ||||
| 2 | 07371-30640 | [2] | Flange, Split Komatsu China | 0.112 kg. |
| ["SN: 15001-UP"] | ||||
| 3 | 07372-21035 | [4] | Bolt Komatsu | 0.033 kg. |
| ["SN: 15001-UP"] | ||||
| 4 | 01643-51032 | [4] | Washer Komatsu | 0.17 kg. |
| ["SN: 15001-UP"] analogs:["R0164351032"] | ||||
| 5 | 206-62-31861 | [1] | Tube Komatsu China | |
| ["SN: 15001-UP"] | ||||
| 6 | 07371-31049 | [2] | Flange, Split Komatsu | 0.12 kg. |
| ["SN: 15001-UP"] analogs:["0737121049"] | ||||
| 9 | 207-62-31340 | [1] | Clamp Komatsu China | |
| ["SN: 15001-UP"] | ||||
| 10 | 20Y-62-13690 | [1] | Clamp Komatsu China | |
| ["SN: 15001-UP"] analogs:["20Y6213960"] | ||||
| 11 | 207-62-54780 | [2] | Clamp Komatsu China | |
| ["SN: 15001-UP"] analogs:["2076254780NK"] | ||||
| 12 | 205-62-73431 | [2] | Seat Komatsu | 0.04 kg. |
| ["SN: 15001-UP"] analogs:["2056273430"] | ||||
| 13 | 20Y-62-13761 | [2] | Seat Komatsu | 0.1 kg. |
| ["SN: 15001-UP"] analogs:["20Y6213760"] | ||||
| 14 | 20Y-62-13450 | [3] | Plate Komatsu | 0.021 kg. |
| ["SN: 15001-UP"] | ||||
| 15 | 2A5-62-19710 | [1] | Plate Komatsu China | |
| ["SN: 15001-UP"] | ||||
| 16 | 01010-81230 | [8] | Bolt Komatsu | 0.043 kg. |
| ["SN: 15001-UP"] analogs:["0101051230", "01010B1230"] | ||||
| 17 | 20Y-62-13570 | [1] | Hose Komatsu OEM | 1.7 kg. |
| ["SN: 15001-UP"] | ||||
| 18 | 07000-13025 | [2] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 15001-UP"] analogs:["0700003025"] | ||||
| 22 | 206-62-71390 | [1] | Hose Komatsu China | |
| ["SN: 15001-UP"] | ||||
| 23 | 07000-13032 | [2] | O-ring Komatsu China | 0.002 kg. |
| ["SN: 15001-UP"] analogs:["YM24321000350", "YM24311000320", "0700003032"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
