VOE11716534 11716534 Washer Pump Excavator Spare Parts Fitting For L60F L70F L90F L120F
- VOE11716534 11716534 Washer Pump Excavator Spare Parts Fitting For L60F L70F L90F L120F
- Specifiion
| Name | Washer Pump |
| Parts No | VOE11716534 11716534 |
| Machine Model | A25F A25F/G A30F A30F/G A35F A40F L110H L120F L |
| Category | Windshield Washer |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Functions
1Fluid Delivery: When the operator activates the windshield washer switch (usually via a lever or button in the cab), the pump receives an electrical signal. Its motor spins an impeller, which draws washer fluid from the reservoir and pushes it through hoses to the spray nozzles mounted on the windshield.
2.Pressure Regulation: The centrifugal design creates enough pressure (0.5–1.0 bar) to atomize the fluid into a fine spray, ensuring even coverage across the glass surface without streaking.
3.Safety Integration: Works in tandem with the windshield wipers—many systems trigger both the pump and wipers simultaneously to maximize cleaning efficiency, especially in dusty or rainy conditions.
- Compatible models
A25F A25F/G A30F A30F/G A35F A35F FS A35F/G A35F/G FS A40F A40F FS A40F/G A40F/G FS L110F L110G L110H L120F L120G L120H L150F L150G L150H L180F L180F HL L180G L180G HL L180H L180H HL L220F L220G L220H L250G L250H L350F L45F L45G L50F L50G L60F L60G L60H L70F L70G L70H L90F L90G L90H Vol.vo.
- More other pump parts fit for V O L V O machine
| VOE20798675 Pump Unit |
| EC140C, EC160C, EC180C, EC210C, EC235C, ECR145C, ECR235C, EW160C, EW180C, FC2121C, FC2421C, L60F, L70F, L90F |
| VOE21468471 Pump unit |
| A25F, A30F, A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40E, A40E FS, A40F, A40F FS, A40F/G, A40F/G FS, A40G, A45G, A45G FS, EC340D, EC350E, EC380D, EC380DHR, EC380E, EC380EHR, EC480D, EC480DHR, EC480E, ... |
| VOE15044526 Pump unit |
| A25F, A30F, A35E, A35E FS, A35F, A35F FS, A40E, A40E FS, A40F, A40F FS, MT2000 |
| VOE11704535 Pump element |
| A35D, A40D, L110E, L110F, L120D, L120E, L120F, L120GZ, L150C, L150D, L180C, L180D, L60E, L60F, L60GZ, L70E, L70F, L90E, L90F, L90GZ |
| VOE11708080 Pump unit |
| A25D, A25E, A30D, A30E, A30F, A35D, A40D, T450D |
| VOE11709854 Pump element |
| L60E, L60F, L60G, L60H, L70E, L70F, L90E |
| VOE15105505 Pump element |
| L45F, L50F |
| VOE15073652 Pump element |
| L90F |
| VOE15000687 Pump unit |
| L350F |
| VOE22197705 Pump unit |
| A25F/G, A25G, A30F/G, A30G, A45G, A45G FS, A60H, EC750D, EC750E, EC950E |
| VOE16835661 Pump unit |
| L150H, L180H, L180H HL, L220H, L250H |
| VOE22608244 Pump |
| A35F/G, A35F/G FS, A40F/G, A40F/G FS, A45G, A45G FS, EC350E, EC380E, EC380EHR, EC480E, EC480EHR, EC750E, L150H, L180H, L180H HL, L220H, L250H, PL4809E |
| VOE15159042 Pump unit |
| L110F, L110G, L110H, L120F, L120G, L120H, L45F, L45G, L50F, L50G, L60F, L60G, L60H, L70F, L70G, L70H, L90F, L90G, L90H |
| PJ5350031 Pump |
| EC50, EC50VV |
| VOE11713301 Pump element |
| A35D, A35E, A35E FS, A35F FS, A40D, A40E, A40E FS, A40F FS, T450D |
| VOE14505486 Pump |
| EC55C, EC60C, EC60E, EW55B |
| VOE11883646 Pump |
| BL60, BL60B, BL61, BL61B, BL61PLUS, BL70, BL70B, BL71, BL71B, BL71PLUS, DD105 |
| VOE17286737 Pump |
| MC110C-MCT145C |
| RM43914233 Pump |
| MT2000 |
| VOE15181933 Pump unit |
| A35F, A35F FS, A35F/G, A35F/G FS, A40F, A40F FS, A40F/G, A40F/G FS |
| VOE14377125 Pump flange |
| EW140B, EW140C, EW160B, EW160C |
| VOE14380345 Pump retainer |
| EW140B |
| PJ5350084 Pump |
| EW50, EW50VV |
| VOE15082080 Pump |
| L180F HL |

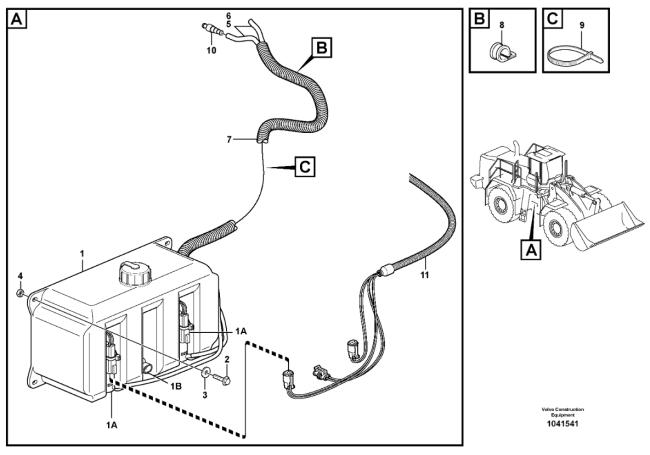

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE11170287 | [1] | Reservoir | SE3601 S/N -1812 |
| 1 | VOE16893392 | [1] | Washer fluid reservoir | S/N 1813- |
| 1A. | VOE11716534 | [2] | Pump | S/N -1812 |
| 1A. | VOE17480431 | [2] | Washer pump | S/N 1813- |
| 1B. | VOE15041562 | [1] | Cap | |
| 2 | VOE13946934 | [2] | Screw | |
| 3 | VOE955892 | [2] | Plain washer | |
| 4 | VOE13945407 | [2] | Nut | |
| 5 | VOE1304841 | [REQ] | Hose | L = 2730 MM |
| 6 | VOE1304841 | [REQ] | Hose | L = 4160 MM |
| 7 | VOE4803751 | [1] | Hose | L = 900 MM |
| 8 | VOE977599 | [1] | Clamp | |
| 9 | VOE4881440 | [8] | Cable tie | |
| 10 | VOE667352 | [1] | Non-return valve | |
| 11 | [1] | Cable harness |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
