14551527 14401361 Cover Excavator Spare Parts Fit For EC240C EC250D EC250E EC360CHR
-
14551527 14401361 Cover Excavator Spare Parts Fit For EC240C EC250D EC250E EC360CHR
-
Specifiion
| Category | Dipper Arm and Grease Piping With Piping Seat |
| Name | Cover |
| Parts No | 14551527 14401361 |
| Machine Number | EC240C EC250D EC250E EC360CHR EC380DHR |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
- Key functions
1.Hydraulic Fluid Protection: Seals the hydraulic tank opening to prevent contamination (dust, water, or debris in hydraulic fluid causes pump failure and valve blockages).
2.Pressure Retention: The rubber gasket maintains the hydraulic system’s internal pressure, ensuring consistent fluid flow to cylinders and motors.
3.Damage Prevention: Protects the tank’s fill port and level gauge from impact damage (e.g., during loader bucket operations near the tank).
- Compatible models
EC240B EC240C EC250D EC250E EC360CHR EC380DHR EC380EHR EC460CHR EC480DHR EC480EHR FC2924C Vo.lvo.
- More other cover applied to Vol.vo heavey machine
| VOE20523738 Cover |
| A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40G, EC340D, EC350E, EC380D, EC380DHR, EC380E, EC380EHR, EC480D, EC480DHR, EC480E, EC480EHR, L150G, L150H, L180G, L180G HL, L180H, L180H HL, L220G, L220H, L250... |
| VOE14676658 Cover |
| EC380E, EC380EHR |
| VOE14684675 Cover |
| EC380E, EC380EHR |
| VOE14706561 Cover |
| EC240B, EC290B |
| VOE14693227 Cover |
| EC380EHR, EC480EHR |
| VOE14688431 Cover |
| EC380EHR, EC480EHR |
| VOE14694384 Cover |
| EC480EHR |
| VOE14648758 Cover |
| EC250E, EC300E |
| VOE14660534 Cover |
| EC380E, EC380EHR |
| VOE14647667 Cover |
| EC250E, EC300E |
| VOE14676666 Cover |
| EC380E, EC380EHR |
| VOE14671790 Cover |
| EC380E, EC380EHR |
| VOE11444302 Cover |
| L110F, L120F, L150F, L180F, L220F, L60F, L60G, L60H, L70F, L70G, L70H, L90F, L90G, L90H |
| VOE14389134 Cover |
| EW140C |
| VOE14531013 Cover |
| EC135B, EC140B, EC140C, EC140D, EC160B, EC160C, EC160D, EC180B, EC180C, EC180D, EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC220E, EC235C, EC235D, EC240B, EC240C, EC250D, EC250E, EC290B, EC290C, ... |
| VOE14509281 Cover |
| EC200B, EC200D, EC210, EC210B, EC210C, EC210D, EC220D, EC235C, EC235D, EC460, EC460B, EC460C, EC460CHR, EC480D, EC480DHR, EC480E, EC480EHR, EW170, EW170 & EW180, FC2121C, FC2421C, PL4608, PL4611, ... |
| VOE14540247 Cover |
| EC140B, EC160B, EC180B, EC200B, EC210B, EC240B, EC290B, EC330B, EC360B, EC460B, EC700B, EW140B, EW145B, EW160B, EW180B, EW200B |
| VOE14527630 Cover |
| EC55B, EC55D, EC60D |
| VOE14515791 Cover |
| EC160B, EC180B, EC210B, EC240B, EC290B |
| VOE14527778 Cover |
| EC120D, EC140C, EC140D, EC140E, EC160C, EC160D, EC160E, EC170D, EC180C, EC180D, EC180E, EC200D, EC210C, EC210D, EC220D, EC220E, EC235C, EC235D, EC240C, EC250D, EC250E, EC290C, EC300D, EC300E, EC340D, ... |
| VOE14534431 Cover |
| EC140C, EC140D, EC160C, EC160D, EC170D, EC180C, EC180D, EC210C, EC220D, EC220E, EC235C, EC235D, EC240C, EC250D, EC250E, EC290C, EC300D, EC300E, EC330C, EC340D, EC350D, EC360C, EC360CHR, EC380D, EC380D... |
| VOE14537094 Cover |
| ECR88 |
| VOE14619251 Cover |
| EC140B, EC140C, EC140D, ECR145C, ECR145D |
| VOE14534432 Cover |
| EC140C, EC140D, EC160C, EC160D, EC170D |

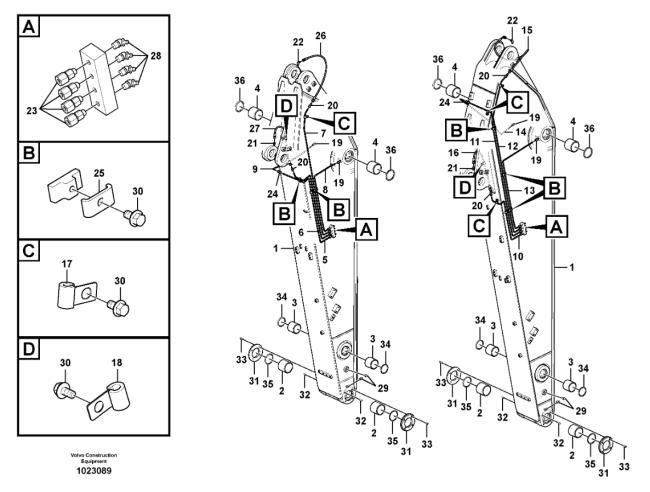

- Directory listing
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE14607769 | [1] | Arm | |
| VOE14560050 | Arm | |||
| VOE14552024 | Arm | |||
| VOE14551900 | Arm | |||
| VOE14560052 | Arm | |||
| 2 | VOE14880981 | [2] | Bushing | |
| 3 | VOE14551528 | [2] | Bushing | |
| 4 | VOE14544975 | [2] | Bushing | |
| VOE14514448 | Bushing | |||
| 5 | VOE14552293 | [1] | Pipe | |
| 6 | VOE14552294 | [1] | Pipe | |
| 7 | VOE14552295 | [1] | Pipe | |
| 8 | VOE14552296 | [1] | Pipe | |
| 9 | VOE14552297 | [1] | Pipe | |
| 10 | VOE14552323 | Pipe | ||
| 11 | VOE14552324 | Pipe | ||
| 12 | VOE14552325 | Pipe | ||
| 13 | VOE14552326 | Pipe | ||
| 14 | VOE14552327 | Pipe | ||
| 15 | VOE14880871 | Hose assembly | ||
| 16 | VOE14880645 | [1] | Hose assembly | |
| 17 | VOE14500291 | [1] | Clip | |
| 18 | VOE14500291 | [1] | Clip | |
| 19 | VOE14547522 | [2] | Fitting | |
| 20 | VOE14549931 | [2] | Fitting | |
| 21 | VOE14547518 | [1] | Nipple | |
| 22 | VOE14547520 | [1] | Nipple | |
| 23 | VOE14547521 | [4] | Fitting | |
| VOE14547514 | [1] | Nipple | ||
| 24 | VOE14550824 | [1] | Nipple | |
| 25 | VOE14547400 | [3] | Clamp | |
| 26 | VOE14880647 | [1] | Hose assembly | |
| 27 | VOE14560207 | [2] | Seal | |
| 28 | VOE914169 | [4] | Lubricating nipple | |
| 29 | VOE914167 | [3] | Lubricating nipple | |
| 30 | VOE946440 | [5] | Flange screw | |
| 31 | VOE14551527 | [2] | Cover | |
| 32 | VOE14544972 | [4] | Pin | |
| 33 | VOE984079 | [4] | Hex. socket screw | |
| 34 | VOE14560205 | [2] | Seal | |
| 35 | VOE14560206 | [2] | Seal | |
| 36 | VOE14560207 | [2] | Seal |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
