581-91-19120 581-91-19122 Element KOMATSU Dump Truck Spare Parts For HD465 HD605 HD785
-
581-91-19120 581-91-19122 Element KOMATSU Dump Truck Spare Parts For HD465 HD605 HD785
-
Specifiion
| Category | Steering And Hoist Hydraulic Piping, Pump To Filter |
| Name | Element |
| Parts No | 581-91-19120 581-91-19122 |
| Machine Number | 330M HD1200 HD465 HD605 HD785 HD985 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
- Key functions
1.Contaminant Removal: Prevents abrasive particles from entering fuel injectors (which require precise fuel atomization) and hydraulic pumps/motors (with tight tolerances), avoiding scuffing, wear, or seizure.
2.Fluid Purity Maintenance: Ensures clean fuel and hydraulic oil, optimizing combustion efficiency (fuel filter) and hydraulic system responsiveness (hydraulic filter) – improving fuel economy and machine performance.
3.Corrosion Prevention: The fuel element’s water separation function protects fuel system components from rust, while the hydraulic element’s clean oil prevents corrosion in hydraulic valves and cylinders.
4.Downtime Reduction: By blocking harmful contaminants, the elements reduce the risk of catastrophic component failure, minimizing unplanned maintenance and equipment downtime.
- Compatible models
DUMP TRUCKS 330M HD1200 HD465 HD605 HD785 HD985 Komatsu
- More other element applied to KOMATSU heavey machine
| 2471-1154 . ELEMENT;PILOT FILTER |
| DX140W, DX180, DX190W, DX210W, DX225, DX255, DX300, DX300LL, DX340, DX420, DX480, DX520, SOLAR |
| 2471-9051B ELEMENT;FILTER |
| MEGA, SOLAR |
| 2471-9051A ELEMENT;FILTER |
| SOLAR |
| 130-60-48140 ELEMENT |
| D30S, D50P, GD31, GD37 |
| 569-15-51732 Element Assembly |
| AIR, D155A, D155AX, D275A, D375A, D475A, D475ASD, D65EX, D65PX, D65WX, FRONT, GD555, GD655, GD675, HD325, HM250, HM300, HM400, HYDRAULIC, WA380, WA430, WA500, WA600, WD600 |
| 569-15-51731 Element Assembly |
| AIR, D155A, D155AX, D275A, D275AX, D375A, D475A, D475ASD, D85MS, GD555, GD655, GD675, HD325, HD405, HD465, HD605, HM250, HM300, HM350, HM400, WA380, WA430, WA450, WA470, WA480 |
| 363-18-31470 ELEMENT |
| HD325, WA100M, WA120, WA20, WA30, WA40, WA50, WA80 |
| 600-185-3120 ELEMENT |
| D41E, D41P, D41PF, GD555, PC200, PC200LL, PC210, PC230NHD, WA250, WA250PT, WA250PZ, WA320 |
| 6212-81-7043 ELEMENT |
| PC750, PC750SE |
| 600-181-1580 ELEMENT, OUTER |
| 538, 542, 545, 850B, 870B, GD650A, PC300, WA380, WA420, WA450, WA470 |
| 6685-61-9132 ELEMENT |
| NH, S4D120, WF22A, WF22T, WS16 |

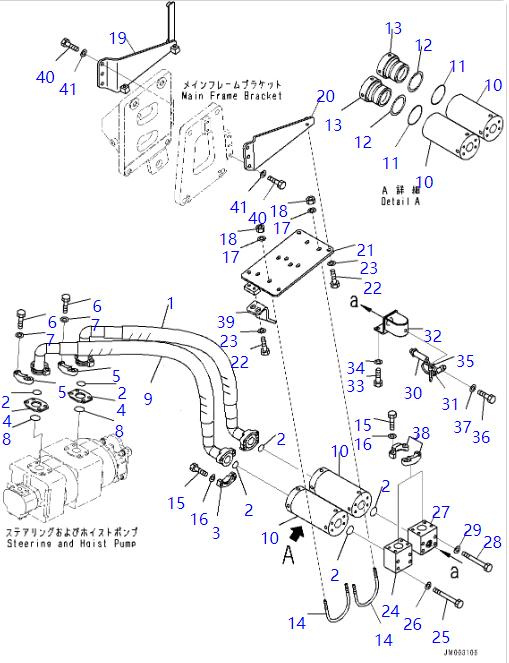

- Directory listing
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 561-87-81920 | [1] | Hose Komatsu | 9.56 kg. |
| ["SN: 30001-UP"] | ||||
| 2 | 07000-F3048 | [6] | O-ring Komatsu China | 0.005 kg. |
| ["SN: 30001-UP"] analogs:["0700023048"] | ||||
| 3 | 07371-31465 | [4] | Flange Komatsu | 0.28 kg. |
| ["SN: 30001-UP"] | ||||
| 4 | 07373-31400 | [2] | Spacer Komatsu | 0.26 kg. |
| ["SN: 30001-UP"] | ||||
| 6 | 07372-31250 | [8] | Bolt Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 7 | 01643-51232 | [8] | Washer Komatsu | 0.024 kg. |
| ["SN: 30001-UP"] | ||||
| 9 | 561-87-81912 | [1] | Hose Komatsu | 10.1 kg. |
| ["SN: 30001-UP"] | ||||
| 10 | 581-91-19110 | [2] | Filter Komatsu | 13.2 kg. |
| ["SN: 30001-UP"] | ||||
| 11. | 07000-52090 | [1] | O-ring Komatsu China | 0.003 kg. |
| ["SN: 30001-UP"] analogs:["0700042090"] | ||||
| 12. | 07001-02090 | [1] | Ring, Back-up Komatsu | 0.002 kg. |
| ["SN: 30001-UP"] | ||||
| 13. | 581-91-19120 | [1] | Element Komatsu | 0.882 kg. |
| ["SN: 30001-UP"] | ||||
| 14 | 22W-62-18810 | [4] | U-bolt Komatsu | 0.23 kg. |
| ["SN: 30001-UP"] | ||||
| 15 | 07372-21240 | [16] | Bolt Komatsu | 0.052 kg. |
| ["SN: 30001-UP"] analogs:["0737201240"] | ||||
| 17 | 01643-31032 | [8] | Washer Komatsu | 0.054 kg. |
| ["SN: 30001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 18 | 01596-01009 | [8] | Nut, Flanged Komatsu | 0.011 kg. |
| ["SN: 30001-UP"] | ||||
| 19 | 561-87-85160 | [1] | Bracket Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 20 | 561-87-85170 | [1] | Bracket Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 21 | 561-87-85151 | [1] | Plate Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 22 | 01010-81230 | [6] | Bolt Komatsu | 0.043 kg. |
| ["SN: 30001-UP"] analogs:["0101051230", "01010B1230"] | ||||
| 23 | 01643-31232 | [6] | Washer Komatsu | 0.027 kg. |
| ["SN: 30001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 24 | 561-87-85180 | [1] | Block Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 25 | 01010-81290 | [4] | Bolt Komatsu | 0.095 kg. |
| ["SN: 30001-UP"] analogs:["0101051290"] | ||||
| 27 | 561-87-85221 | [1] | Block Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 28 | 01010-81295 | [4] | Bolt Komatsu | 0.1 kg. |
| ["SN: 30001-UP"] | ||||
| 30 | 421-06-35111 | [1] | Switch, Pressure Komatsu | 0.23 kg. |
| ["SN: 30001-UP"] | ||||
| 31 | 08034-20834 | [1] | Band Komatsu | 0.01 kg. |
| ["SN: 30001-UP"] analogs:["885180005"] | ||||
| 32 | 561-40-85191 | [1] | Cover Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 33 | 01010-81020 | [2] | Bolt Komatsu | 0.161 kg. |
| ["SN: 30001-UP"] analogs:["801014093", "0101051020", "801015108"] | ||||
| 35 | 04434-50610 | [1] | Clip Komatsu | 0.022 kg. |
| ["SN: 30001-UP"] | ||||
| 39 | 561-61-85591 | [1] | Bracket Komatsu China | |
| ["SN: 30001-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
