07260-27428 07260-07428 Hose KOMATSU Excavator Spare Parts For PW100 WA400 WA420
-
07260-27428 07260-07428 Hose KOMATSU Excavator Spare Parts For PW100 WA400 WA420
-
Specifiion
| Category | Hydraulic Piping, Tank to Pump |
| Name | Hose |
| Parts No | 07260-27428 07260-07428 |
| Machine Number | WA400 WA420 WA470 WA700 PW100 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
- Key functions
1.Power Transmission: Enables the hydraulic system to deliver force to critical components, directly supporting the machine’s ability to perform heavy-duty tasks (e.g., digging through rock, lifting heavy loads, or hauling materials).
2.System Integrity: Maintains the hydraulic system’s pressure and fluid containment, preventing leaks that would lead to reduced performance, increased maintenance costs, and environmental hazards.
3.Component Protection: Protects hydraulic oil from contamination, extending the lifespan of expensive components like hydraulic pumps, valves, and cylinders.
4.Adaptability to Motion: Its flexibility allows for the dynamic movement of equipment parts (e.g., excavator arm rotation, loader bucket tilting) without hose damage or restricted oil flow.
- Compatible models
CRANES LW250L
DUMP TRUCKS HD320 HD325
EXCAVATORS PW100
WHEEL LOADERS WA400 WA420 WA470 WA700 Komatsu
- More other hose applied to KOMATSU heavey machine
| 07124-20608 HOSE |
| PW100, WA200, WA300 |
| 07127-01006 HOSE |
| D66S, PW100 |
| 203-62-21641 HOSE |
| D455A, D475A, D475ASD, PC100, PC100L, PC100U, PC120, PW100 |
| 07123-00608 HOSE |
| D475A, LW250L, PC100, PC100L, PC100U, PC120, PW100, WA900, WR11 |
| 07123-00606 HOSE |
| D40P, D40PF, D40PL, D40PLL, D41A, D41P, D475A, D85A, D85E, D85P, FD60, FD70, FD80, PC100, PC100L, PC100U, PC120, PW100, WA100, WA150, WA350, WA380, WA420, WA450, WA450L, WA470, WA500 |
| 07109-20612 HOSE |
| PC100, PC100L, PW100 |
| 07096-00312 HOSE |
| PC1100, PC1100SE, PC1100SP, PW100, PW100N, PW100NS, PW100S |
| 07098-00512 HOSE |
| PW100, PW100N, PW100NS, PW100S |
| 07096-00314 HOSE |
| PW100, PW100S |
| 07121-00304 HOSE |
| GD805A, GD825A, HD325, HD405, PC120, PW100, PW100S, PW128UU |
| 07096-00303 HOSE |
| PW100, PW100N, PW100NS, PW100S |
| 07096-00315 HOSE |
| PW100, PW100N, PW100NS, PW100S, PW128UU |

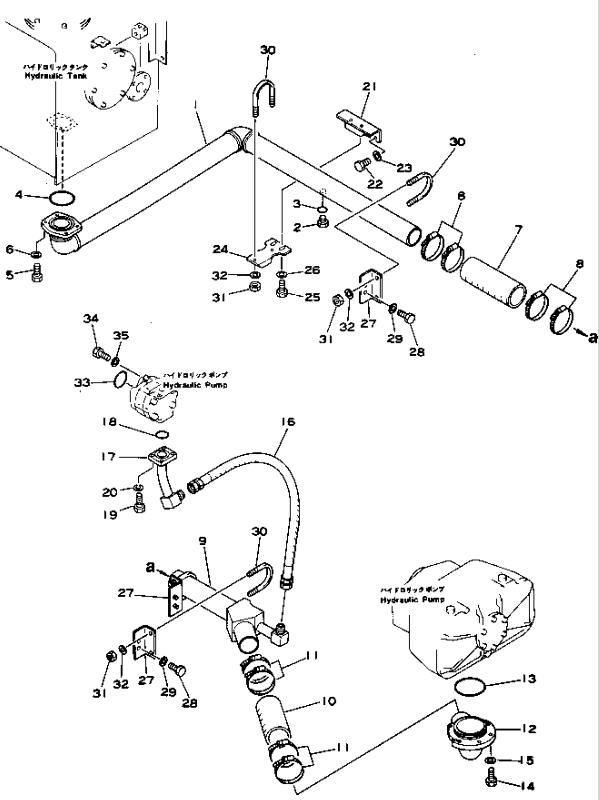

- Directory listing
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 20D-62-21631 | [1] | TUBE Komatsu China | |
| ["SN: 1003-UP"] | ||||
| 2 | 07040-11812 | [1] | PLUG Komatsu | 0.07 kg. |
| ["SN: 1003-UP"] analogs:["0704001812"] | ||||
| 3 | 07002-01823 | [1] | O-RING Komatsu | 0.36 kg. |
| ["SN: 1003-UP"] analogs:["0700211823"] | ||||
| 4 | 07000-02070 | [1] | O-RING Komatsu China | 0.03 kg. |
| ["SN: 1003-UP"] analogs:["0700012070"] | ||||
| 5 | 01010-31240 | [4] | BOLT Komatsu | 0.052 kg. |
| ["SN: 1003-UP"] analogs:["01010E1240", "0101061240"] | ||||
| 6 | 01643-31232 | [4] | WASHER Komatsu | 0.027 kg. |
| ["SN: 1003-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 7 | 07260-27428 | [1] | HOSE Komatsu | 1.204 kg. |
| ["SN: 1003-UP"] analogs:["0726007428"] | ||||
| 8 | 07281-01029 | [4] | CLAMP Komatsu | 0.055 kg. |
| ["SN: 1003-UP"] | ||||
| 9 | 20D-62-11583 | [1] | TUBE Komatsu China | |
| ["SN: 1003-UP"] | ||||
| 12 | 20D-62-11592 | [1] | TUBE Komatsu China | |
| ["SN: 1003-UP"] | ||||
| 13 | 07000-02125 | [1] | O-RING Komatsu OEM | 0.005 kg. |
| ["SN: 1003-UP"] analogs:["0700002125E", "0700012125"] | ||||
| 14 | 01010-31030 | [5] | BOLT Komatsu China | 0.03 kg. |
| ["SN: 1003-UP"] analogs:["01010E1030"] | ||||
| 15 | 01643-31032 | [5] | WASHER Komatsu | 0.054 kg. |
| ["SN: 1003-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 16 | 07102-21006 | [1] | HOSE Komatsu China | 1.65 kg. |
| ["SN: 1003-UP"] | ||||
| 17 | 20D-62-11612 | [1] | TUBE Komatsu China | |
| ["SN: 1003-UP"] | ||||
| 18 | 07000-03032 | [1] | O-RING Komatsu China | 0.002 kg. |
| ["SN: 1003-UP"] analogs:["0700013032", "YM24321000350", "YM24311000320"] | ||||
| 19 | 07372-01035 | [4] | BOLT Komatsu | 0.033 kg. |
| ["SN: 1003-UP"] analogs:["0737221035"] | ||||
| 20 | 01602-01030 | [4] | WASHER,SPRING Komatsu | 0.004 kg. |
| ["SN: 1003-UP"] analogs:["0160211030"] | ||||
| 21 | 20D-62-11561 | [1] | BRACKET Komatsu China | |
| ["SN: 1003-UP"] | ||||
| 22 | 01010-31230 | [2] | BOLT Komatsu | 0.043 kg. |
| ["SN: 1003-UP"] analogs:["01010E1230", "0101061230"] | ||||
| 24 | 20D-62-11551 | [1] | BRACKET Komatsu China | |
| ["SN: 1003-UP"] | ||||
| 25 | 01010-31225 | [2] | BOLT Komatsu | 0.039 kg. |
| ["SN: 1003-UP"] analogs:["01010E1225", "0101061225"] | ||||
| 27 | 20D-62-12560 | [3] | BRACKET Komatsu China | |
| ["SN: 1003-UP"] | ||||
| 30 | 07283-27663 | [4] | CLIP Komatsu | 0.162 kg. |
| ["SN: 1003-UP"] | ||||
| 31 | 01599-01011 | [8] | NUT Komatsu | 0.016 kg. |
| ["SN: 1003-UP"] | ||||
| 33 | 07000-02085 | [1] | O-RING Komatsu China | 0.03 kg. |
| ["SN: 1003-UP"] analogs:["0700012085", "YM24321000850"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
