VOE14677991 14677991 Pipe Excavator Hydraulic System Parts Fitting For EC460C EC480D
-
VOE14677991 14677991 Pipe Excavator Hydraulic System Parts Fitting For EC460C EC480D
-
Specifiion
| Category | Hydraulic System, Control Valve to Boom and Swing |
| Name | Pipe |
| Parts No | VOE14677991 14677991 |
| Machine Number | EC460C EC480D EC480DHR EC480E EC480EHR |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
- Key functions
1.Hydraulic System Support: Transports high-pressure hydraulic oil between pumps, valves, and actuators (cylinders, motors), enabling smooth operation of the boom, arm, and bucket.
2.Fuel Delivery: (If used as a fuel line) Supplies clean diesel fuel from the tank to the engine, ensuring consistent combustion and power output.
3.Coolant Circulation: (If used as a coolant line) Moves coolant between the engine and radiator, regulating temperature to prevent overheating.
4.Leak Prevention: Creates secure, long-lasting seals to avoid fluid loss—hydraulic oil or fuel leaks not only reduce system efficiency but also pose safety hazards (e.g., fire risk from fuel spills).
- Compatible models
EXCAVATORS EC460C EC480D EC480DHR EC480E EC480EHR Vo.lvo.
- More other pipe applied to V O L V O heavey machine
| VOE14713120 Pipe |
| EC480EHR |
| VOE14692639 Pipe |
| EC480EHR |
| VOE14713121 Pipe |
| EC480EHR |
| VOE14636742 Pipe |
| EC480EHR |
| VOE14690223 Pipe |
| EC480EHR |
| VOE14690222 Pipe |
| EC480EHR |
| VOE14692633 Pipe |
| EC480EHR |
| VOE14713142 Pipe |
| EC480EHR |
| VOE14679483 Pipe |
| EC480EHR |
| VOE14679484 Pipe |
| EC480EHR |
| VOE14678035 Pipe |
| EC480D, EC480E |
| VOE14677174 Pipe |
| EC480E |
| VOE14568016 Pipe |
| EW160C |
| VOE14589494 Pipe |
| PL4611 |
| VOE14677951 Pipe |
| EC220E |
| VOE14683881 Pipe |
| EC480EHR |
| VOE14686382 Pipe |
| EC480EHR |
| VOE14677118 Pipe |
| EC210D, EC220E, ECR235E |
| VOE14677677 Pipe |
| EC200D, EC210D, EC220E |
| VOE14679801 Pipe |
| EC220E |
| VOE14689589 Pipe |
| EC220E |
| VOE14677918 Pipe |
| EC200D, EC210D, EC220E, ECR235E |
| VOE14566496 Pipe |
| EW180C, EW210C |
| VOE14677124 Pipe |
| EC210C, EC210D, EC220D, EC220E, EC235C, EC235D, ECR235C, ECR235D, ECR235E, EW205D, FC2121C, FC2421C |

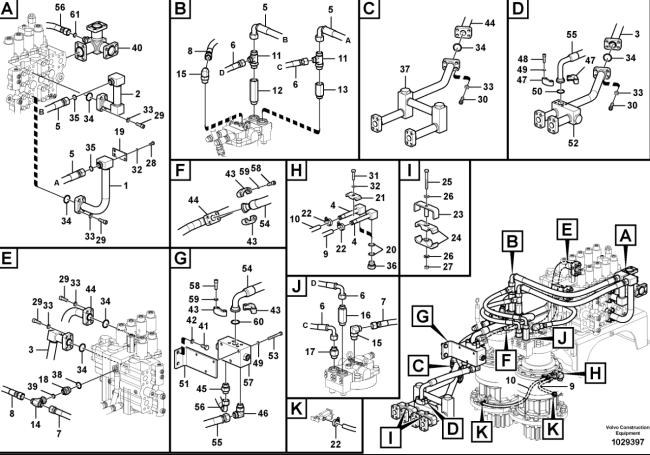

- Directory listing
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE14677506 | [1] | Pipe | |
| 2 | VOE14677505 | [1] | Pipe | |
| 3 | VOE14677196 | [1] | Pipe | |
| 4 | VOE14514121 | [2] | Pipe line | |
| 5 | VOE938223 | [2] | Hose assembly | |
| 6 | VOE936354 | [2] | Hose assembly | |
| 7 | VOE937156 | [1] | Hose assembly | |
| 8 | VOE937366 | [1] | Hose assembly | |
| 9 | VOE14881112 | [1] | Fuel hose | |
| 10 | VOE14881115 | [1] | Fuel hose | |
| 11 | VOE15038537 | [2] | T-nipple | |
| 12 | VOE14568420 | [1] | Nipple | |
| 13 | VOE14568419 | [1] | Nipple | |
| 14 | VOE13933863 | [1] | T-nipple | |
| 15 | VOE935080 | [2] | Elbow nipple | |
| 16 | VOE937090 | [1] | Nipple | |
| 17 | VOE937879 | [1] | Nipple | |
| 18 | VOE14884872 | [1] | Nipple | |
| 19 | VOE14503528 | [1] | Plate | |
| 20 | VOE949329 | [2] | Gasket | |
| 21 | VOE14881202 | [1] | Clamp | |
| 22 | VOE14511415 | [4] | Clamp | |
| 23 | VOE14717632 | [2] | Clamp | |
| 24 | SA1142-03980 | [4] | Rubber clamp | |
| 25 | VOE992576 | [2] | Hexagon screw | |
| 26 | VOE930844 | [4] | Plain washer | |
| 27 | VOE979020 | [2] | Hexagon nut | |
| 28 | VOE983251 | [4] | Hexagon screw | |
| 29 | VOE984135 | [16] | Hex. socket screw | |
| 30 | VOE984359 | [8] | Hex. socket screw | |
| 31 | VOE997437 | [1] | Hexagon screw | |
| 32 | VOE955922 | [5] | Spring washer | |
| 33 | VOE955925 | [24] | Spring washer | |
| 34 | VOE993326 | [6] | O-ring | |
| 35 | VOE978129 | [2] | O-ring | |
| 36 | SA9415-22141 | [2] | Plug | S/N -115088 |
| VOE14722461 | [2] | Draining valve | S/N 115089- | |
| 37 | VOE14677991 | [1] | Pipe | |
| 38 | VOE983527 | [1] | O-ring | |
| 39 | VOE990740 | [1] | O-ring | |
| 40 | VOE14557291 | Pipe | ||
| 41 | VOE997459 | Hexagon screw | ||
| 42 | VOE955926 | Spring washer | ||
| 43 | VOE936626 | Flange half | ||
| 44 | VOE14677654 | Pipe | ||
| 45 | VOE935098 | Nipple | ||
| 46 | VOE935013 | Elbow nipple | ||
| 47 | VOE936624 | Flange half | ||
| 48 | VOE997878 | Hex. socket screw | ||
| 49 | VOE955923 | Spring washer | ||
| 50 | VOE13948700 | O-ring | ||
| 51 | VOE14576287 | Bracket | ||
| 52 | VOE14678065 | Pipe | ||
| 53 | VOE992570 | Hexagon screw | ||
| 54 | VOE14882042 | Hose assembly | ||
| 55 | VOE14882043 | Hose assembly | ||
| 56 | VOE937373 | Hose assembly | ||
| 57 | VOE14569670 | Valve | ||
| 58 | VOE984135 | Hex. socket screw | ||
| 59 | VOE955925 | Spring washer | ||
| 60 | VOE949238 | O-ring | ||
| 61 | VOE990740 | O-ring |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
