419-03-33211 4190333211 Fan Assy KOMATSU Excavator Spare Parts Fit For WA100-5 WA150-5
-
419-03-33211 4190333211 Fan Assy KOMATSU Excavator Spare Parts Fit For WA100-5 WA150-5
-
Specifiion
| Category | Radiator; Fan Drive |
| Name | Engine Cooling Fan Blade Assy |
| Parts No | 419-03-33211 4190333211 |
| Machine Number | WA100 WA150 WA200 WA250 WA270 WA320 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
- Key functions
1.Engine Cooling: Prevents the engine from overheating (a top cause of seizure or component warping) by dissipating heat from combustion and mechanical friction. Critical for long work cycles (e.g., 8+ hours of continuous digging).
2.Hydraulic Oil Cooling: Regulates the temperature of hydraulic oil, which degrades rapidly at high temperatures (reducing lubrication and seal life). Cool oil ensures smooth operation of hydraulic pumps, cylinders, and motors.
3.Temperature Stabilization: Maintains optimal operating temperature for the engine (80–90°C) and hydraulic system (60–80°C), preserving fuel efficiency, power output, and component lifespan.
4.Debris Protection: The optional fan guard blocks rocks, branches, or other debris from damaging the blades or entering the radiator—preventing costly cooling system failures.
- Compatible models
WHEEL LOADERS WA100 WA150 WA150L WA150PZ WA200 WA200L WA200PT WA200PTL WA250 WA250L WA250PT WA250PTL WA250PZ WA270 WA320 WA320L WA320PT Komatsu
- More other fan applied to KOMATSU heavey machine
| 425-07-11730 FAN |
| WA200, WA300, WA350, WA400, WA450, WA500, WA600, WA800 |
| 600-615-0905 FAN,(WF22A) |
| NTC, NTO |
| 600-635-5870 FAN |
| HM300, PC300LL, PC350LL, PC400, PC450, SAA6D114E, SAA6D125E |
| 6676-61-3130 FAN |
| NH |
| 600-615-1065 FAN |
| VT |
| 600-635-0801 FAN,COOLING |
| S6D125, S6D140, SA6D110, SA6D125, SA6D125E |
| 6631-61-2040 FAN HUB |
| NH |
| 600-635-8620 FAN,(STEEL) |
| PC200, PC220, S6D105, S6D95L, SA6D95L |
| 566-92-31310 FAN |
| HD325 |
| 6222-63-3500 FAN DRIVE ASS'Y |
| SAA6D108E |
| 600-614-9120 FAN,COOLING |
| S6D170 |
| 6162-63-4601 FAN PULLEY ASS'Y |
| S6D170, SA6D170E |

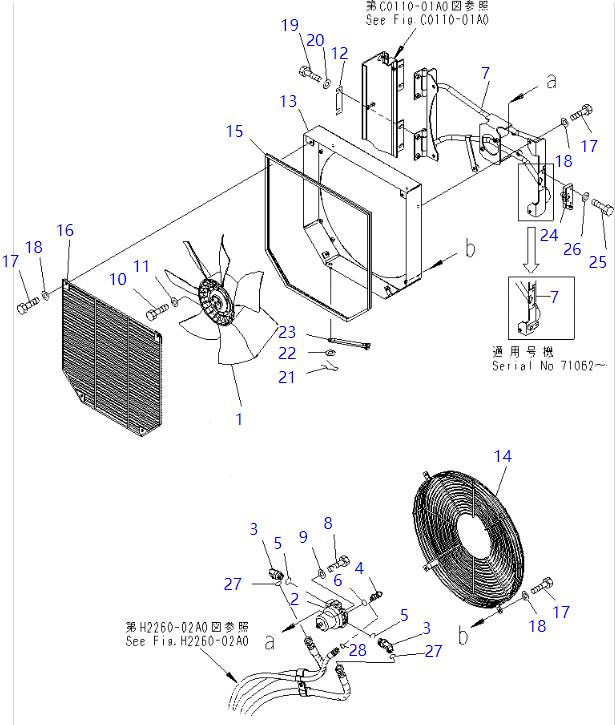

- Directory listing
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 419-03-33211 | [1] | FAN ASS'Y Komatsu | 7 kg. |
| ["SN: 71016-@"] | ||||
| 2 | 418-03-33241 | [1] | FAN MOTOR Komatsu | 5.8 kg. |
| ["SN: 71016-@"] | ||||
| 3 | 418-62-35111 | [2] | ELBOW Komatsu China | |
| ["SN: 71016-@"] | ||||
| 4 | 21W-62-43980 | [1] | ELBOW Komatsu | 0.095 kg. |
| ["SN: 70016-@"] | ||||
| 5 | 07000-12018 | [2] | O-RING Komatsu China | 0.001 kg. |
| ["SN: 70016-@"] analogs:["KB9511301800", "YM24311000180", "0700002018", "2083811590"] | ||||
| 6 | 07000-12011 | [1] | O-RING Komatsu | 0.001 kg. |
| ["SN: 70016-@"] analogs:["YM24315000110", "0700002011"] | ||||
| 7 | 418-03-33255 | [1] | BRACKET Komatsu | 10 kg. |
| ["SN: 71062-@"] | ||||
| 7 | 418-03-33254 | [1] | BRACKET Komatsu | 10 kg. |
| ["SN: 70016-71061"] analogs:["4180333255"] | ||||
| 8 | 01010-81035 | [2] | BOLT Komatsu | 0.033 kg. |
| ["SN: 70016-@"] analogs:["801015556", "01010D1035", "0101051035"] | ||||
| 9 | 01643-31032 | [2] | WASHER Komatsu | 0.054 kg. |
| ["SN: 70016-@"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 10 | 01010-80825 | [1] | BOLT Komatsu | 0.015 kg. |
| ["SN: 70016-@"] analogs:["0101050825", "01010D0825", "801015087"] | ||||
| 11 | 01643-30823 | [1] | WASHER Komatsu | 0.004 kg. |
| ["SN: 70016-@"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] | ||||
| 12 | 418-03-33190 | [3] | SHIM Komatsu China | |
| ["SN: 70016-@"] | ||||
| 13 | 418-03-33118 | [1] | SHROUD Komatsu | 5.05 kg. |
| ["SN: 71062-72051"] | ||||
| 13 | 418-03-33117 | [1] | SHROUD Komatsu | 5 kg. |
| ["SN: 70016-71061"] | ||||
| 14 | 418-03-33123 | [1] | GUARD,FAN Komatsu | 3.99 kg. |
| ["SN: 71016-@"] analogs:["4180333124"] | ||||
| 15 | 418-03-33131 | [1] | SEAL Komatsu China | |
| ["SN: 71016-@"] | ||||
| 16 | 418-03-33142 | [1] | GUARD,FAN Komatsu China | |
| ["SN: 71016-@"] analogs:["4180333143"] | ||||
| 17 | 01010-81020 | [12] | BOLT Komatsu | 0.161 kg. |
| ["SN: 71016-@"] analogs:["801014093", "0101051020", "801015108"] | ||||
| 19 | 01010-81230 | [4] | BOLT Komatsu | 0.043 kg. |
| ["SN: 71016-@"] analogs:["0101051230", "01010B1230"] | ||||
| 20 | 01643-31232 | [4] | WASHER Komatsu | 0.027 kg. |
| ["SN: 71016-@"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 21 | 04052-11038 | [1] | PIN,SNAP Komatsu | 1.44 kg. |
| ["SN: 71016-@"] analogs:["0405201038"] | ||||
| 22 | 01640-21016 | [1] | WASHER Komatsu | 0.177 kg. |
| ["SN: 71016-@"] analogs:["0164001016", "0164221016", "0164201016"] | ||||
| 23 | 418-03-33173 | [1] | STOPPER Komatsu China | |
| ["SN: 71016-@"] | ||||
| 24 | 418-03-33280 | [1] | LOCK Komatsu China | |
| ["SN: 71016-@"] | ||||
| 25 | 01010-80635 | [4] | BOLT Komatsu | 0.01 kg. |
| ["SN: 71016-@"] analogs:["0101030635", "801015069"] | ||||
| 26 | 01643-30623 | [4] | WASHER Komatsu | 0.002 kg. |
| ["SN: 71016-@"] analogs:["0164370623"] | ||||
| 27 | 02896-11012 | [2] | O-RING Komatsu China | 0.17 kg. |
| ["SN: 71016-@"] analogs:["855051014"] | ||||
| 28 | 02896-11008 | [1] | O-RING Komatsu China | 0.12 kg. |
| ["SN: 71016-@"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
