199-1153 1991153 Solenoid Valve Excavator Spare Parts For C4.4 C7.1 M315F M317F M318F
-
199-1153 1991153 Solenoid Valve Excavator Spare Parts For C4.4 C7.1 M315F M317F M318F
-
Specifiion
| Category | Electric Parts |
| Name | Solenoid Valve |
| Parts No | 199-1153 1991153 |
| Machine Number | M313D M315C M316C M317D2 M318C |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
- Key functions & working principle
| Working Principle | 1. The machine’s ECU sends an electrical signal (24V DC) to the solenoid coil, creating a magnetic field |
| 2. The magnetic field pulls the plunger (connected to the spool) against a return spring, moving the spool from its resting position | |
| 3. Spool movement opens/closes fluid passages (hydraulic oil/fuel), regulating flow direction/pressure to the target component (e.g., hydraulic cylinder, fuel injector) | |
| 4. When the electrical signal stops, the return spring pushes the spool back to its original position, closing the fluid passage (NC design) or opening it (NO design) | |
| 5. Pressure feedback ports (where fitted) monitor system pressure, enabling the ECU to adjust the solenoid signal for precise control | |
| Core Functions | 1. Hydraulic Control: Regulates flow/pressure of hydraulic oil to cylinders, pumps, and valves – enables smooth, precise operation of excavator booms/buckets or loader lift arms |
| 2. Fuel Injection Control: Modulates fuel flow to engine injectors (C7/C9 engines) – optimizes combustion efficiency and reduces emissions | |
| 3. Transmission Control: Triggers gear shifts in wheel loader transmissions – ensures smooth power delivery and fuel efficiency | |
| 4. Safety Interlock: In NC design, shuts off fluid flow if electrical power fails (prevents unintended movement of equipment) |
- Compatible models
EXCAVATOR M325D L MH M325D MH
WHEELED EXCAVATOR M313C M313D M315C M315D M315D2 M316C M316D M317D2 M318C M318C MH M318D M318D MH M322C M322D M322D MH M325C MH M330D C.aterpillar.
- More other valve applied to C A T heavey machine
| 1549023 VALVE-SAMPLING |
| 1090, 1190, 1190T, 120H, 120K, 120K 2, 1290T, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 1390, 140G, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160K, 160M 2, 160M 3, 160M 3 AWD, 16M, 236D, 242... |
| 7X3387 VALVE AS-FLUID SAMPLING |
| 3126E, 3208, 3508, 3508B, 3508C, 3512, 3512B, 3512C, 3516, 3516B, 3516C, 5130, 5130B, 5230, 5230B, 613C, 933, 933C, 938G, 939, 939C, 950F, 950F II, 950G, 953C, 960F, 962G, AP-200B, AP-800C, AP-800D, B... |
| 8C3345 VALVE AS-FLUID SAMPLING |
| 311F LRR, 793F, 793F AC, 793F CMD, 793F OEM, 793F-XQ, 795F AC, 795F XQ, 797, 797B, 797F, C175-16, C175-20, C7.1, CG137-12, CW-14, M313D, M315D |
| 1549025 VALVE-FLUID SAMPLING |
| 120K, 120K 2, 120M, 120M 2, 12H, 12K, 12M, 140H, 140K, 140K 2, 140M, 143H, 14H, 14M, 160H, 160K, 160M, 163H, 16H, 16M, 2290, 2390, 2391, 2491, 24M, 2590, 305.5, 306, 307C, 307D, 308C, 308D, 330C, 330C... |
| 1457390 VALVE-INLET |
| 120H, 120K, 12K, 12M, 135H, 140K, 140M, 160K, 3126, 3126B, 3126E, 322C, 322C FM, 324D, 324D L, 324D LN, 325C, 325C FM, 325D, 325D L, 328D LCR, 561N, 570B, 580B, 938G II, 950G II, 950H, 953C, 962G II, ... |
| 1478211 VALVE-EXHAUST |
| 120H, 120K, 120K 2, 12K, 12M, 135H, 140G, 140K, 140K 2, 140M, 160K, 3126, 3126B, 3126E, 322C, 322C FM, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325C, 325C FM, 325D, 325D FM, 325D FM LL, 325D L, 325... |
| 2527801 VALVE-INLET |
| 120H, 120K, 120K 2, 12K, 135H, 140G, 140K, 140K 2, 140M, 160K, 3126, 3126B, 3126E, 322C, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325C, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 328D LCR,... |
| 2418382 VALVE-INLET |
| 140M, 160M, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 511, 521, 522, 532, 541, 551, 552, 627G, 637D, 637E, 637G, 814F II, 815F II, 816F II, 973C, 97... |
| 2418383 VALVE-EXHAUST |
| 140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2 |

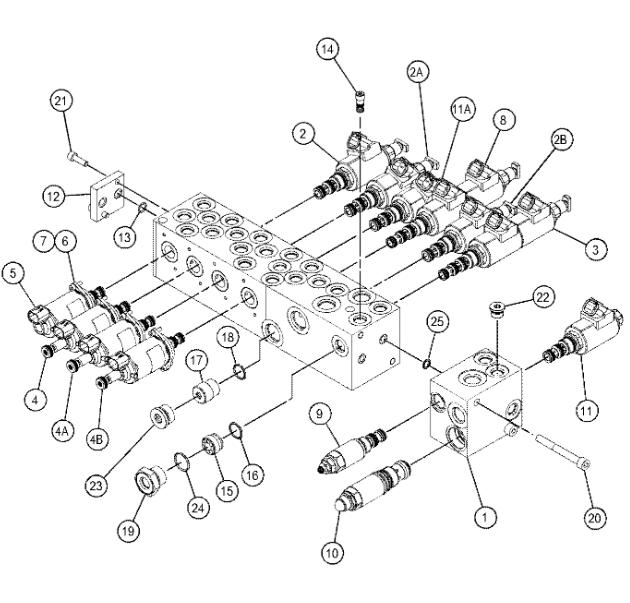

- Directory listing
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 446-1074 | [1] | BODY-VALVE | |
| 2 | 199-1153 Y | [1] | VALVE GP-SOLENOID (OSCILLATING AXLE) | |
| 2A. | 199-1153 Y | [1] | VALVE GP-SOLENOID (SWING BRAKE) | |
| 2B. | 199-1153 Y | [1] | VALVE GP-SOLENOID (IMPLEMENT LOCKOUT) | |
| 3 | 251-5594 Y | [1] | VALVE GP-SOLENOID (TRANSMISSION GEAR) | |
| 4 | 446-7142 Y | [1] | VALVE GP-SOLENOID (SWING PUMP) | |
| 4A. | 446-7142 Y | [1] | VALVE GP-SOLENOID (MAIN PUMP) | |
| 4B. | 446-7142 Y | [1] | VALVE GP-SOLENOID (PILOT, TRAVEL) | |
| 5 | 446-7144 Y | [1] | VALVE GP-SOLENOID (TRAVEL MOTOR) | |
| 6 | 368-6792 | [4] | FLANGE | |
| 7 | 8T-3998 M | [8] | BOLT (M4X0.7X12-MM) | |
| 8 | 446-7146 | [1] | VALVE GP-SOLENOID (TRANSMISSION GEAR) | |
| 195-7747 | [2] | SOLENOID | ||
| 204-5099 | [2] | ACTUATOR AS | ||
| (EACH INCLUDES) | ||||
| 177-6970 | [1] | SEAL-O-RING | ||
| 9 | 224-2983 Y | [1] | VALVE GP-PRESSURE REDUCING (MEDIUM PRESSURE) | |
| 10 | 148-7291 Y | [1] | VALVE GP-PILOT RELIEF | |
| 11 | 196-7486 Y | [1] | VALVE GP-SOLENOID (HEAVY LIFT) | |
| 11A. | 196-7486 Y | [1] | VALVE GP-SOLENOID (MEDIUM PRESSURE) | |
| 12 | 123-0175 | [1] | BODY | |
| 13 | 6V-8397 | [2] | SEAL-O-RING | |
| 14 | 451-2402 | [1] | VALVE AS-CHECK | |
| 15 | 123-0179 | [1] | VALVE GP-CHECK (IMPLEMENT LOWERING) | |
| 121-8112 | [1] | SEAL-O-RING | ||
| 16 | 242-4313 | [1] | SEAL-O-RING | |
| 17 | 284-8115 | [1] | VALVE AS-CHECK (PILOT RELIEF) | |
| 203-0213 | [1] | SEAL-O-RING | ||
| 18 | 7J-9108 | [1] | SEAL-O-RING | |
| 19 | 123-0173 | [1] | PLUG | |
| 20 | 6V-5196 M | [2] | BOLT-SOCKET HEAD (M8X1.25X80-MM) | |
| 21 | 8T-0269 M | [2] | BOLT-SOCKET HEAD (M6X1X20-MM) | |
| 22 | 360-3679 | [1] | PLUG-CONNECTOR (9/16-18-THD) | |
| 23 | 9S-8006 | [1] | PLUG (7/8-14-THD) | |
| 24 | 6V-3922 | [1] | SEAL-O-RING | |
| 25 | 161-6154 | [2] | SEAL-O-RING | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
