474-4960 4744960 Swing Device Excavator Spare Parts Fit For C7.1 M315F M317F M318F M323F
-
474-4960 4744960 Swing Device Excavator Spare Parts Fit For C7.1 M315F M317F M318F M323F
-
Specifiion
| Engine Number | C7.1 |
| Name | Swing Device |
| Parts No | 474-4960 4744960 |
| Machine Number | M315F M317F M318F M323F |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
- Key features & working principle
| Key Design Features | 1. Integrated Brake System: Spring-applied brake engages automatically when hydraulic pressure is lost (e.g., engine shutdown), preventing accidental upper carriage rotation and ensuring operator safety |
| 2. Planetary Gear Reduction: 3-stage gear set amplifies motor torque while reducing speed, ideal for heavy-load slewing without sacrificing control | |
| 3. Pressure Relief Valve: Built-in safety valve limits system pressure to prevent overloading of the swing device and hydraulic lines | |
| 4. Drain Port: Facilitates oil sampling and pressure monitoring for predictive maintenance | |
| 5. Sealed Housing: IP67 protection rating – prevents dust, moisture, and debris from entering the gearbox, extending service life | |
| Working Principle | 1. Power Input: Pressurized hydraulic fluid from the excavator’s main pump flows into the axial piston motor, driving the motor shaft to rotate. |
| 2. Torque Amplification: The motor shaft drives the sun gear of the planetary gearbox; the planetary gears rotate around the sun gear and the ring gear, amplifying torque through 3-stage reduction. | |
| 3. Rotation Drive: The final gear output shaft connects to the excavator’s upper carriage, transmitting torque to enable 360° slewing. | |
| 4. Braking Control: When the operator releases the swing joystick, hydraulic pressure to the brake is cut off; springs push the brake discs together to lock the swing device. Hydraulic pressure must be applied to release the brake for slewing. |
- Compatible models
EXCAVATORS M315F M317F M318F M323F C.ate.rpillar.
- More other drive applied to C A T heavey machine
| 4622943 DRIVE GP-FINAL |
| C A T |
| 4579542 DRIVE GP-SWING |
| C A T |
| 4512268 DRIVE GP-PUMP |
| C A T |
| 4385835 DRIVE & MTG GP-SWING |
| C A T |
| 4385834 DRIVE & MTG GP-SWING |
| C A T |
| 3926907 DRIVE GP-FAN |
| C A T |
| 5076558 DRIVE GP-FINAL |
| C A T |
| 5076557 DRIVE GP-FINAL |
| C A T |
| 4883075 DRIVE GP-SWING |
| C A T |

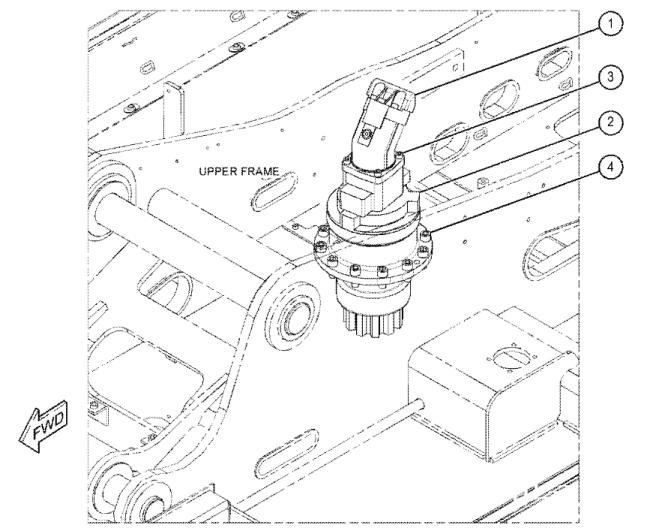

- Directory listing
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 438-5765 Y | [1] | MOTOR GP-SWING | |
| 2 | 474-4960 Y | [1] | DRIVE GP-SWING | |
| 3 | 101-7404 M | [4] | BOLT-SOCKET HEAD (M10X1.5X30-MM) | |
| 4 | 107-9403 M | [12] | BOLT-SOCKET HEAD (M16X2X35-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
