708-1H-03310 7081H03310 Valve Assembly KOMATSU Wheel Loader Spare Parts For WA450 WA470 WA480
-
708-1H-03310 7081H03310 Valve Assembly KOMATSU Wheel Loader Spare Parts For WA450 WA470 WA480
-
Specifiion
| Category | Hydraulic Pump, Loader Pump |
| Name | Valve Assembly |
| Parts No | 708-1H-03310 7081H03310 |
| Machine Number | WA450 WA470 WA480 WA500 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
- Functional role
1. Flow & Direction Control: Distributes hydraulic oil to different actuators based on operator input (joystick commands), enabling precise movements of the excavator’s boom, arm, bucket, and tracks.
2. Pressure Regulation: Integrates relief valves to limit system pressure (max working pressure: 34.3 MPa / 350 kgf/cm²), preventing overload damage to hydraulic pumps and cylinders.
3. Load Sensing: Optimizes oil flow according to real-time load demands, reducing energy loss and improving fuel efficiency during light-load operations.
- Compatible models
WHEEL LOADERS WA450 WA470 WA480 WA500 Komatsu
- More other valve applied to KOMATSU heavey machine
| 6217-71-6820 VALVE |
| GD755, HD785, HM300, HM350, HM400, SAA12V140E, SAA6D125E, SAA6D140E, WA470, WA480, WA500 |
| 709-10-52902 VALVE ASS'Y |
| WA800 |
| 581-40-54140 VALVE ASS'Y |
| HD1200, HM300, HM300TN, HM350, HM400 |
| 2692-8-32700 VALVE |
| JV06H, JV06HM, JV08H, JV08HM |
| 723-20-95200 VALVE ASS'Y |
| PC160, PC180, PC190 |
| 709-10-52901 VALVE ASS'Y |
| WA800 |
| 702-23-23001 VALVE ASS'Y,STEERING DEMAND |
| WA600 |
| 714-07-15210 VALVE,MAIN |
| WA300, WA320, WA350, WA380, WA400, WA420, WA450, WA470 |
| 424-64-15433 VALVE ASS'Y |
| WA400 |
| 709-12-11304 VALVE ASS'Y |
| WA600 |
| 709-10-51500 VALVE ASS'Y,RELIEF |
| WA600 |
| 6127-51-6771 VALVE,BYPASS |
| S4D155, S6D155, SA6D155 |

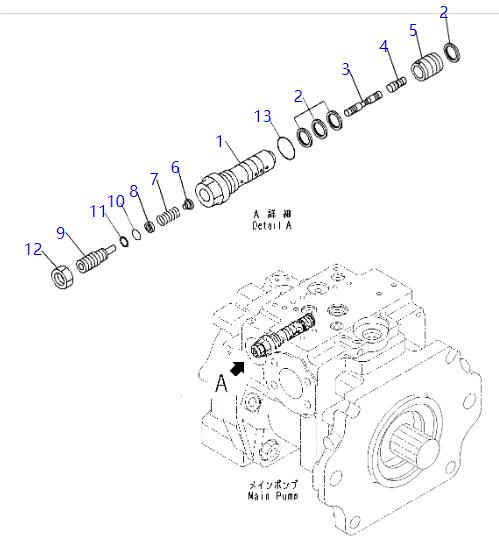

- Directory listing
| Pos. | Part No | Qty | Parts name | Comments |
| 708-1H-00030 | [1] | Pump Assembly Komatsu | 134 kg. | |
| ["SN: 55479-UP"] |$0. | ||||
| 708-1H-03310 | [1] | Valve Assembly, LS Komatsu | 0.35 kg. | |
| ["SN: 55479-UP"] |$1. | ||||
| 1 | 708-2L-35311 | [1] | Sleeve Komatsu | 0.36 kg. |
| ["SN: 55479-UP", "SCC: C2"] | ||||
| 2 | 708-2L-24680 | [4] | Seal Komatsu | 0.003 kg. |
| ["SN: 55479-UP"] | ||||
| 3 | 708-2G-15412 | [1] | Spool Komatsu | 0.01 kg. |
| ["SN: 55479-UP", "SCC: C2"] | ||||
| 4 | 708-2L-28540 | [1] | Piston Komatsu | 0.01 kg. |
| ["SN: 55479-UP", "SCC: C2"] | ||||
| 5 | 708-2L-35360 | [1] | Sleeve Komatsu | 0.04 kg. |
| ["SN: 55479-UP", "SCC: C2"] | ||||
| 6 | 708-2G-15440 | [1] | Seat Komatsu China | |
| ["SN: 55479-UP", "SCC: C2"] | ||||
| 7 | 708-2L-35410 | [1] | Spring Komatsu | 0.01 kg. |
| ["SN: 55479-UP", "SCC: C2"] | ||||
| 8 | 708-2L-35341 | [1] | Seat Komatsu | 0.001 kg. |
| ["SN: 55479-UP", "SCC: C2"] | ||||
| 9 | 708-2L-35351 | [1] | Plug Komatsu | 0.04 kg. |
| ["SN: 55479-UP", "SCC: C2"] | ||||
| 10 | 07000-B1009 | [1] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 55479-UP", "SCC: C2"] analogs:["7082L23910"] | ||||
| 11 | 07001-01009 | [1] | Ring, Back-up Komatsu | 0.001 kg. |
| ["SN: 55479-UP", "SCC: C2"] | ||||
| 12 | 01583-11408 | [1] | Nut Komatsu | 0.4 kg. |
| ["SN: 55479-UP", "SCC: C2"] analogs:["801713411"] | ||||
| 13 | 07002-62434 | [1] | O-ring Komatsu | 0.001 kg. |
| ["SN: 55479-UP"] analogs:["7081W28910"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
