425-07-21180 4250721180 Compressor KOMATSU Wheel Loader Air Conditioner Parts For WA800-3E0
-
425-07-21180 4250721180 Compressor KOMATSU Wheel Loader Air Conditioner Parts For WA800-3E0
-
Specifiion
| Category | Air Conditioner Parts |
| Name | Compressor |
| Parts No | 425-07-21180 4250721180 |
| Machine Number | WA100 WA120 WA150 WA180 WA200 WA250 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
- Core function
1.It is a key component of the vehicle's AC system. Driven by the engine, it compresses low - pressure, low - temperature refrigerant vapor into high - pressure, high - temperature vapor.
2.This compressed vapor then enters the condenser to release heat, which is the first and vital step in the refrigeration cycle of the AC system, enabling the cabin to be cooled effectively.
- Compatible models
COMPACTORS WF450 WF450T WF550 WF550T WF650T
CRAWLER STABILIZERS CS360 CS360SD
DUMP TRUCKS HD255 HD325 HD405 HD465 HD605 HD785 HD985
WHEEL DOZERS WD500 WD600 WD900
WHEEL LOADERS WA100 WA120 WA120L WA150 WA180 WA180L WA180PT WA200 WA250 WA250L WA250PT WA300 WA300L WA320 WA350 WA380 WA400 WA420 WA450 WA450L WA470 WA500 WA600 WA700 WA800 WA800L WA900 WA900L WR11 Komatsu
- More other compressor applied to KOMATSU heavey machine
| GJ1134889 COMPRESSOR |
| D37EX, D37PX, D39EX, D39PX, D61EX, D61EXI, D61PX, D61PXI, HM300, HM400, WA270, WA320, WA380, WA380Z, WA470, WA500 |
| GJ1146520 COMPRESSOR |
| D37EX, D37PX, D39EX, D39PX, D61EX, D61EXI, D61PX, D61PXI, HM300, HM400, WA270, WA320, WA380, WA380Z, WA470, WA500 |
| 569-07-88121 COMPRESSOR ASS'Y |
| SAA6D170E |
| 203-978-5540 COMPRESSOR |
| PC100, PC100L, PC120, PC130, PC150, PC60, PC60L, PC70, PW100S |
| SP315237 COMPRESSOR,COVER |
| SAA6D108E |
| 2208-6013A COMPRESSOR 10PA 15C(4PK) |
| SOLAR |
| 2208-6013B COMPRESSOR |
| DL200, DL250, DL300, DX140W, DX180, DX190W, DX210W, DX225, DX255, DX300, DX300LL, DX340, DX420, DX480, DX520, MEGA, SOLAR |
| 565-95-21110 COMPRESSOR |
| HD200, WF22A, WF22T |
| M720181300100 COMPRESSOR ASS'Y |
| EC105V, EC105VS |
| M721156000010 COMPRESSOR ASS'Y |
| EC210Z |
| M721095000010 COMPRESSOR ASS'Y |
| EC105Z, EC105ZS |
| 103-Y79-5331 COMPRESSOR ASS'Y |
| D21A, D21P |
| 56E-07-21120 COMPRESSOR ASS'Y |
| HD255, HM250, HM300 |

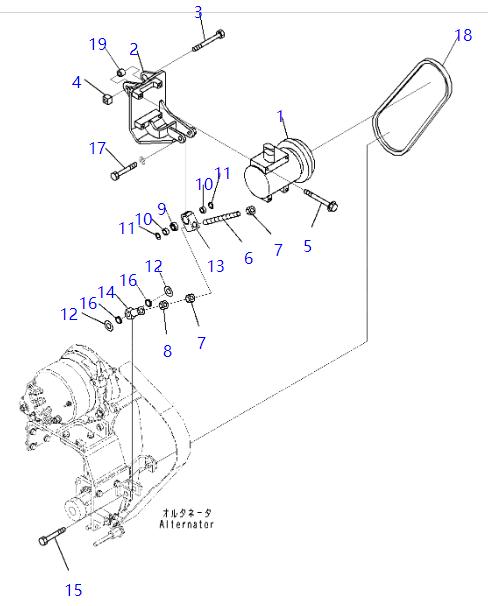

- Directory listing
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 425-07-21180 | [1] | Compressor Assembly Komatsu | 8.502 kg. |
| ["SN: 70030-UP"] | ||||
| 2 | 427-S62-2331 | [1] | Bracket Komatsu China | |
| ["SN: 70030-UP"] analogs:["427S622330"] | ||||
| 3 | 427-T46-1460 | [1] | Bolt Komatsu | 0.13 kg. |
| ["SN: 70030-UP"] analogs:["6221816850"] | ||||
| 4 | 427-T46-1340 | [1] | Nut Komatsu | 0.057 kg. |
| ["SN: 70030-UP"] | ||||
| 5 | 01435-00885 | [4] | Bolt Komatsu | 0.035 kg. |
| ["SN: 70030-UP"] | ||||
| 6 | 561-07-63420 | [1] | Rod Komatsu | 0.3 kg. |
| ["SN: 70030-UP"] | ||||
| 7 | 01580-11613 | [2] | Nut Komatsu | 0.03 kg. |
| ["SN: 70030-UP"] | ||||
| 8 | 01582-11613 | [1] | Nut Komatsu | 0.03 kg. |
| ["SN: 70030-UP"] | ||||
| 9 | 419-43-17590 | [1] | Bushing Komatsu | 0.04 kg. |
| ["SN: 70030-UP"] | ||||
| 10 | 427-T46-1430 | [2] | Spacer Komatsu | 0.02 kg. |
| ["SN: 70030-UP"] | ||||
| 11 | 700-84-14790 | [2] | Shim, T=0.8mm Komatsu | 0.003 kg. |
| ["SN: 70030-UP"] | ||||
| 12 | 195-40-31530 | [2] | Shim, T=0.5mm Komatsu | 0.01 kg. |
| ["SN: 70030-UP"] | ||||
| 13 | 427-T46-1420 | [1] | Block Komatsu | 0.28 kg. |
| ["SN: 70030-UP"] | ||||
| 14 | 04250-81683 | [1] | Rod End Komatsu | 0.22 kg. |
| ["SN: 70030-UP"] | ||||
| 15 | 01018-21665 | [1] | Bolt Komatsu | 0.134 kg. |
| ["SN: 70030-UP"] | ||||
| 16 | 04254-11645 | [2] | Spacer Komatsu | 0.009 kg. |
| ["SN: 70030-UP"] | ||||
| 17 | 01018-21465 | [1] | Bolt Komatsu | 0.103 kg. |
| ["SN: 70030-UP"] | ||||
| 18 | 04120-21748 | [1] | V-belt Komatsu China | 0.27 kg. |
| ["SN: 70030-UP"] analogs:["0412121748"] | ||||
| 19 | 175-79-33240 | [1] | Collar Komatsu China | |
| ["SN: 70030-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
