155264A1 Pinion Case Excavator Spare Parts Fit For 9010 9010B CX130 CX130B
- 155264A1 Pinion Case Excavator Spare Parts Fit For 9010 9010B CX130 CX130B
- Specifiion
| Name | Radiator |
| Parts No | 155264A1 |
| Machine Model | 9010 9010B CX130 CX130B CX130C CX130D CX130D LC |
| Category | Swing Reduction Gear Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Core function
| Transmits power from the drive shaft or differential to the ring gear, final drive, or wheel hub |
| Engages with larger gears to provide torque for traveling, steering, and working operations |
| Ensures smooth power delivery and stable machine movement |
- Compatible models
HEAVY EQUIPMENT 9010 9010B CX130 CX130B CX130C CX130D CX130D LC Case
- More other pinion parts fit for CASE machine
| R19890 PINION |
| 1000 |
| N8463 PINION |
| 19 |
| D38350 PINION GEAR - driven |
| 19 |
| 160007A1 PINION |
| 9040B, 9030B |
| 150310A1 PINION |
| 9030 |
| 155281A1 PINION |
| 9030 |
| 160518A1 PINION |
| 9020B, 9030B |
| 150004A1 PINION |
| 9020 |
| 160820A1 PINION |
| 9010B |

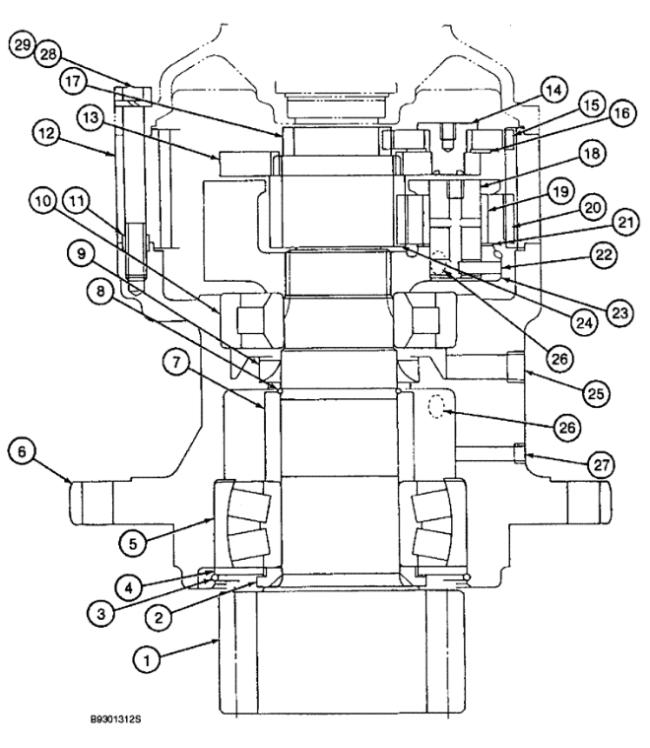

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| . . | 155776A1 | [1] | MOTOR | SUM GEAR ASSEMBLY reduction, Includes: Ref. 1-29 |
| 1 | NSS | [1] | NOT SOLD SEPARAT | CON SHAFT drive |
| 2 | 155599A1 | [1] | COLLAR | SUM SEAL lip, Serial Range: cover-collar |
| 3 | 155603A1 | [1] | RING, SNAP | SUM RING retaining |
| 4 | 155606A1 | [1] | PLATE | SUM shaft end |
| 5 | 156128A1 | [1] | ROLLER BEARING,70 mm ID x 150 mm OD x 51 mm | SUM roller |
| 6 | NSS | [1] | NOT SOLD SEPARAT | CON HOUSING gear assembly |
| 7 | 155600A1 | [1] | BUSHING | SUM SPACER bearing |
| 8 | 155604A1 | [1] | RING, SNAP | SUM RING retaining |
| 9 | 153924A1 | [1] | OIL SEAL | SUM oil |
| 10 | 156129A1 | [1] | BEARING, ROLLER, CYL,65mm ID x 140mm OD x 33mm W | SUM roller inner |
| 11 | 155601A1 | [4] | COLLAR | SUM SLEEVE bolt |
| 12 | 155262A1 | [1] | RING | SUM GEAR ring |
| . . | 155824A1 | [1] | HOLDER | SUM CARRIER ASSEMBLY planetary, Includes: Ref. 13-16 |
| 13 | NSS | [1] | NOT SOLD SEPARAT | CON CARRIER planetary |
| 14 | NSS | [3] | NOT SOLD SEPARAT | CON PIN gear |
| 15 | NSS | [3] | NOT SOLD SEPARAT | CON GEAR planetary carrier |
| 16 | NSS | [3] | NOT SOLD SEPARAT | CON PLATE thrust |
| 17 | 155265A1 | [1] | SUN GEAR | SUM GEAR sun |
| 18 | 155357A1 | [3] | SHAFT | SUM planetary gear secondary |
| 19 | 155377A1 | [3] | BUSHING | SUM - Shaft |
| 20 | 155263A1 | [3] | GEAR | SUM planetary |
| 21 | 155376A1 | [3] | PLATE, THRUST | SUM PLATE thrust |
| 22 | 738-1825 | [3] | LOCK PIN,M8 x 25, Slotted | CAS Superseded by part number: 87016713 |
| 23 | NSS | [1] | NOT SOLD SEPARAT | CON CARRIER planetary, secondary |
| 24 | 155264A1 | [1] | PINION | SUM GEAR sun |
| 25 | 151030A1 | [1] | PLUG | SUM port |
| 26 | 151026A1 | [2] | PLUG | SUM port |
| 27 | 151022A1 | [1] | PLUG | SUM hex socket, special |
| 28 | 156192A1 | [8] | BOLT | SUM BOLT hex, special |
| 29 | 892-10012 | [8] | LOCK WASHER,M12 | CAS WASHER lock, 12 mm |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
