283-2762 2832762 Wiring Harness Excavator Engine Parts For 3066 C7 C9 E323D E324D E325D
- 283-2762 2832762 Wiring Harness Excavator Engine Parts For 3066 C7 C9 E323D E324D E325D
- Specifiion
| Name | Wiring Harness |
| Parts No | 283-2762 2832762 |
| Machine Model | E312D E320D E323D E324D E325D E329D E330D E336D |
| Category | Engine Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Functions
| 1.Power Distribution: Delivers electrical power from the battery and alternator to all electrical components in the chassis and cab. |
| 2.Signal Transmission: Transmits critical data and control signals between the Engine Control Unit (ECU), sensors (e.g., temperature, pressure, position), actuators (e.g., solenoids), and the operator's control panel. |
| 3.System Integration: Connects and integrates the engine management system, hydraulic control system, monitoring system, and safety systems. |
- Compatible models
MOBILE HYD POWER UNIT 323D L 325D 336D L
- More other harness parts fit for C A T machine
| 2851975 HARNESS AS-WIRING |
| 120M, 12M, 2470C, 320D GC, 320D L, 323D L, 553C, 559, 613G, 924H, 924HZ, 928H, 928HZ, 938H, 953D, 963D, AP-600D, AP-655D, AP1000E, AP1055E, BG600D, BG655D, C6.6, CP-56, CP-64, CP-76, CS-56, CS-56B, CS... |
| 3552682 HARNESS AS-LIGHTING |
| AP-600D, AP-655D |
| 3159766 HARNESS AS-CHASSIS |
| AP-600D, BG600D |
| 3555999 HARNESS AS-CHASSIS |
| AP-600D, BG600D |
| 3535791 HARNESS AS-WIRING |
| AP-600D, AP1000E, AP1055E, AP555E, BG1000E, BG1055E, BG500E, BG600D |
| 2920973 HARNESS AS-CHASSIS |
| AP-600D |
| 3556000 HARNESS AS-CHASSIS |
| AP-600D |
| 3116188 HARNESS AS-CONSOLE |
| AP-600D |
| 3090939 HARNESS AS-WIRING |
| CS-56, CS-563E |
| 4289421 HARNESS AS-SENSOR |
| CP-54B, CP-68B, CP-74B, CS-54B, CS-56B, CS-64B, CS-66B, CS-68B, CS-74B, CS-76B, CS-78B |
| 2526629 HARNESS AS-CHASSIS |
| M322D |
| 2526631 HARNESS AS-CHASSIS |
| M322D |
| 2605542 HARNESS AS-ENGINE |
| 120M, 12M, 320D GC, 320D L, 323D L, 924H, 924HZ, 928H, 928HZ, AP1000E, AP1055E, C6.6, D6N, R1300G II |
| 2382666 HARNESS AS-ENGINE |
| C6.6, R1300G II |
| 3083378 HARNESS AS-SENSOR |
| C4.4 |
| 3045164 HARNESS AS-ENGINE |
| C4.4, CW-34 |
| 2880515 HARNESS AS-ENGINE |
| C4.4, CW-34 |
| 3045165 HARNESS AS-ENGINE |
| C4.4, CB-54, CB-64, CP-44, CS-44, CS-54, CS-54B, D3K XL, D4K XL, D5K LGP, M313D, M315D |
| 2519503 HARNESS AS-MOTOR |
| G3512, G3516 |
| 2519410 HARNESS AS-ENGINE |
| G3512 |
| 2519501 HARNESS AS-SWITCH |
| G3508, G3512, G3516 |
| 2519409 HARNESS AS-ENGINE |
| G3508 |
| 2519403 HARNESS AS-POWER |
| G3508 |
| 2988840 HARNESS AS-POWER |
| G3508, G3508B, G3512, G3512B, G3516, G3516B |

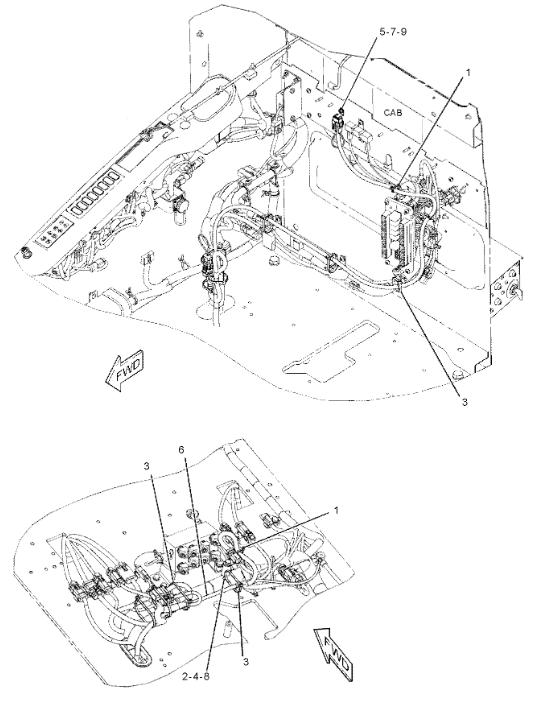

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 3S-2093 | [3] | STRAP-CABLE | |
| 2 | 4I-7889 | [1] | SPACER (11X25X45-MM THK) | |
| 3 | 7K-1181 | [10] | STRAP-CABLE | |
| 4 | 116-0118 | [1] | CLIP | |
| 5 | 149-5050 | [1] | RELAY (24-VOLT)(GPS) | |
| 6 | 283-2762 | [1] | HARNESS AS-CONTROL | |
| 7 | 5C-2890 M | [1] | NUT (M6X1-THD) | |
| 8 | 8T-5005 M | [1] | BOLT (M10X1.5X70-MM) | |
| 9 | 9X-8256 | [1] | WASHER (6.6X12X2-MM THK) | |
| M | METRIC PART |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
