SA7117-34360 SA711734360 Gear Excavator Travel Gearbox Parts For L40 L40B L45 L45B
- SA7117-34360 SA711734360 Gear Excavator Travel Gearbox Parts For L40 L40B L45 L45B
- Specifiion
| Name | Gear |
| Parts No | SA7117-34360 SA711734360 |
| Machine Model | L40 L40B L45 L45B |
| Category | Travel Gearbox Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Functions
| Transmits torque from the hydraulic travel motor to the planetary gear train. |
| Drives the planet gears, which in turn drive the ring gear and track drive mechanism. |
| Provides the necessary speed reduction and torque amplification for moving the machine. |
- Compatible models
L40 L40B L45 L45B Heavy
- More other gear parts fit for machine
| VOE20555182 Gear |
| EW180B, EW200B, L40, L40B, L45, L45B |
| ZM2905560 Gear |
| L35, L35B, L40, L40B, L45, L45B |
| VOE11306524 Gear pump |
| L40, L40B, L45, L45B |
| ZM4050611 Gear ring |
| L40, L40B, L45, L45B |
| VOE20555503 Gear |
| BL60, BL60B, BL61, BL61B, BL61PLUS, BL70, BL70B, BL71, BL71B, BL71PLUS, L40, L40B, L45, L45B, L45F, L50E, L50F, P4370B, P5320B ABG, PT220, SD110, SD110B |
| VOE21249506 Gear |
| DD120C, DD140C, EC160C, EC180C, EC210C, EC220D, EC220E, EC235C, EC235D, EC250D, EC250E, EC290B, EC300D, EC300E, EC350D, ECR145C, ECR235C, ECR305C, EW145B, EW160D, EW160E, EW180D, EW180E, EW205D, EW210... |
| VOE20900806 Gear |
| EC240B, EC240C, EC290B, EC290C, EW145B, FC2924C, FC3329C, G700B MODELS, L110E, L110F, L120E, L120F, L40B, L45B, L60E, L70E, L90E |
| ZM2901383 Gear |
| L40, L40B, L45, L45B |
| VOE15109423 Gear pump |
| L40, L40B |
| ZM2906588 Gear |
| L45, L45B |
| ZM2909921 Gear |
| L45B |
| VOE14565928 Gear |
| ECR145C, ECR145D, ECR145E |
| VOE471528 Gear |
| 5350B, A20, A20C, A25B, A25C,EC200, EC200 ÅKERMAN, EC230B, EC230B ÅKERMAN, EC280, EC300 ÅKERMAN, EW200, EW200 ÅKERMAN, EW230B, EW230B ÅKERMAN, L120 |

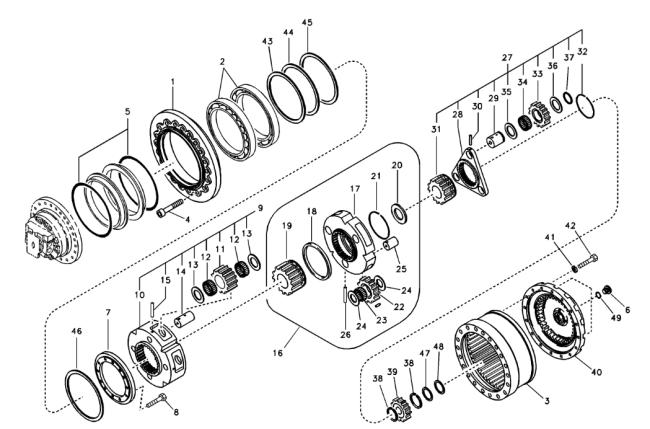

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14528735 | [1] | Gearbox | ||
| 1 | VOE14528715 | [1] | Housing | |
| 2 | VOE14538940 | [2] | Bearing | |
| 3 | SA7117-34120 | [1] | Ring gear | |
| 4 | SA9016-21818 | [20] | Hex. socket screw | |
| 5 | VOE14528720 | [1] | Seal | |
| 6 | VOE14883847 | [3] | Plug | |
| 7 | SA7117-34190 | [1] | Retainer | |
| 8 | VOE997446 | [12] | Hexagon screw | |
| 9 | SA7117-34200 | [1] | Planet carrier | |
| 10 | SA7117-34210 | [1] | Carrier | |
| 11 | SA7117-34220 | [4] | Planetary gear | |
| 12 | SA7117-34230 | [8] | Needle bearing | |
| 13 | SA7117-34240 | [8] | Washer | |
| 14 | SA7117-34250 | [4] | Pin | |
| 15 | VOE13951991 | [4] | Spring pin | |
| 16 | VOE14528721 | [1] | Planet carrier | |
| 17 | VOE14528722 | [1] | Carrier | |
| 18 | SA1036-00310 | [1] | Thrust ring | |
| 19 | SA7117-34280 | [1] | Gear | |
| 20 | SA8230-21020 | [1] | Thrust ring | |
| 21 | SA7117-34290 | [1] | Retaining ring | |
| 22 | SA7117-34300 | [3] | Planetary gear | |
| 23 | SA7117-34310 | [3] | Needle bearing | |
| 24 | VOE14556491 | [6] | Washer | |
| 25 | SA7117-34330 | [3] | Pin | |
| 26 | SA9325-06012 | [3] | Spring pin | |
| 27 | SA7117-34340 | [1] | Planet carrier | |
| 28 | SA7117-34350 | [1] | Planet carrier | |
| 29 | SA7117-34370 | [3] | Pin | |
| 30 | SA9325-06012 | [3] | Spring pin | |
| 31 | SA7117-34360 | [1] | Gear | |
| 32 | SA7117-34440 | [1] | Retaining ring | |
| 33 | SA7117-34420 | [3] | Planetary gear | |
| 34 | SA7117-34380 | [3] | Needle bearing | |
| 35 | SA7117-34390 | [3] | Washer | |
| 36 | SA7117-34400 | [3] | Washer | |
| 37 | SA9541-01034 | [3] | Retaining ring | |
| 38 | SA1036-00290 | [2] | Thrust ring | |
| 39 | SA7117-34430 | [1] | Gear | |
| 40 | VOE14601854 | [1] | Cover | |
| 41 | VOE955922 | [16] | Spring washer | |
| 42 | VOE993025 | [16] | Hexagon screw | |
| 43 | SA7117-34140 | [1] | Shim | 0.1t |
| 44 | SA7117-34150 | [1] | Shim | 0.3t |
| 45 | SA7117-34160 | [1] | Shim | 0.5t |
| 46 | SA7117-34170 | [1] | Shim | 1.0t |
| 47 | SA1036-00450 | [1] | Shim | |
| 48 | SA1036-00460 | [1] | Shim | |
| 49 | VOE990557 | [3] | O-ring | |
| 100 | VOE14526221 | [1] | Overhaul kit |
