SA7118-38100 VOE14542165 VOE14569767 Swing Gearbox Excavator Spare Parts For EC290C FC3329C
- SA7118-38100 VOE14542165 VOE14569767 Swing Gearbox Excavator Spare Parts For EC290C FC3329C
- Specifiion
| Name | Swing Gearbox |
| Parts No | SA7118-38100 VOE14542165 VOE14569767 |
| Machine Model | EC290 EC290B EC290C FC3329C |
| Category | Swing Motor With Mounting Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Core purpose
| Torque Amplification: |
| Converts the motor’s high speed into massive rotational torque to turn the heavy upper structure smoothly, even under load (e.g., digging, lifting). |
| Speed Control: |
| Reduces swing speed for precise control and stability, preventing dangerous, fast rotation. |
| Power Transmission: |
| Transmits power from the hydraulic swing motor to the slew ring (large bearing gear) that connects upper and lower frames. |
- Compatible models
EXCAVATORS EC290 EC290B EC290C FC3329C
- More other swing gearbox parts fit for V O L V O machine
| VOE14563340 Swing gear |
| EC135B, EC140C, ECR145C, EW140C, EW145B |
| VOE14577175 Swing gear |
| EC140B, EC140C, EC140D, ECR145C, ECR145D, EW140C, EW145B |
| VOE14549861 Swing motor |
| EC140C, ECR145C, ECR145D, ECR145E |
| VOE14539045 Swing motor |
| EC140C, EC140D, EC140E |
| VOE14559150 Swing motor |
| EW140E, EW145B |
| VOE14642271 Swing gearbox |
| EC120D, EC140D, EC140E |
| VOE14673318 Swing motor |
| EC120D, EC140D |
| VOE14666710 Swing gear |
| EC140D, EC140E, ECR145E, EW140E |
| VOE14699273 Swing motor |
| ECR145C, ECR145E, EW140E, EW145B |
| VOE14563573 Swing gearbox |
| ECR145C, ECR145D, ECR145E |
| VOE14504426 Swing Gear |
| EC150, EC160B |
| VOE14595269 Swing motor |
| EC300D, PL3005D |
| VOE14573670 Swing motor |
| EC460B, EC460C, PL4608, PL4611 |
| VOE14598750 Swing motor |
| EC250D |
| VOE14550091 Swing motor |
| EC210B |
| VOE14592186 Swing motor |
| ECR305C |
| VOE14647524 Swing gear |
| EC220E, ECR235E, EW180C, EW180D, EW180E, EW205D, EW210D |
| VOE14658026 Swing gear |
| EW160D, EW160E |
| VOE14579709 Swing motor |
| EC460C, EC460CHR |
| VOE14524188 Swing motor |
| EC135B, EC140B |
| VOE14577175 Swing gear |
| EC140B, EC140C, EC140D, ECR145C, ECR145D, EW140C, EW145B |

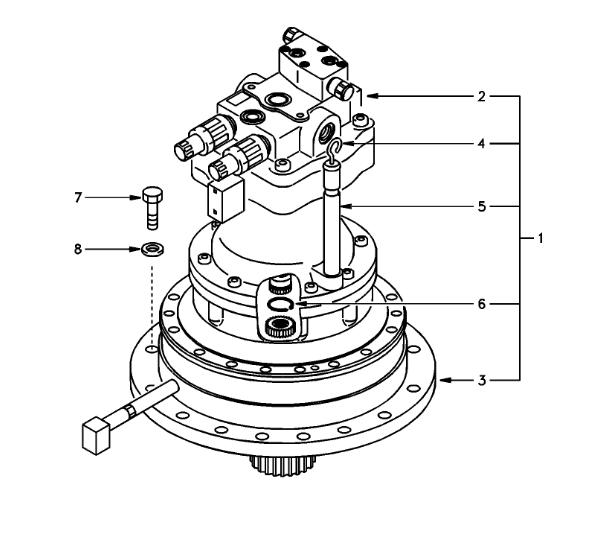

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | SA7118-38000 | [1] | Drive Unit | |
| 2 | SA1142-00651 | [1] | Swing motor | |
| 3 | SA7118-38100 | [1] | Gearbox | |
| 4 | SA7118-30600 | [1] | Gauge | |
| 5 | SA7118-38610 | [1] | Pipe | |
| 6 | VOE914470 | [1] | Snap ring | |
| 7 | SA9011-22014 | [14] | Bolt | |
| 8 | VOE60110287 | [14] | Washer |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
