259-5069 2595069 Wiring Harness Excavator Spare Parts Fit For C13 C-13 345C 345CL
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
3-7 working days
Brand:
OEM
Product Description
- 259-5069 2595069 Wiring Harness Excavator Spare Parts Fit For C13 C-13 345C 345CL
- Specifiion
| Name | Wiring Harness |
| Parts No | 259-5069 2595069 |
| Machine Model | 345C 345C L 345C MH |
| Engine Model | C13 C-13 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
EXCAVATOR 345C 345C L 345C MH
SHOVEL LOGGER 345C
WHEELED EXCAVATOR W345C MH
SHOVEL LOGGER 345C
WHEELED EXCAVATOR W345C MH
- More other wiring harness parts fit for C A T machine
| 4190841 HARNESS AS-ENGINE |
| 140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 511, 521, 521B, 522, 5... |
| 2153249 HARNESS AS-ENGINE |
| 12H, 140M, 140M 2, 160M, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 340D L, 511, 521, 521B, 522, 522B, 532, 541, 541 ... |
| 2011283 HARNESS ASSEMBLY |
| 12H, 330C, 330C FM, 330C L, 330C MH, 627G, 637G, C-9, D6R II, MTC735, TK711, TK721, TK722, TK732 |
| 2306279 HARNESS AS-ENGINE |
| 12H, 330C, 330C FM, 330C L, 330C MH, 627G, 637D, 637G, C-9, D6R II, MTC735, TK711, TK721, TK722, TK732, TK741, TK751, TK752 |
| 2118002 HARNESS AS-WINDOW WIPER |
| 320C, 322C, 325C, 330C, 330C L |
| 2183573 HARNESS AS-CHASSIS |
| 330C |
| 2200920 HARNESS AS-BOX |
| 330C |
| 2256266 HARNESS AS-SWITCH |
| 330C |
| 2256265 HARNESS AS-PANEL |
| 330C |
| 2335018 HARNESS AS |
| 330C |
| 2041829 HARNESS AS |
| 330C L |
| 2041830 HARNESS AS |
| 330C L |

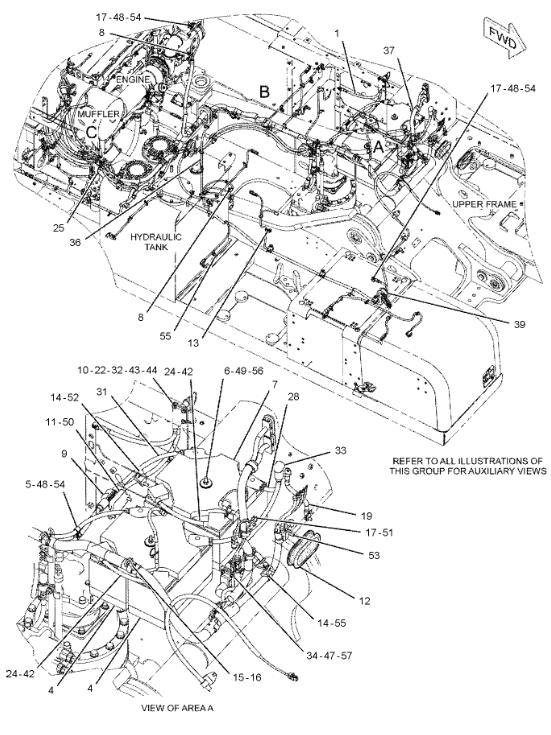

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 2G-1830 | [1] | RECEPTACLE AS (AUXILIARY START) | |
| 1S-7251 | [2] | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | ||
| 5P-0747 E | CABLE (00-GA, BLACK)(49-CM) | |||
| 5P-0761 E | CABLE (00-GA, RED)(56-CM) | |||
| 2 | 2G-8767 | [5] | WASHER (10.5X60X3-MM THK) | |
| 3 | 3S-2093 C | [33] | STRAP-CABLE | |
| 4 | 3T-5760 | [4] | BATTERY GP (12-VOLT, 750-CCA) | |
| 5 | 4K-8864 | [4] | CLIP | |
| 6 | 5I-8304 | [2] | ROD | |
| 7 | 6W-6005 | [2] | HOLD-DOWN-BATTERY | |
| 8 | 7I-2673 | [4] | STRAP-CABLE | |
| 9 | 8N-0869 | [1] | COVER-TERMINAL (RED) | |
| 10 | 8S-2634 | [1] | COVER AS | |
| 11 | 9W-0742 Y | [1] | BLOCK GP-JUNCTION (BATTERY) | |
| 12 | 087-4587 C | [2] | GROMMET (115-MM ID) | |
| 13 | 111-4836 C | [8] | CLIP | |
| 14 | 111-4837 | [23] | CLIP | |
| 15 | 111-4838 | [9] | CLIP | |
| 16 | 111-4839 | [9] | STRAP | |
| 17 | 116-0118 | [8] | CLIP | |
| 18 | 128-8886 | [1] | STRAP AS-GROUND | |
| 19 | 170-9328 | [1] | STRAP AS-GROUND | |
| 20 | 132-1820 | [1] | BRACKET AS | |
| 21 | 132-1843 | [2] | BRACKET AS | |
| 22 | 146-6747 | [1] | FILM-INFORMATION (24-VOLT) | |
| 23 | 146-7112 | [1] | GROMMET | |
| 24 | 170-6929 | [2] | CABLE AS | |
| (EACH INCLUDES) | ||||
| 5P-0761 E | CABLE (00-GA, RED)(31-CM) | |||
| 9G-0002 | [1] | COVER AS-TERMINAL (RED) | ||
| 9G-0005 | [1] | COVER AS-TERMINAL (BLACK) | ||
| 8C-5918 | [1] | TERMINAL AS-BATTERY (NEGATIVE) | ||
| 8T-9756 | [1] | TERMINAL AS-BATTERY (POSITIVE) | ||
| (EACH TERMINAL AS INCLUDES) | ||||
| 1M-6119 | [1] | BOLT (5/16-18X1.375-IN) | ||
| 1M-6120 | [1] | NUT (5/16-18-THD) | ||
| 25 | 170-6977 | [1] | BRACKET AS | |
| 26 | 184-9159 C | [1] | GROMMET | |
| 27 | 204-1673 | [2] | STRAP-CABLE | |
| 28 | 231-1698 | [1] | CABLE AS | |
| 5P-0747 E | CABLE (00-GA, BLACK)(25-CM) | |||
| 1S-7252 | [1] | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | ||
| 7N-5274 | [1] | COVER AS-TERMINAL (BLACK) | ||
| 9G-8909 | [1] | COVER-TERMINAL (BLACK) | ||
| 3S-6050 | [1] | TERMINAL AS-BATTERY (NEGATIVE) | ||
| 1M-6119 | [1] | BOLT (5/16-18X1.375-IN) | ||
| 1M-6120 | [1] | NUT (5/16-18-THD) | ||
| 29 | 231-1700 | [1] | CABLE AS | |
| 5P-0761 E | CABLE (00-GA, RED)(399-CM) | |||
| 1S-7251 | [1] | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | ||
| 8N-1725 | [1] | COVER AS-TERMINAL (RED) | ||
| 3S-6049 | [1] | TERMINAL AS-BATTERY (POSITIVE) | ||
| 1M-6119 | [1] | BOLT (5/16-18X1.375-IN) | ||
| 1M-6120 | [1] | NUT (5/16-18-THD) | ||
| 30 | 231-1709 | [1] | CABLE AS | |
| 5P-0761 E | CABLE (00-GA, RED)(388-CM) | |||
| 1S-7251 | [2] | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | ||
| 8N-0869 | [2] | COVER-TERMINAL (RED) | ||
| 31 | 231-1710 | [1] | CABLE AS | |
| 5P-0761 E | CABLE (00-GA, RED)(40-CM) | |||
| 1S-7251 | [1] | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | ||
| 8N-0869 | [1] | COVER-TERMINAL (RED) | ||
| 8N-1725 | [1] | COVER AS-TERMINAL (RED) | ||
| 3S-6049 | [1] | TERMINAL AS-BATTERY (POSITIVE) | ||
| 1M-6119 | [1] | BOLT (5/16-18X1.375-IN) | ||
| 1M-6120 | [1] | NUT (5/16-18-THD) | ||
| 32 | 231-1806 | [1] | BRACKET | |
| 33 | 238-1485 | [1] | CABLE AS | |
| 5P-0747 E | CABLE (00-GA, BLACK)(54-CM) | |||
| 1S-7252 | [1] | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | ||
| 7N-5274 | [1] | COVER AS-TERMINAL (BLACK) | ||
| 3S-6050 | [1] | TERMINAL AS-BATTERY (NEGATIVE) | ||
| 1M-6119 | [1] | BOLT (5/16-18X1.375-IN) | ||
| 1M-6120 | [1] | NUT (5/16-18-THD) | ||
| 34 | 238-2535 | [1] | BRACKET AS | |
| 35 | 251-0144 | [1] | HARNESS AS-WIRING (COUNTERWEIGHT) | |
| 243-4507 | [1] | RECEPTACLE AS-CONNECTOR (4-PIN) | ||
| 36 | 259-4937 C | [1] | HARNESS AS-CHASSIS | |
| 102-8802 | [3] | KIT-RECEPTACLE (2-PIN) | ||
| (EACH INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 155-2270 | [4] | KIT-CONNECTING PLUG (2-PIN) | ||
| (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) | ||||
| 243-4510 | [1] | RECEPTACLE AS-CONNECTOR (12-PIN) | ||
| 37 | 259-5068 C | [1] | HARNESS AS-CHASSIS | |
| 8T-8827 | BOOT (RED) | |||
| 102-8802 | [4] | KIT-RECEPTACLE (2-PIN) | ||
| (EACH INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 102-8803 | [1] | KIT-RECEPTACLE (3-PIN) | ||
| 102-8804 | [1] | KIT-RECEPTACLE (4-PIN) | ||
| 176-9299 | [1] | KIT-RECEPTACLE (3-PIN) | ||
| (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 155-2270 | [11] | KIT-CONNECTING PLUG (2-PIN) | ||
| (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) | ||||
| 155-2271 | [1] | KIT-CONNECTING PLUG (4-PIN) | ||
| 155-2260 | [1] | KIT-CONNECTING PLUG (3-PIN) | ||
| (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) | ||||
| 153-2620 | [1] | PLUG AS-CONNECTOR (54-PIN, BLACK) | ||
| 163-6759 | [1] | SEAL | ||
| 153-2630 | [1] | PLUG AS-CONNECTOR (54-PIN, BROWN) | ||
| 163-6759 | [1] | SEAL | ||
| 127-5485 | [1] | PLUG AS-CONNECTOR (1-PIN) | ||
| 174-3016 | [1] | PLUG AS-CONNECTOR (3-PIN) | ||
| 230-4009 | [1] | PLUG AS-CONNECTOR (12-PIN) | ||
| 230-4011 | [6] | PLUG AS-CONNECTOR (2-PIN) | ||
| 230-5008 | [1] | PLUG AS-CONNECTOR (4-PIN) | ||
| 230-5010 | [3] | PLUG AS-CONNECTOR (6-PIN) | ||
| 231-2295 | [1] | PLUG AS-CONNECTOR (8-PIN) | ||
| 230-4013 | [1] | PLUG AS-CONNECTOR (3-PIN) | ||
| 127-5484 | [1] | RECEPTACLE AS-CONNECTOR (1-PIN) | ||
| 163-6637 | [1] | RECEPTACLE AS-CONNECTOR (54-PIN, BLACK) | ||
| 243-4505 | [4] | RECEPTACLE AS-CONNECTOR (2-PIN) | ||
| 243-4506 | [1] | RECEPTACLE AS-CONNECTOR (3-PIN) | ||
| 243-4508 | [3] | RECEPTACLE AS-CONNECTOR (6-PIN) | ||
| 243-4509 | [2] | RECEPTACLE AS-CONNECTOR (8-PIN) | ||
| 38 | 259-5069 C | [1] | HARNESS AS-ENGINE | |
| 3S-2093 | [2] | STRAP-CABLE | ||
| 127-5486 | [1] | RECEPTACLE AS-CONNECTOR (1-PIN) | ||
| 243-4509 | [1] | RECEPTACLE AS-CONNECTOR (8-PIN) | ||
| 127-5483 | [1] | PLUG AS-CONNECTOR (1-PIN) | ||
| 231-2295 | [1] | PLUG AS-CONNECTOR (8-PIN) | ||
| 160-7689 | [1] | PLUG AS-CONNECTOR (70-PIN) | ||
| 159-9322 | [1] | SEAL-O-RING | ||
| 155-2270 | [2] | KIT-CONNECTING PLUG (2-PIN) | ||
| (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) | ||||
| 39 | 133-4419 | [1] | GROMMET | |
| 40 | 148-5018 | [1] | GROMMET | |
| 41 | 4I-5106 | [1] | GROMMET | |
| 42 | 5C-7261 M | [2] | NUT (M8X1.25-THD) | |
| 43 | 5C-9553 M | [4] | BOLT (M6X1X16-MM) | |
| 44 | 5P-4115 | [4] | WASHER-HARD (7.2X19X2-MM THK) | |
| 45 | 6G-2256 | [4] | CLAMP | |
| 46 | 6G-2263 | [4] | SPACER (10.5X19X28.5-MM THK) | |
| 47 | 6V-5683 M | [4] | BOLT (M6X1X16-MM) | |
| 48 | 8T-4121 C | [59] | WASHER-HARD (11X21X2.5-MM THK) | |
| 49 | 8T-4133 M | [2] | NUT (M10X1.5-THD) | |
| 50 | 8T-4136 M | [6] | BOLT (M10X1.5X25-MM) | |
| 51 | 8T-4137 CM | [40] | BOLT (M10X1.5X20-MM) | |
| 52 | 8T-4185 M | [4] | BOLT (M10X1.5X50-MM) | |
| 53 | 8T-4186 M | [1] | BOLT (M10X1.5X40-MM) | |
| 54 | 8T-4191 M | [5] | BOLT (M10X1.5X16-MM) | |
| 55 | 8T-4195 M | [7] | BOLT (M10X1.5X30-MM) | |
| 56 | 8T-4226 | [2] | WASHER-PLATED (10.5X45X3-MM THK) | |
| 57 | 9X-8256 | [4] | WASHER (6.6X12X2-MM THK) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| E | ORDER BY THE CENTIMETER | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
- We could supply the following spare part
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
