333-2990 3332990 Sun Gear Excavator Final Drive Parts Fitting For C7.1 323
- 333-2990 3332990 Sun Gear Excavator Final Drive Parts Fitting For C7.1 323
- Specifiion
| Name | Sun Gear |
| Parts No | 333-2990 3332990 |
| Machine Model | 365B 365B II 365B L 365C 365C L 365C L MH 374D L |
| Category | Final Drive |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
-
Key design features
| Precision Machining: Precise tooth profile and spline geometry for perfect meshing and minimal backlash. |
| Heat Treatment: Case-hardened and tempered for extreme durability, wear resistance, and fatigue life under heavy loads. |
| OEM Quality: Engineered to match specifications for balanced wear and system performance with other gearbox components. |
- Compatible models
EXCAVATOR 365B 365B II 365B L 365C 365C L 365C L MH 374D L 374F L
MOBILE HYD POWER UNIT 365C L
- More other sun gear parts fit for C A T machine
| 3203061 SENSOR-PRESSURE |
| 120M 2, 12M 2, 12M 3, 12M 3 AWD, 140M 2, 140M 3, 140M 3 AWD, 160M 2, 160M 3, 160M 3 AWD, 2384C, 2484C, 2570C, 2670C, 2864C, 312E, 312E L, 314E CR, 314E LCR, 316E L, 318E L, 320E, 320E L, 320E LN, 320E... |
| 3203062 SENSOR GP-PRESSURE |
| 120M 2, 12M 2, 12M 3, 12M 3 AWD, 140M 2, 140M 3, 140M 3 AWD, 160M 2, 160M 3, 160M 3 AWD, 2384C, 2484C, 2570C, 2670C, 2864C, 312E, 312E L, 314E CR, 314E LCR, 316E L, 318E L, 320E, 320E L, 320E LN, 320E... |
| 3203063 SENSOR GP-PRESSURE |
| 120M 2, 12M 2, 12M 3, 12M 3 AWD, 140M 2, 140M 3, 140M 3 AWD, 160M 2, 160M 3, 160M 3 AWD, 2384C, 2484C, 2570C, 2670C, 2864C, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D2, 313D2 LGP, 314E CR, 314E LCR,... |
| 1166680 SENSOR AS-SPEED |
| 3054, 3056, 554, 793F, 793F AC, 793F CMD, 793F OEM, 793F-XQ, 795F AC, 795F XQ, 797, 797B, 797F, 914G, 924G, 924GZ, AP-650B, AP-800D, BG-225C, C175-16, C175-20, C3.3, C4.4, C6.6, C7.1, CB-434D, CB-534D... |
| 2746719 SENSOR GP-PRESSURE |
| 120K, 120K 2, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 2290, 2390, 2391, 2491, 24M, 2590, 2864C, 324D, 324D ... |
| 3447389 SENSOR GP-PRESSURE |
| 120M, 120M 2, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 2384C, 2484C, 308E SR, 525D, 535D, 545D, 555D, 559C, 579C, 824K, 834K, 836K, 844K, ... |
| 2905825 SENSOR GP-PRESSURE |
| 924G, 924GZ, 924H, 924HZ, 928H, 928HZ, 930G, AP-600D, AP-655D, AP1000E, AP1055E, AP555E, BG1000E, BG1055E, BG500E, CW-34, IT28G, M313C, M313D, M315C, M315D, M315D 2, M316C, M316D, M317D 2, M318C, M318... |
| 3491178 SENSOR-PRESSURE |
| 525D, 535D, 545D, 824K, 825K, 826K, 834K, 836K, 844K, 924K, 930K, 938K, 950K, 962K, 963D, 966K, 966M, 966M XE, 972K, 972M, 972M XE, 980H, 980K, 980M, 982M, 988H, 988K, 990K, 992K, 993K, 994H, CB-44B, ... |
| 3447390 SENSOR GP-PRESSURE |
| 311F LRR, 312E, 312E L, 314E CR, 314E LCR, 316E L, 318E L, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 323D2 L |

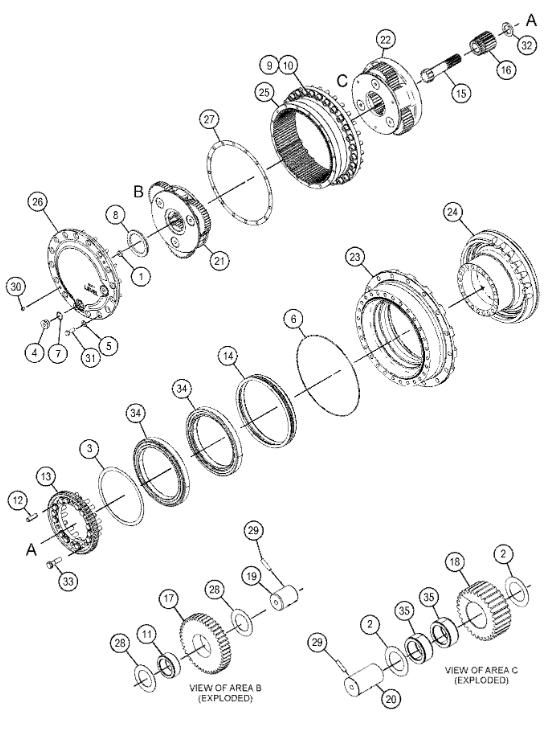

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 094-0580 | [1] | PLATE (10-MM THK) | |
| 2 | 094-0611 | [6] | WASHER (47.3X76X1-MM THK) | |
| 3 | 096-1773 B | [1] | SHIM (0.15-MM THK) | |
| 096-1774 B | [1] | SHIM (0.3-MM THK) | ||
| 096-1775 B | [1] | SHIM (0.4-MM THK) | ||
| 096-1776 B | [1] | SHIM (0.5-MM THK) | ||
| 096-1777 B | [1] | SHIM (0.6-MM THK) | ||
| 096-1778 B | [1] | SHIM (0.7-MM THK) | ||
| 096-1779 B | [1] | SHIM (0.8-MM THK) | ||
| 096-1780 B | [1] | SHIM (1-MM THK) | ||
| 096-1781 B | [1] | SHIM (1.6-MM THK) | ||
| 4 | 3E-2338 | [2] | PLUG-PIPE | |
| 5 | 5P-8245 | [16] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 6 | 6D-0692 | [1] | SEAL-O-RING | |
| 7 | 7M-8485 | [2] | SEAL-O-RING | |
| 8 | 7Y-1558 | [1] | SPACER (90X119.6X7.5-MM THK) | |
| 9 | 8T-0348 M | [28] | BOLT-SOCKET HEAD (M16X2X50-MM) | |
| 10 | 9X-8268 | [28] | WASHER (17.5X30X3.5-MM THK) | |
| 11 | 346-5215 | [3] | BEARING AS | |
| 12 | 114-1539 | [6] | PIN-DOWEL | |
| 13 | 148-4715 | [1] | GEAR-COUPLING (55-TEETH) | |
| 14 | 174-4874 | [1] | SEAL GP-DUO-CONE | |
| 15 | 333-2989 | [1] | GEAR-SUN (12-TEETH) | |
| 16 | 333-2990 | [1] | GEAR-SUN (18-TEETH) | |
| 17 | 333-2991 | [3] | GEAR-PLANETARY (38-TEETH) | |
| 18 | 333-2992 | [3] | GEAR-PLANETARY (35-TEETH) | |
| 19 | 333-2993 | [3] | SHAFT | |
| 20 | 333-2994 | [3] | SHAFT | |
| 21 | 333-2995 | [1] | CARRIER-PLANETARY | |
| 22 | 333-2996 | [1] | CARRIER-PLANETARY | |
| 23 | 333-2998 | [1] | HOUSING | |
| 24 | 455-4087 | [1] | HOUSING-MOTOR (LH) | |
| 25 | 457-7977 | [1] | GEAR-RING (90-TEETH) | |
| 26 | 480-6771 | [1] | COVER | |
| 27 | 498-9005 | [1] | GASKET | |
| 28 | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) | |
| 29 | 095-0891 | [6] | PIN-SPRING | |
| 30 | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 31 | 143-0811 M | [16] | BOLT (12X1.75X35-MM) | |
| 32 | 165-5785 | [1] | SPACER (40X60.9X1-MM THK) | |
| 33 | 227-6034 M | [14] | BOLT-FLANGE HEAD (M16X2X60-MM) | |
| 34 | 296-6220 | [2] | BALL BEARING | |
| 35 | 296-6268 | [6] | BEARING AS-ROLLER | |
| B | USE AS REQUIRED | |||
| M | METRIC PART |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
