YN40FU0001F1 Slewing Ring Applied To Kobelco SK200 SK210 SK200 MARK IV SK200-5 SK200-6 SK200-8
- YN40FU0001F1 Slewing Ring Applied To Kobelco SK200 SK210 SK200 MARK IV SK200-5 SK200-6 SK200-8
- Description
Slewing ring or swing bearing is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load. Slewing ring support the excavator cabin.
- Product description
| Excavator spare parts name | Slewing Ring |
| Equipment Model | SK200,SK200LC,SK210,SK210LC |
| Parts egory | Excavator gear parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
| Apply for | Kobelco |
- We can supply these KOBELCO models as following:
(SK200) - MARK IV EXCAVATOR ASN YNU0501 (1/95-12/97)
(07-001) - LOW INSTALLATION STANDARD CRAWLER - (SC) » YN40FU0001F1
(07-002) - LOW INSTALLATION LONG CRAWLER - (LC) » YN40FU0001F1
(07-003) - LOW INSTALLATION HIGH AND WIDE LONG CRAWLER - (HWLC) » YN40FU0001F1
(SK200) - MARK IV EXCAVATOR BTW YNU0201 - YNU0500 (1/97-12/97)
(07-001) - LOW INSTALLATION » YN40FU0001F1
(07-002) - LOW INSTALLATION » YN40FU0001F1
(SK200LC) - MARK IV EXCAVATOR ASN YQU3101 (1/95-12/95)
(07-001) - LOW INSTALLATION STANDARD CRAWLER - (SC) » YN40FU0001F1
(07-002) - LOW INSTALLATION LONG CRAWLER - (LC) » YN40FU0001F1
(07-003) - LOW INSTALLATION HIGH AND WIDE LONG CRAWLER - (HWLC) » YN40FU0001F1
(SK200LC) - MARK IV EXCAVATOR BTW YQU2001 - YQU3000 (1/95-12/95)
(07-001) - LOW INSTALLATION » YN40FU0001F1
(07-002) - LOW INSTALLATION » YN40FU0001F1
(SK210) - MARK IV EXCAVATOR ASN YNU0501 (1/04-12/04)
(07-001) - LOW INSTALLATION, (STANDARD CRAWLER-(SC) » YN40FU0001F1
(07-002) - LOW INSTALLATION, (LONG CRAWLER-LC) » YN40FU0001F1
(07-003) - LOW INSTALLATION, (HIGH & WIDE LONG CRAWLER-HWLC) » YN40FU0001F1
(SK210LC) - MARK IV EXCAVATOR ASN YQU3101 (1/00-12/02)
(07-001) - LOW INSTALLATION, (STANDARD CRAWLER-(SC) » YN40FU0001F1
(07-002) - LOW INSTALLATION, (LONG CRAWLER-LC) » YN40FU0001F1
(07-003) - LOW INSTALLATION, (HIGH & WIDE LONG CRAWLER-HWLC) » YN40FU0001F1

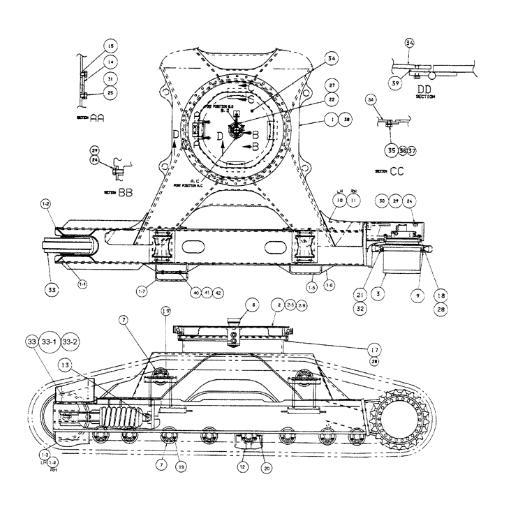

- Drawing
| Pos. | Part No | Qty | Parts name | Comments |
| . . | 24100J19880F1 | [1] | LOW ASSY | |
| . . | 24100J19880F2 | [1] | LOW ASSY | |
| 1 | YN02FU0003P1 | [1] | FRAME, LOW, F1 ONLY | |
| 1-1. | 2418P51109 | [2] | GUIDE, LH (WELD-ON), F1 ONLY | |
| 1-2. | 2418P51111 | [2] | GUIDE, RH (WELD-ON), F1 ONLY | |
| 1-3. | YN07FU1003P1 | [2] | GUIDE | KOB LH, (WELD-ON), F1 ONLY |
| 1-4. | YN07FU1004P1 | [2] | GUIDE | KOB RH, (WELD-ON), F1 ONLY |
| 1-5. | YN41CU0001P1 | [4] | STEP | KOB (WELD-ON), F1 ONLY |
| 1-6. | 2418P51131 | [8] | PLATE, (WELD-ON), F1 ONLY | |
| 1-7. | YN41CU0003P1 | [4] | STEP | KOB (WELD-ON), F1 ONLY |
| 2 | YN40FU0001F1 | [1] | SLEWING RING | KOB Superseded by part number: 24100N7440F1 |
| 2-5. | YN40FU0001S005 | [2] | SEAL | KOB |
| 2-9. | YN40FU0001S009 | [1] | LUBE NIPPLE | KOB |
| 3 | YN15V00007F1 | [2] | HYDRAULIC MOTOR | KOB SEE FIGURE 07-009 Superseded by part number: YN53D00001F2 |
| 6 | 24100U1524F1 | [1] | FLEXIBLE JOINT | KOB HYDRAULIC SWIVEL JOINT |
| 7 | 24100N6419F2 | [20] | TRACK ROLLER | KOB SEE FIGURE 07-005 Superseded by part number: YN64D00013F1 |
| 9 | 2404N414 | [2] | SPROCKET,21 teeth, 664mm OD | KOB Superseded by part number: 2404N262 |
| 10 | 2414N4188D2 | [1] | COVER | KOB |
| 11 | 2414N4188D1 | [1] | COVER | KOB |
| 12 | 2422N880 | [2] | GUIDE | KOB |
| 13 | 2444P803 | [2] | LUBE NIPPLE,5/8" - 18 x 64mm L, 19mm Hex | KOB 5/8" - 18 UNF, Straight |
| 14 | 2422T556 | [1] | PLATE | KOB 90x50x Th 06mm |
| 15 | 2418T12274 | [1] | PACKING | KOB 90x50x Th 05mm -- Rubber |
| 17 | ZS13C20070 | [36] | SCREW | KOB M20x2.50x70mm |
| 18 | ZS13C20065 | [31] | SCREW | KOB M20x2.50x65mm |
| 19 | 2420P1580D2 | [80] | SCREW,M18 x 1.5 x 70mm | KOB M18x1.50x70mm |
| 20 | 2420P1580D1 | [8] | SCREW,M18 x 1.5 x 40mm | KOB M18x1.50x40mm |
| 21 | ZS13C18060 | [44] | SCREW | KOB M18x2.0x60mm |
| 22 | ZS13C16110 | [1] | SCREW | KOB M16x2.0x110mm |
| 24 | ZS13C12025 | [13] | SCREW | KOB M12x1.75x25mm Superseded by part number: ZS18C12025 |
| 25 | ZS13C10014 | [2] | SCREW | KOB M10x1.50x14mm Superseded by part number: ZS18C10014 |
| 27 | ZN13C16013 | [1] | NUT | KOB M16x2.0mm |
| 28 | ZW13H20000 | [70] | WASHER | KOB ID 20 x OD 40 x Th 4.5mm |
| 29 | ZW11X12000 | [13] | WASHER | KOB ID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 30 | ZW22X12000 | [10] | LOCK WASHER | KOB ID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 31 | ZW22X10000 | [2] | LOCK WASHER | KOB ID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 32 | 2418T17441D2 | [44] | WASHER | KOB |
| 33 | 24100P4395F1 | [2] | WHEEL ASSY | KOB |
| 33-1. | 24100N6417F1 | [1] | IDLER | KOB SEE FIGURE 07-004 |
| 33-2. | 24100N6421F1 | [1] | SPRING | KOB ADJUSTER, SEE FIGURE 07-008 Superseded by part number: 24100N5945F2M |
| 34 | 2418P51118 | [1] | PIN | KOB UNDERCOVER |
| 35 | ZS13C18050 | [8] | SCREW | KOB M18x2.0x50mm |
| 36 | ZW13H18000 | [8] | WASHER | KOB ID 19 x OD 36 x Th 4.5mm |
| 37 | ZW11X18000 | [8] | WASHER | KOB ID 18 x OD 34 x Th 3.2mm |
| 40 | ZS18C12050 | [8] | SCREW,Hex, M12 x 50mm | KOB M12x1.75x50mm |
| 41 | ZW26X12000 | [8] | LOCK WASHER | KOB ID 12 x OD 21 x Th 3.0mm |
| 42 | ZN18C12010 | [8] | NUT | KOB M12x1.75mm |
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
