160094A1 160144A1 Final Drive Hub Housing Gear Excavator Parts Applied To Sumitomo SH200
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
3-7 working days
Brand:
OEM
Product Description
- 160094A1 160144A1 Final Drive Hub Housing Gear Excavator Parts Applied To Sumitomo SH200
- Description
160094A1 and 160144A1 are a matched set of Final Drive components for Case, Link-Belt, and Sumitomo heavy machinery (e.g., SH200 excavators). They work together in the travel drive gearbox to deliver torque to the undercarriage.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Spec Sheet
| PARTS NAME | SH200 Final drive HUB |
| EQUIPMENT | SH200 Excavator |
| Category | Excavator final drive |
| ITEM CONDITION | New |
| Appliion | Replacement |
| MATERIAL | Steel |
| PROCESSING | Casting |
| MOQ | 1 pcs |
- Parts gear Case catalog
| J918776 GEAR |
| 2555, PX190, 420, PX215, 420 TIER 3, PX240, 620, 625, 2166, 2188, 2366, 2377, 2388, 2577, 2588, CX330, 6TAA-8304 275HP, 6TAA-8304 305HP, CPX420, 6TAA-9004 350HP, CPX610, CPX620, STEIGER 280, STEIGER 3... |
| J905427 GEAR |
| 5140, 688BCK, PX190, 5150, 1666, PX215, 420 TIER 3, CX240, PX240, 5230, 1680, 5240, 5250, 855D, 1688, 1800, 2144, 2166, 688C, 2188, 1822, 2344, 750K, 2366, W14B, 1844, 2377, W14C, 2388, 2022, 2044, 25... |
| J918777 GEAR |
| 2555, 7130, PX190, 420, MX210, 721B, 821B, MX180, 721C, 821C, 2166, 2188, MX220, PX215, 2366, 2377, MX230, SPX4260, 2388, 7140, 7150, MX200, 7220, PX240, 885, 9040B, 7230, 9045B, 7240, 7250, 8910, 892... |
| J931387 GEAR |
| 586E, 580L, 85XT, 2144, 621B, 570LXT, 90XT, 580SL, 585E, 888, 584E, 9030B, 590SL, 9020B, 95XT, 9010B, 590L |
| J931379 GEAR |
| 721C, 821C, 8910, 2166, 8920, 721B, 2188, 9040B, 8930, 821B, 9045B, 8940, MX180, 885, 7240 |
| 160520A1 GEAR |
| CX210LR, 9020B, CX160B, CX160C, CX160D LC, CX210B, CX210C LC, 9030B, CX225SR, CX210N, CX210C LR, CX210D LC LR, CX210BNLC, CX210C NLC, CX210D NLC, CX160, CX235C SR, CX210 |
| 160145A1 GEAR WHEEL |
| 9040B, 9030B |

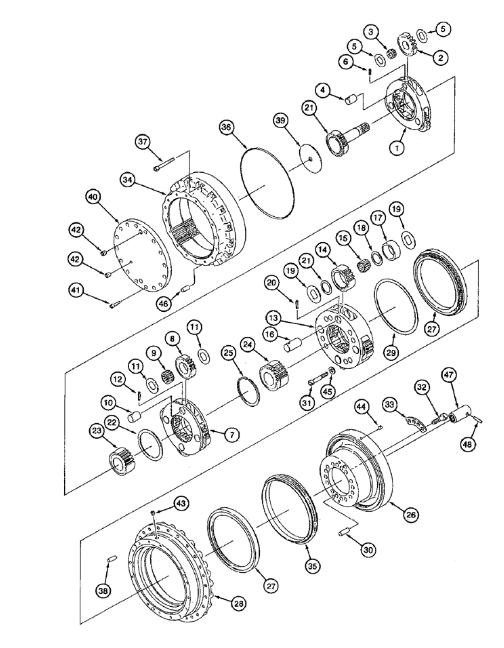

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| . . | 160142A1 | [1] | REDUCER | SUM TRANSMISSION ASSEMBLY - without track drive motor, Includes: Ref. 1 - 6 |
| . . | 160146A1 | [1] | GEAR WHEEL | SUM CARRIER ASSEMBLY A - planetary gear; Incl Ref 1 - 6 |
| 1 | 160094A1 | [1] | GEAR WHEEL | SUM CARRIER A - planetary gears |
| 2 | 160004A1 | [3] | SUN GEAR | SUM GEAR - planetary |
| 3 | 160278A1 | [3] | BEARING, NEEDLE,30mm ID x 40mm OD x 19.8mm W | SUM NEEDLE - bearing |
| 4 | 160029A1 | [3] | LARGE PIN | SUM SHAFT - gear |
| 5 | 160291A1 | [6] | THRUST WASHER | SUM WASHER - thrust |
| 6 | 160109A1 | [2] | PIN, ROLL | SUM PIN - roll, special |
| . . | 160144A1 | [1] | HOLDER | SUM CARRIER ASSEMBLY B - planetary gear, replaces 160144A1, carrier assembly B (replaces 164714A1 ), Includes: Ref. 7 - 12 |
| 7 | 160095A1 | [1] | GEAR WHEEL | SUM CARRIER B - planetary gears |
| 8 | 160005A1 | [4] | SUN GEAR | SUM GEAR - planetary |
| 9 | 160273A1 | [4] | NEEDLE BEARING,35mm ID x 51mm OD x 24.8mm W | SUM BEARING - roller |
| 10 | 160030A1 | [4] | SHAFT | SUM - gear |
| 11 | 160043A1 | [3] | THRUST WASHER | SUM WASHER - thrust |
| 12 | 160098A1 | [4] | PIN, ROLL | SUM PIN - roll, special |
| . . | 160145A1 | [1] | GEAR WHEEL | SUM CARRIER ASSEMBLY C - planetary gear, Includes: Ref. 13 - 20 |
| 13 | 160207A1 | [1] | HOLDER | SUM CARRIER C - planetary gears |
| 14 | 160010A1 | [4] | SUN GEAR | SUM GEAR - planetary |
| 15 | 160326A1 | [68] | ROLLER | SUM NEEDLE - bearing |
| 16 | 160031A1 | [4] | SHAFT | SUM - gear |
| 17 | 160037A1 | [4] | BUSHING | SUM RACE - bearing |
| 18 | 160093A1 | [8] | COLLAR | SUM - needle retaining |
| 19 | 160044A1 | [8] | THRUST WASHER | SUM WASHER - thrust |
| 20 | 160099A1 | [4] | PIN, ROLL | SUM PIN - roll, special |
| 21 | 160007A1 | [1] | PINION | SUM GEAR - drive |
| 22 | 160038A1 | [1] | PLATE, THRUST | SUM PLATE - thrust |
| 23 | 160008A1 | [1] | SUN GEAR | SUM GEAR B - sun |
| 24 | 160009A1 | [1] | SUN GEAR | SUM GEAR C - sun Superseded by part number: 155283A1 |
| 25 | 155643A1 | [1] | RING, SNAP | SUM RING - snap |
| 26 | NSS | [1] | NOT SOLD SEPARAT | CON FLANGE - final drive transmission |
| 27 | 156144A1 | [2] | BEARING, BALL,240mm ID x 310mm OD x 32mm W | SUM BEARING - ball |
| 28 | NSS | [1] | NOT SOLD SEPARAT | CON HOUSING - bearing |
| 29 | 160223A1 | [1] | SHIM KIT | SUM KIT - shim |
| 30 | 160104A1 | [4] | PIN | SUM - dowel |
| 31 | 863-16090 | [4] | HEX SOC SCREW,M16 x 90mm, Cl 12.9 | SUM BOLT - hex socket, 16-2.0 x 90 mm, class 12.9 Superseded by part number: 2465671 |
| 32 | 863-18055 | [16] | HEX SOC SCREW,M18 x 55mm, Cl 12.9 | SUM BOLT - hex socket, 18-2.5 x 55 mm, class 12.9 Superseded by part number: 108R018Z055N |
| 33 | 156338A1 | [4] | PLATE | SUM - lock |
| 34 | 160006A1 | [1] | PINION | SUM GEAR - ring |
| . . | 160575A1 | [1] | SEAL KIT | SUM KIT - seal, replaces 160224A1, seal kit, Includes: Ref. 35 and 36 |
| 35 | 155299A1 | [1] | SEAL | SUM - face Superseded by part number: LE01126 |
| 36 | 155183A1 | [1] | O-RING | SUM - seal |
| 37 | 156200A1 | [16] | BOLT,M14 x 95mm | SUM BOLT - hex socket, 14-2.0 x 95 mm |
| 38 | 155647A1 | [3] | COTTER PIN | SUM PIN - dowel |
| 39 | 160220A1 | [1] | SET OF PARTS | SUM KIT - thrust plate |
| 40 | 160325A1 | [1] | COVER | SUM - final drive transmission |
| 41 | 863-10020 | [16] | HEX SOC SCREW,M10 x 20mm, Cl 12.9 | CAS BOLT - hex socket, 10-1.5 x 20 mm, class 12.9 |
| 42 | 151033A1 | [3] | PLUG | SUM - hex socket, special |
| 43 | 151026A1 | [1] | PLUG | SUM - port |
| 44 | 151022A1 | [1] | PLUG | SUM - hex socket, special |
| 45 | 892-10016 | [4] | LOCK WASHER,M16 | SUM WASHER - lock, 16 mm |
| 46 | 155578A1 | [1] | PIN | SUM - dowel |
| 47 | 160002A1 | [1] | COUPLING | SUM - drive motor Superseded by part number: 155257A1 |
| 48 | 738-1650 | [1] | LOCK PIN,M6 x 50, Slotted | CAS PIN - roll, 6 x 50 mm |
- Advantage
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
