7I-1123 7I1123 Shaft Excavator Final Drive Parts Fitting For 3054 312 313B CR
- 7I-1123 7I1123 Shaft Excavator Final Drive Parts Fitting For 3054 312 313B CR
- Specifiion
| Name | Shaft |
| Parts No | 7I-1123 7I1123 |
| Engine Model | 3054 |
| Category | Final Drive Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
| Transmits torque from the hydraulic motor to the final drive planetary gear set. |
| Connects the motor output to the wheel/hub for track drive. |
| Key component in the travel motor / final drive assembly (often paired with sun gear, planet gears, bearings, and seals). |
- More other shaft parts fit for C A T machine
| 0329007 SHAFT AS |
| 206, 212, 3054, 307, 312, 315, 317, 416B, 416C, 426B, 426C, 428, 428B, 428C, 436C, 438C, 914G, AP-800C, BG-225B, CB-434B, CB-434C, CB-534B, CB-534C, CB-535B, CB-544, CB-545, CP-433B, CP-433C, CS-323C,... |
| 0676929 SHAFT |
| 206, 212, 312, 315, 317, 428B, RT50 |
| 9W9451 SHAFT-TRACK IDLER |
| 311, 311B, 312, 312B, 315, 315B L, 315C, 317, 317B LN, 318B, 318C, 319C, 320 L, 320B, 320B FM LL, 320C, 320C FM, 321C, 325D, 329D L, 345C L, OEMS |
| 8E5601 SHAFT AS-TRACK ROLLER |
| 311, 311B, 311C, 312, 312B, 315, 315B L, 315C, 315D L, 316E L, 317, 317B LN, 318B, 318C, 318D L, 318D2 L, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L... |
| 6I6477 SHAFT-IDLER |
| 311, 311B, 311C, 311D LRR, 311F LRR, 312, 312B, 312B L, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313B, 313D, 313D2, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR, E110B, E120B |
| 1148225 SHAFT-PINION |
| 311, 311B, 312, 312B, 312B L, 313B |
| 5I8749 SHAFT-FRONT |
| 311, 311B, 312, 312B, 312B L, 315, 315B, 315B FM L, 315B L, 317, 317B LN |
| 5I8750 SHAFT-REAR |
| 311, 311B, 312, 312B, 312B L, 315, 315B, 315B FM L, 315B L, 317, 317B LN |
| 1358413 SHAFT |
| 313B |
| 5I7695 SHAFT |
| 311, 311B, 312B, 320 L, 320B, 320N, 321B |
| 1076556 SHAFT AS |
| 311, 311B, 312, 315, 317, OEMS |
| 8E5601 SHAFT AS-TRACK ROLLER |
| 311, 311B, 311C, 312, 312B, 315, 315B L, 315C, 315D L, 316E L, 317, 317B LN, 318B, 318C, 318D L, 318D2 L, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L... |
| 8E5035 SHAFT-TRACK ROLLER |
| 311, 311B, 311C, 312, 312B, 315, 315B, 315B L, 315C, 315D L, 317, 317B LN, 318B, 318C, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320B FM LL, 320B L, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 3... |
| 9W9451 SHAFT-TRACK IDLER |
| 311, 311B, 312, 312B, 315, 315B L, 315C, 317, 317B LN, 318B, 318C, 319C, 320 L, 320B, 320B FM LL, 320C, 320C FM, 321C, 325D, 329D L, 345C L, OEMS |

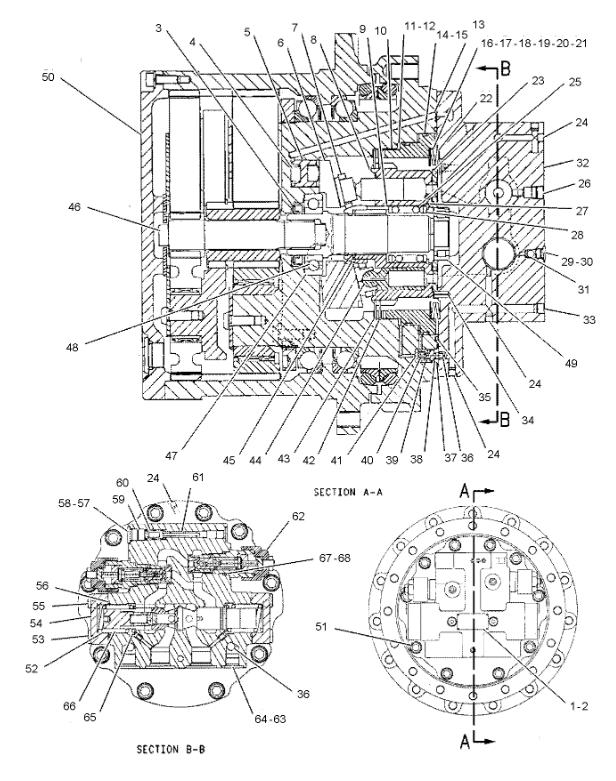

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | [1] | NAMEPLATE | ||
| 2 | 114-8231 | [4] | SCREW-DRIVE | |
| 3 | 1R-5871 J | [1] | SEAL-OIL | |
| 4 | 7I-1082 | [1] | SPRING | |
| 5 | 133-6780 | [1] | PISTON AS | |
| 6 | 7I-1084 | [1] | PLATE-CAM | |
| 7 | 7I-1085 | [1] | RETAINER | |
| 8 | 129-8025 | [1] | BARREL | |
| 9 | 1R-5875 | [3] | PIN | |
| 10 | 129-8026 | [1] | PISTON-BRAKE | |
| 11 | 095-7383 J | [1] | SEAL-O-RING | |
| 12 | 095-7386 J | [1] | RING-BACKUP | |
| 13 | 095-1578 J | [1] | SEAL-O-RING | |
| 14 | 096-4377 J | [1] | SEAL-O-RING | |
| 15 | 1R-5883 J | [1] | RING-BACKUP | |
| 16 | 096-1521 B | [1] | SHIM (1-MM THK) | |
| 17 | 096-3785 B | [1] | SHIM (1.2-MM THK) | |
| 18 | 096-3786 B | [1] | SHIM (1.4-MM THK) | |
| 19 | 096-3787 B | [1] | SHIM (1.6-MM THK) | |
| 20 | 096-3788 B | [1] | SHIM (1.8-MM THK) | |
| 21 | 096-1522 B | [1] | SHIM (2-MM THK) | |
| 22 | 1R-5881 | [2] | SPRING | |
| 23 | 7I-1103 | [1] | PLATE-VALVE | |
| 24 | 8T-6759 | [10] | PLUG-PIPE | |
| 25 | 7I-1110 | [1] | SPRING | |
| 26 | 095-0966 | [2] | PLUG | |
| 27 | 4I-9426 | [1] | RING-RETAINING | |
| 28 | 7I-1109 | [2] | PLATE | |
| 29 | 7I-1104 | [2] | PLUG | |
| 30 | 095-1575 J | [2] | SEAL-O-RING | |
| 31 | 3Y-9267 | [2] | BALL | |
| 32 | 151-9685 | [1] | COVER AS | |
| 33 | 096-1445 | [1] | PLUG | |
| 34 | 095-0882 | [1] | PIN-SPRING | |
| 35 | 7Y-4277 J | [1] | SEAL-O-RING | |
| 36 | 114-8229 | [4] | ORIFICE | |
| 37 | 095-1585 J | [1] | SEAL-O-RING | |
| 38 | 096-1519 | [1] | SEAT | |
| 39 | 095-7381 | [1] | VALVE | |
| 40 | 095-7380 | [1] | SPRING | |
| 41 | 095-7382 | [1] | RETAINER | |
| 42 | 1R-5880 | [2] | PLATE-SEPARATOR | |
| 43 | 1R-5879 | [2] | PLATE-FRICTION | |
| 44 | 7I-1121 | [1] | PISTON AS | |
| 45 | 7I-1122 | [1] | GUIDE | |
| 46 | 7I-1123 | [1] | SHAFT | |
| 47 | 7I-1125 | [1] | BALL BEARING | |
| 48 | 1R-5874 | [2] | BALL | |
| 49 | 1R-5870 | [1] | BEARING-ROLLER | |
| 50 | 114-1466 Y | [1] | DRIVE GP-FINAL | |
| 51 | 095-0687 M | [10] | BOLT-SOCKET HEAD (M14X2X45-MM) | |
| 52 | 133-6753 | [1] | SPOOL AS | |
| 53 | 6V-8200 M | [8] | BOLT-SOCKET HEAD (M12X1.75X35-MM) | |
| 54 | 7I-1141 | [2] | COVER | |
| 55 | 1R-5891 | [2] | PIN | |
| 56 | 5P-2568 J | [2] | SEAL-O-RING | |
| 57 | 1R-5889 | [1] | PLUG | |
| 58 | 095-1517 J | [1] | SEAL-O-RING | |
| 59 | 7I-1129 | [1] | STOP | |
| 60 | 096-3978 | [1] | SPRING | |
| 61 | 7I-1131 | [1] | SPOOL | |
| 62 | 132-7725 | [2] | VALVE GP-RELIEF | |
| 63 | 6V-8399 J | [1] | SEAL-O-RING | |
| 64 | 9S-8005 | [1] | PLUG (3/4-16-THD) | |
| 65 | 7I-1137 | [2] | WASHER (26.7X35X2-MM THK) | |
| 66 | 7I-1138 | [2] | SPRING | |
| 67 | 095-1594 | [2] | SEAL-O-RING | |
| 68 | 095-1789 | [2] | RING | |
| AVAILABLE REPAIR KIT(S): | ||||
| 7I-1277 J | [1] | KIT-SEAL | ||
| B | USE AS REQUIRED | |||
| J | KIT MARKED J INCLUDES PART(S) MARKED J | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
