XKAN-00002 Evaporator CASE Excavator Air Conditioner Parts Fitting For CX57C CX60C
- XKAN-00002 Evaporator CASE Excavator Air Conditioner Parts Fitting For CX57C CX60C
- Specifiion
| Name | Evaporator |
| Parts No | XKAN-00002 |
| Machine Model | CX57C CX60C |
| Category | Air Conditioner Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
1. It is the key cooling component of the cab air conditioner. Liquid refrigerant absorbs surrounding heat and vaporizes inside the evaporator core; cold air is blown into operator’s cabin via blower to lower indoor temperature.
Material & Characteristics
2. Constructed with aluminum fin and tube structure for excellent heat exchange efficiency, anti-corrosion and quick heat dissipation. It bears low-pressure refrigerant circulation under normal working conditions.
- Compatible models
LIGHT EQUIPMENT CX57C CX60C Case
- More other core parts fit for CASE machine
| XKAN-00005 CORE |
| CX60C, CX57C |
| ZFAD-00035 CORE |
| CX18C, CX37C, CX26C |
| PY20M00019S037 CORE |
| CX55BMSR |
| PM15V00021F1C CORE-MOTOR HYDRAULIC |
| CX27B |
| PY15V00009F3C CORE-MOTOR HYDRAULIC |
| CX47 |
| VV11983677201C CORE-ALTERNATOR |
| CX47, CX36, CX31 |
| VV12969877010C CORE-STARTER |
| CX36, CX31 |
| A47431 CORE-ALTERNATOR |
| 475 |
| 367343A1 CORE, RADIATOR |
| 686G |
| 87413603 CORE-INJECTION PUMP |
| 688G, 686G, 686GXR |
| JC991098 CORE-INJECTION PUMP |
| 686G, 686GXR |
| 314281A1C CORE-STARTER |
| 688G, 686G, 686GXR |
| XKAN-00005 CORE |
| CX60C, CX57C |

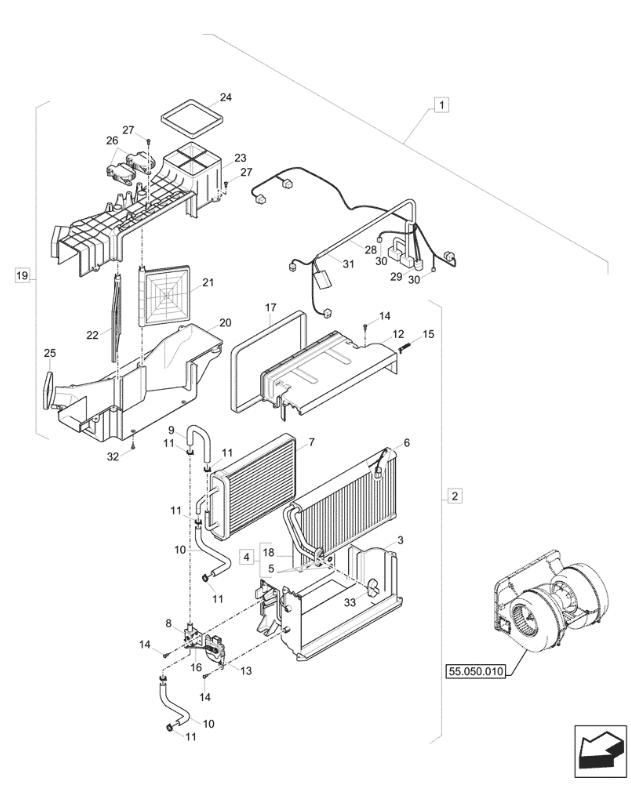

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 11M9-90013 | [1] | CONDITIONING UNIT | SM HVAC Unit, ASSY, Incl 2 - 33 |
| 2 | XKAN-00041 | [1] | EVAPORATOR | SM ASSY, Incl 3 - 17 |
| 3 | XKAN-00001 | [1] | TOOL BOX | SM Case, Lower |
| 4 | XKAN-00002 | [1] | CORE | SM Evaporator, ASSY, Incl 5, 18 |
| 5 | XKAN-00003 | [2] | O-RING | SM |
| 6 | XKAN-00004 | [1] | TEMPERATURE SENDER | SM |
| 7 | XKAN-00005 | [1] | CORE | SM Heater |
| 8 | XKAN-00006 | [1] | COCK | SM |
| 9 | XKAN-00007 | [1] | HOSE | SM |
| 10 | XKAN-00008 | [2] | HOSE | SM |
| 11 | XKAN-00049 | [6] | CLAMP | SM |
| 12 | XKAN-00010 | [1] | TOOL BOX | SM Case, Upper |
| 13 | XKAN-00011 | [1] | ACTUATOR | SM With Valve |
| 14 | XKAN-00012 | [13] | BOLT | SM |
| 15 | XKAN-00013 | [1] | HOLDER | SM |
| 16 | XKAN-00014 | [1] | ROD | SM |
| 17 | XKAN-00015 | [1] | SEAL | SM |
| 18 | NSS | [1] | NOT SOLD SEPARAT | CON Evaporator, Incl in 4 |
| 19 | XKAN-00016 | [1] | DISTRIBUTOR | SM 12V, ASSY, Incl 20 - 27 |
| 20 | XKAN-00017 | [1] | DISTRIBUTOR | SM Lower |
| 21 | NSS | [1] | NOT SOLD SEPARAT | CON Grille, Incl in 19 |
| 22 | NSS | [1] | NOT SOLD SEPARAT | CON Grille, Incl in 19 |
| 23 | XKAN-00020 | [1] | DISTRIBUTOR | SM Upper |
| 24 | NSS | [1] | NOT SOLD SEPARAT | CON Seal, Incl in 19 |
| 25 | NSS | [1] | NOT SOLD SEPARAT | CON Seal, Incl in 19 |
| 26 | XKAN-00023 | [2] | ACTUATOR | SM With Valve |
| 27 | XKAN-00012 | [15] | BOLT | SM |
| 28 | XKAN-00034 | [1] | WIRE HARNESS | SM AC |
| 29 | XKAN-00035 | [1] | RELAY | SM |
| 30 | XKAN-00040 | [1] | SENSOR | SM |
| 31 | XKAN-00051 | [1] | CLAMP | SM |
| 32 | XKAN-00012 | [8] | BOLT | SM |
| 33 | XKAN-00037 | [1] | CAP | SM |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
