207-03-72221 2070372221 Oil Cooler KOMATSU Excavator Spare Parts For PC300-8M0 PC350-8M0
- 207-03-72221 2070372221 Oil Cooler KOMATSU Excavator Spare Parts For PC300-8M0 PC350-8M0
- Specifiion
| Name | Oil Cooler |
| Parts No | 207-03-72221 2070372221 |
| Machine Model | PC300-8M0 PC350-8M0 PC300LC-8M0 PC350LC-8M0 |
| Category | Cooling System, Radiator Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Introduction
| 1. Material: Main core adopts aluminum alloy with fin structure, featuring excellent heat conductivity and corrosion resistance against hydraulic oil. |
| 2. Core Function: It dissipates heat from high-temperature circulating hydraulic oil during equipment operation, keeps hydraulic system working within standard operating temperature range, prevents high oil temperature from causing oil thinning, system leakage or hydraulic component damage. |
| 3. Service Feature: A key vulnerable cooling part. Blockage or core leakage of the cooler will trigger overheating, slow movement and power drop of the excavator. |
- Compatible models
EXCAVATORS PC300 PC350 Komatsu
- More other oil cooler parts fit for KOMATSU machine
| 714-07-39120 OIL SEAL (K1) |
| AIR, WA380, WA430, WA470, WA480 |
| 421-03-44220 OIL COOLER |
| WA470, WA480 |
| 421-03-44030 OIL COOLER ASSEMBLY |
| WA470, WA480 |
| 6251-51-1001 OIL PUMP |
| 6D125, HM300, PC400, PC450, PC490, S6D125, S6D125E, SA6D125E, SAA6D125E, WA470, WA480 |
| 421-03-44020 OIL COOLER ASS'Y |
| WA450, WA470, WA480 |
| 421-03-44130 OIL COOLER |
| WA450, WA470, WA480 |
| 421-03-44140 OIL COOLER |
| WA450, WA470, WA480 |
| 421-U44-4860 Oil Cooler |
| WA470, WA480 |
| 6693-60-9201 OIL COOLER ASS'Y,TORQUE CONVERTER |
| NH |
| M720040303550 OIL FILTER ASS'Y |
| EC105V, EC105VS, EC170V, EC260V, EC50V, EC50VS |
| 6124-51-5001 OIL FILTER ASS'Y |
| S4D155 |
| 22L-09-R3N91 OIL CHART |
| PC26MR |
| M721145108100 OIL COOLER ASS'Y |
| EC170ZS |
| 23B-03-67220 OIL COOLER |
| GD655, GD675 |
| 145-98-51961 OIL CHART |
| D75S |
| 6141-22-5110 OIL PAN |
| 4D92 |
| 6141-21-5311 OIL GAUGE |
| 4D92 |
| 6141-22-5111 OIL PAN |
| 4D92 |
| 6141-21-5312 OIL GAUGE |
| 4D92 |
| 421-03-44220 OIL COOLER |
| WA470, WA480 |

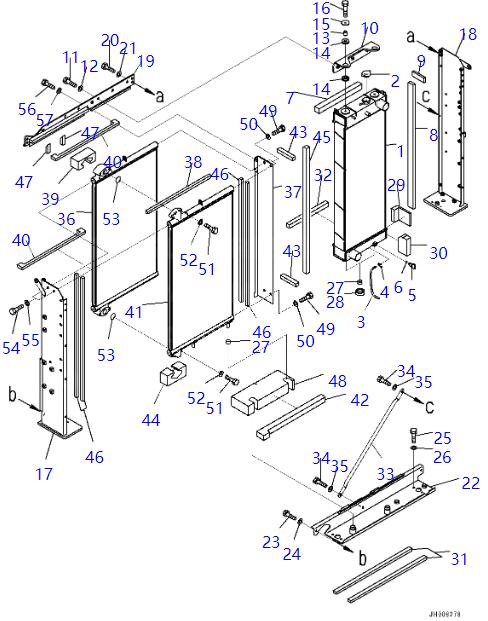

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 207-03-72321 | [1] | Radiator Assembly Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 2 | 20Y-03-22110 | [1] | Cap Komatsu OEM | 0.25 kg. |
| ["SN: 80001-UP"] | ||||
| 3 | 205-03-71230 | [1] | Hose Komatsu | 0.02 kg. |
| ["SN: 80001-UP"] | ||||
| 4 | 20Y-03-11330 | [1] | Clip Komatsu | 0.01 kg. |
| ["SN: 80001-UP"] | ||||
| 5 | 205-03-62660 | [1] | Plug Komatsu | 0.01 kg. |
| ["SN: 80001-UP"] | ||||
| 6. | 07000-11007 | [1] | O-ring Komatsu | 0.001 kg. |
| ["SN: 80001-UP"] analogs:["YM24311000070", "0700001007"] | ||||
| 7 | 207-03-72631 | [1] | Seal Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 8 | 208-03-71810 | [1] | Seal Komatsu | 0.02 kg. |
| ["SN: 80001-UP"] | ||||
| 9 | 208-03-71840 | [1] | Seal Komatsu | 0.01 kg. |
| ["SN: 80001-UP"] | ||||
| 10 | 207-03-72540 | [1] | Bracket Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 11 | 01010-81235 | [3] | Bolt Komatsu | 0.048 kg. |
| ["SN: 80001-UP"] analogs:["0101051235", "01010E1235", "801015136"] | ||||
| 12 | 01643-31232 | [3] | Washer Komatsu | 0.027 kg. |
| ["SN: 80001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 13 | 14X-03-51640 | [2] | Spacer Komatsu | 0.000 kg. |
| ["SN: 80001-UP"] | ||||
| 14 | 14X-03-51621 | [4] | Cushion Komatsu | 0.000 kg. |
| ["SN: 80001-UP"] | ||||
| 15 | 14X-03-51770 | [2] | Washer Komatsu | 0.000 kg. |
| ["SN: 80001-UP"] | ||||
| 16 | 01010-81045 | [2] | Bolt Komatsu | 0.039 kg. |
| ["SN: 80001-UP"] analogs:["0101051045", "01010D1045"] | ||||
| 17 | 207-03-72311 | [1] | Frame Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 18 | 207-03-72871 | [1] | Frame Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 19 | 207-03-72281 | [1] | Frame Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 20 | 01010-81230 | [2] | Bolt Komatsu | 0.043 kg. |
| ["SN: 80001-UP"] analogs:["0101051230", "01010B1230"] | ||||
| 22 | 207-03-72411 | [1] | Frame Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 23 | 01010-81030 | [2] | Bolt Komatsu OEM | 0.03 kg. |
| ["SN: 80001-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"] | ||||
| 24 | 01643-31032 | [2] | Washer Komatsu | 0.054 kg. |
| ["SN: 80001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 25 | 01010-81020 | [4] | Bolt Komatsu | 0.161 kg. |
| ["SN: 80001-UP"] analogs:["801014093", "0101051020", "801015108"] | ||||
| 27 | 22B-03-12590 | [4] | Cushion Komatsu | 0.04 kg. |
| ["SN: 80001-UP"] | ||||
| 28 | 207-03-22760 | [2] | Cushion Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 29 | 208-03-71490 | [1] | Seal Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 30 | 207-03-72910 | [1] | Seal Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 31 | 208-03-71821 | [2] | Seal Komatsu | 0.04 kg. |
| ["SN: 80001-UP"] | ||||
| 32 | 207-03-72291 | [1] | Seal Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 33 | 207-03-72860 | [1] | Stay Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 207-03-72221 | [1] | Oil Cooler Assembly Komatsu China | ||
| ["SN: 80001-UP"] |$35. | ||||
| 37. | 207-03-72251 | [1] | Frame Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 38. | 207-03-72731 | [1] | Seal Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 39. | 207-03-72340 | [1] | Seal Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 40. | 207-03-72721 | [2] | Seal Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 42. | 207-03-72741 | [1] | Seal Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 43. | 207-03-72751 | [2] | Seal Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 44. | 207-03-76380 | [1] | Seal Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 45. | 208-03-71850 | [1] | Seal Komatsu | 0.02 kg. |
| ["SN: 80001-UP"] | ||||
| 46. | 208-03-71860 | [4] | Seal Komatsu | 0.06 kg. |
| ["SN: 80001-UP"] | ||||
| 47. | 208-03-71890 | [2] | Seal Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 48. | 207-03-72421 | [1] | Seal Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 51. | 01010-81245 | [4] | Bolt Komatsu | 0.056 kg. |
| ["SN: 80001-UP"] analogs:["0101051245", "801015574"] | ||||
| 53. | 07000-13045 | [2] | O-ring Komatsu China | 0.002 kg. |
| ["SN: 80001-UP"] analogs:["0700003045"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
