21QB-10910 Boom Harness HYUNDAI Excavator Spare Parts Fit For R480LC9S R520LC9
- 21QB-10910 Boom Harness HYUNDAI Excavator Spare Parts Fit For R480LC9S R520LC9
- Specifiion
| Name | Wiring Harness |
| Parts No | 21QB-10910 |
| Machine Model | R480C9MH R480LC9 R480LC9A R480LC9S R520LC9 R520LC9A |
| Category | Boom Electric Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
9-SERIES CRAWLER EXCAVATOR R480C9MH R480LC9 R480LC9A R480LC9S R520LC9 R520LC9A R520LC9S
F-SERIES CRAWLER EXCAVATOR HX480L HX520L Hyundai
- Functions
| 1.Signal & power transmission channel |
| It serves as the electrical nerve on the boom. Transmit control signals and low-voltage power between the main machine chassis and all electric parts fitted on the boom. |
| Typical matched components: boom working light, auxiliary hydraulic solenoid for attachments (breaker, grapple), boom angle sensor, boom end camera. |
| 2.System circuit connection |
| Link the main vehicle wiring harness on the upper revolving frame to boom-end electrical devices. Realize operator’s in-cab control over boom-mounted accessories. Without this harness, auxiliary attachments and boom lights cannot be activated. |
| 3.Integrated cable protection & arrangement |
| All independent wires are bundled together with oil-resistant, abrasion-resistant corrugated tubing and fixed clips. Prevent wire twisting, friction, pull damage during continuous boom lifting, lowering and swinging. Avoid short circuit or open circuit caused by wire exposure. |
| 4.Vibration & bending resistance adaptation |
| Specially designed for repeated articulation of the boom. The harness reserves reasonable bending allowance to withstand frequent flexing, vibration, mud, water splash and temperature changes on construction sites. |
- More other harness parts fit for HYUNDAI machine
| 21N6-80101 HARNESS-FRAME |
| RD220-7 |
| 21N6-80102 HARNESS-FRAME |
| RD220-7 |
| 21N1-20010 HARNESS-FRAME |
| RD80-7 |
| 21N1-20011 HARNESS-FRAME |
| RD80-7 |
| 21N1-20012 HARNESS-FRAME |
| RD80-7 |
| 21N1-20013 HARNESS-FRAME |
| RD80-7 |
| 21N6-DA0630 HARNESS-LAMP |
| RD80-7 |
| 21N1-60010 HARNESS-ENG |
| RD80-7 |
| 21N9-10024 HARNESS-ENGINE |
| R320LC7 |
| 21NB-10054 HARNESS-ENGINE |
| R500LC7 |
| 21N1-10022 HARNESS-ENGINE |
| R80-7 |
| 21N8-11182 HARNESS-SIDE,RH |
| R80-7 |
| 21N8-10091 HARNESS-WIPER |
| HX235L, R110-7, R110-7A, R125LCR-9A, R140LC9, R140LC9V, R140W9, R145CR9, R145CR9A, R160LC9, R180LC9, R210LC9, R210NLC9, R210W-9, R215LC7, R250LC9, R290LC9, R320LC9, R360LC9, R480LC9, R520LC9, R80-7, R... |
| 21N8-10090 HARNESS-WIPER |
| R110-7, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290... |
| 21N6-00013 HARNESS-CAB |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9V, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R250... |
| 21N6-00012 HARNESS-CAB |
| R110-7, R140LC-7, R140W7, R160LC7, R170W7, R180LC7, R200W7, R210LC7, R210LC7H, R210NLC7, R250LC7, R290LC7, R290LC7H, R305LC7, R320LC7, R360LC7, R450LC7, R450LC7A, R500LC7, R80-7, RC215C7, RC215C7H |
| 21N3-10050 HARNESS-ENGINE |
| R110-7 |
| 21N3-10020 HARNESS-BOOM |
| R110-7 |
| 21N4-01502 HARNESS-EXT, TRAVEL |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9S, R160LC7, R160LC7A, R180LC7, R180LC7A, R80-7, R80-7A, RD110-7 |
| 21N3-10014 HARNESS-FRAME |
| R110-7 |
| 21N3-10013 HARNESS-FRAME |
| R110-7 |
| 21N3-10012 HARNESS-FRAME |
| R110-7 |
| 21N3-10011 HARNESS-FRAME |
| R110-7 |
| YCAC-01966 HARNESS-ENGINE WIRE |
| HSL960T |
| 21N6-60020 HARNESS-RH,CONSOLE |
| R110-7 |
| 21N3-10510 HARNESS-RH,CONSOLE |
| R110-7, R110-7A |
| 21N6-60030 HARNESS-SIDE,RH |
| R110-7 |
| 21N6-60031 HARNESS-SIDE,RH |
| R110-7, R110-7A |
- Catalog parts list

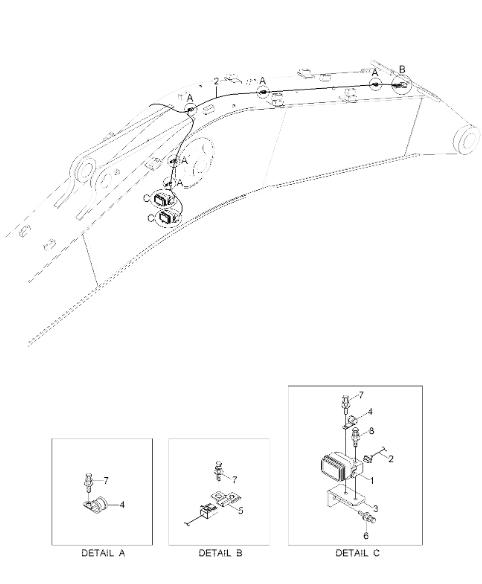

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21QB-60700 | [4] | WORK LAMP ASSY | |
| 1-1. | S866-240650 | [1] | BULB | NOT SHOWN |
| 2 | 21QB-10910 | [1] | HARNESS-BOOM | |
| 3 | 21QB-20240 | [4] | BRACKET-LIGHT | |
| 4 | 31L7-10350 | [11] | CLAMP | |
| 5 | 25D1-10640 | [1] | CLIP ASSY | |
| 6 | S037-122526 | [4] | BOLT-W/WASHER | |
| 7 | S037-101526 | [9] | BOLT-W/WASHER | |
| 8 | S037-102026 | [4] | BOLT-W/WASHER |
