21Q6-10604 Engine Harness HYUNDAI Excavator Spare Parts Fitting For R480LC-9S R520LC-9S
- 21Q6-10604 Engine Harness HYUNDAI Excavator Spare Parts Fitting For R480LC-9S R520LC-9S
- Specifiion
| Name | Wiring Harness |
| Parts No | 21Q6-10604 |
| Machine Model | R480LC-9S R520LC-9S |
| Category | Engine Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
9-SERIES CRAWLER EXCAVATOR R480LC9S R520LC9S Hyundai
- Functions
| 1.Power Transmission |
| Deliver stable DC power supply from the main machine power circuit to engine electronic parts, including fuel injectors, pressure sensors, temperature sensors, solenoid valves and engine ECU. |
| 2.Signal & Data Communication |
| Transmit real-time sensor feedback signals to the Engine Control Unit (ECU): coolant temperature, boost pressure, crankshaft speed, oil pressure, exhaust temperature etc. |
| Also transfer control commands output by ECU to actuators to regulate fuel injection quantity, injection timing and engine speed. |
| 3.Interconnection Bridge Between Engine & Chassis Controller |
| Build communication link between engine ECU and excavator main controller, monitor panel. It enables real-time data sharing: engine load, RPM, fault codes, so the machine can coordinate engine output and hydraulic pump power. |
| 4.Integrated Protection & Cable Organisation |
| Bundle scattered wires into a fixed routing layout. The outer sleeve protects cables against engine high temperature, vibration, engine oil, dust and abrasion. Waterproof connectors prevent short circuit or open circuit caused by water ingress. |
| 5.Fault Diagnosis Signal Channel |
| Carry diagnostic communication lines. Service tools can connect via this harness to read trouble codes, view engine operating parameters and complete ECU calibration. |
- More other harness parts fit for HYUNDAI machine
| 21N6-80101 HARNESS-FRAME |
| RD220-7 |
| 21N6-80102 HARNESS-FRAME |
| RD220-7 |
| 21N1-20010 HARNESS-FRAME |
| RD80-7 |
| 21N1-20011 HARNESS-FRAME |
| RD80-7 |
| 21N1-20012 HARNESS-FRAME |
| RD80-7 |
| 21N1-20013 HARNESS-FRAME |
| RD80-7 |
| 21N6-DA0630 HARNESS-LAMP |
| RD80-7 |
| 21N1-60010 HARNESS-ENG |
| RD80-7 |
| 21N9-10024 HARNESS-ENGINE |
| R320LC7 |
| 21NB-10054 HARNESS-ENGINE |
| R500LC7 |
| 21N1-10022 HARNESS-ENGINE |
| R80-7 |
| 21N8-11182 HARNESS-SIDE,RH |
| R80-7 |
| 21N8-10091 HARNESS-WIPER |
| HX235L, R110-7, R110-7A, R125LCR-9A, R140LC9, R140LC9V, R140W9, R145CR9, R145CR9A, R160LC9, R180LC9, R210LC9, R210NLC9, R210W-9, R215LC7, R250LC9, R290LC9, R320LC9, R360LC9, R480LC9, R520LC9, R80-7, R... |
| 21N8-10090 HARNESS-WIPER |
| R110-7, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290... |
| 21N6-00013 HARNESS-CAB |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9V, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R250... |
| 21N6-00012 HARNESS-CAB |
| R110-7, R140LC-7, R140W7, R160LC7, R170W7, R180LC7, R200W7, R210LC7, R210LC7H, R210NLC7, R250LC7, R290LC7, R290LC7H, R305LC7, R320LC7, R360LC7, R450LC7, R450LC7A, R500LC7, R80-7, RC215C7, RC215C7H |
| 21N3-10050 HARNESS-ENGINE |
| R110-7 |
| 21N3-10020 HARNESS-BOOM |
| R110-7 |
| 21N4-01502 HARNESS-EXT, TRAVEL |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9S, R160LC7, R160LC7A, R180LC7, R180LC7A, R80-7, R80-7A, RD110-7 |
| 21N3-10014 HARNESS-FRAME |
| R110-7 |
| 21N3-10013 HARNESS-FRAME |
| R110-7 |
| 21N3-10012 HARNESS-FRAME |
| R110-7 |
| 21N3-10011 HARNESS-FRAME |
| R110-7 |
| YCAC-01966 HARNESS-ENGINE WIRE |
| HSL960T |
| 21N6-60020 HARNESS-RH,CONSOLE |
| R110-7 |
| 21N3-10510 HARNESS-RH,CONSOLE |
| R110-7, R110-7A |
| 21N6-60030 HARNESS-SIDE,RH |
| R110-7 |
| 21N6-60031 HARNESS-SIDE,RH |
| R110-7, R110-7A |

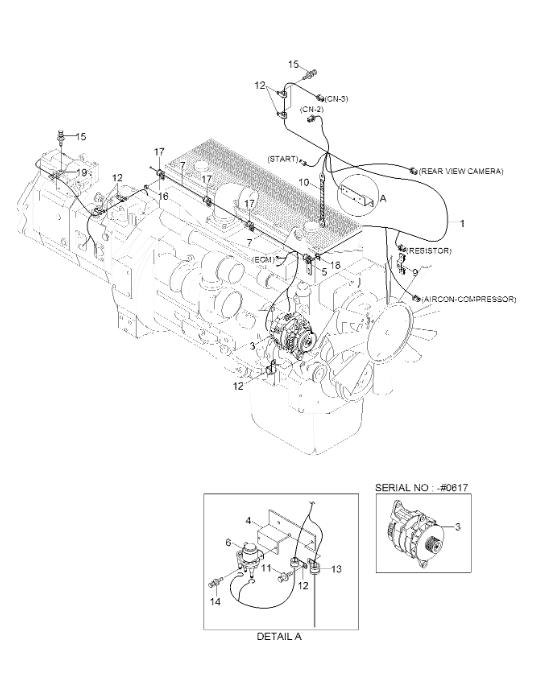

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21QB-14500 | [1] | HARNESS-ENGINE | CLUSTER TYPE 1 |
| 1 | 21QB-14501 | [1] | HARNESS-ENGINE | CLUSTER TYPE 1 |
| 1 | 21QB-14502 | [1] | HARNESS-ENGINE | CLUSTER TYPE 1 |
| 1 | 21QB-14200 | [1] | HARNESS-ENGINE | CLUSTER TYPE 2 |
| 1 | 21QB-14201 | [1] | HARNESS-ENGINE | CLUSTER TYPE 2 |
| 1 | 21QB-14202 | [1] | HARNESS-ENGINE | CLUSTER TYPE 2 |
| 1-1. | 21LH-30130 | [1] | RESISTOR | NOT SHOWN |
| 3 | 21Q6-41000-K | [1] | ALTERNATOR KIT | W/O PULLY |
| 3 | 21Q6-42501 | [1] | ALTERNATOR ASSY | W/ PULLY |
| 3-1. | 21Q6-41000 | [1] | ALTERNATOR ASSY | NOT SHOWN |
| 3-2. | 21N8-43000 | [1] | HARNESS-ALTERNATOR | NOT SHOWN |
| 3 | 21Q6-42501 | [1] | ALTERNATOR ASSY | W/ PULLY |
| 4 | 21LH-31011 | [1] | PLATE | |
| 4 | 21NB-21080 | [1] | BRACKET-RELAY | |
| 5 | 21LH-31030 | [1] | PLATE | |
| 6 | 21N8-42050 | [1] | RELAY-HEATER | |
| 7 | 21NB-40051 | [1] | CABLE ASSY | |
| 9 | 21N4-01130 | [1] | PLATE-CLIP | |
| 10 | 21EH-30720 | [1] | STRAP-EARTH | |
| 11 | S037-102056 | [2] | BOLT-W/WASHER | |
| 11 | S037-102026 | [2] | BOLT-W/WASHER | |
| 12 | 21E9-00170 | [6] | CLIP-HARNESS | |
| 13 | 31L7-10200 | [1] | CLAMP-TUBE | |
| 14 | S035-061526 | [2] | BOLT-W/WASHER | |
| 15 | S035-081526 | [2] | BOLT-W/WASHER | |
| 16 | S205-08100B | [4] | NUT-HEX | |
| 17 | 31L7-10190 | [3] | CLAMP-TUBE | |
| 18 | S552-035146 | [3] | CLAMP-BAND | |
| 19 | S593-000902 | [1] | CLIP-HARNESS | |
| 20 | 21N6-30120 | [1] | RELAY-START | |
| 21 | 21NB-00190 | [1] | HARNESS-EXT,START RY | |
| 22 | S285-06100B | [4] | NUT-FLANGED | |
| 23 | 21QB-10302 | [1] | HARNESS-PUMP PS | |
| 24 | 21Q6-10850 | [1] | COVER-STARTER RELAY | |
| 25 | 21Q6-10950 | [1] | COVER-PREHEAT RELAY |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
