305-7976 3057976 Seal Gp Duo Motor Grader Spare Parts Fitting For C9.3 120M 140M
- 305-7976 3057976 Seal Gp Duo Motor Grader Spare Parts Fitting For C9.3 120M 140M
- Specifiion
| Name | Seal Gp Duo |
| Parts No | 305-7976 3057976 |
| Machine Model | 120M 120M 2 12M 2 12M 3 AWD 140M 140M 2 140M 3 AWD 160M |
| Category | Front Gear Part |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Functions
| 1. Prevent internal gear oil leakage |
| Polished metal faces form a tight metal-to-metal friction pair. It blocks gear lubricating oil inside the final drive housing from leaking out during wheel rotation, maintaining stable oil volume and lubrication for planetary gears, bearings and shafts. |
| 2. Block external contaminants intrusion |
| Dust, mud, gravel, water and slurry from construction sites cannot penetrate into the drive unit. Dirty impurities are isolated to avoid abrasion of gears, pins and bearings, extending service life of the whole travel reducer. |
| 3. Compensate axial & radial misalignment |
| Heavy load, vibration and frame deformation will cause slight offset between rotating hub and fixed housing. The elastic toric rubber rings provide floating buffer, keeping two metal sealing faces fully fitted without gap, sustaining sealing performance under misalignment conditions. |
| 4. Bear heavy dynamic load & shock resistance |
| Made of wear-resistant alloy steel with high surface hardness. It withstands continuous alternating impact load from heavy-duty road machinery; far more durable than standard rubber oil seals under severe muddy mining/roadwork conditions. |
| 5. Maintain thin lubricating oil film for friction reduction |
| A tiny oil film stays between two polished metal faces during rotation. The oil film separates metal surfaces to lower friction heat, avoid dry grinding, scoring and seizure of sealing faces. |
- Compatible models
- More other seal parts fit for C A Tmachine
| 9T8059 SEAL |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 14... |
| 2G8777 SEAL |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 14... |
| 5P8890 SEAL-LIP TYPE |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 14... |
| 3P1461 SEAL-LIP TYPE |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 14... |
| 4J9964 SEAL |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12E, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M |
| 8D3902 SEAL-LIP TYPE |
| 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H, 160G, 160H, 160H ES, 160H NA, 160K, 160M, 160M 2 |
| 7D8884 SEAL |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, ... |
| 7D8883 SEAL |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3 |
| 4337105 SEAL-PIN |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M 3, 140M 3 AWD, 143H, 160H |

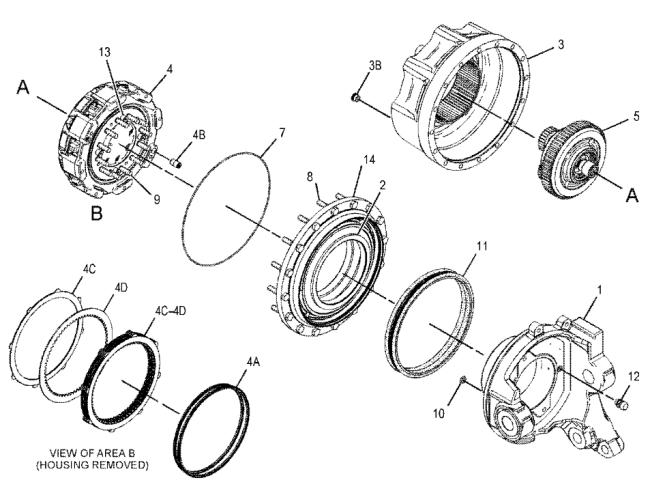

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 415-1852 | [1] | SPINDLE AS (ALL WHEEL DRIVE, RH) | |
| 2 | 415-1854 | [1] | KIT-BEARING | |
| 3 | 415-1855 | [1] | COVER AS | |
| 3B. | 415-1856 | [2] | PLUG AS | |
| (EACH INCLUDES) | ||||
| 6V-6580 | [1] | SEAL-O-RING | ||
| 4 | 295-2574 | [1] | HOUSING AS-CLUTCH | |
| 4A. | 295-2578 | [1] | KIT-SEAL (GEAR CASE) | |
| (INCLUDES SEAL RINGS) | ||||
| 4B. | 295-2579 | [2] | DOWEL | |
| 4C. | 295-2580 | [6] | DISC-FRICTION | |
| 4D. | 295-2581 | [5] | PLATE | |
| 8C-8729 M | [8] | BOLT-SOCKET HEAD (M12X1.75X80-MM) | ||
| 5 | 295-2576 | [1] | KIT-PLANETARY GEAR (ALL WHEEL DRIVE) | |
| (INCLUDES FIRST REDUCTION, SECOND REDUCTION, GEAR-SUN, COUPLING, PADS, CIRCLIP, & BOLTS) | ||||
| 7 | 7S-8561 | [1] | SEAL-O-RING | |
| 8 | 7X-2554 M | [16] | BOLT (M16X2X70-MM) | |
| 9 | 8T-1447 M | [12] | BOLT-SOCKET HEAD (M16X2X70-MM) | |
| 10 | 4J-5309 | [1] | SEAL-O-RING | |
| 11 | 305-7976 | [1] | SEAL GP-DUO-CONE | |
| 12 | 295-2585 | [1] | BREATHER (AWD, GEAR) | |
| 13 | 295-2579 | [4] | DOWEL | |
| 14 | 462-9250 | [1] | HOUSING | |
| M | METRIC PART |
