6745-71-6130 3969822 Connector KOMATSU Excavator Spare Parts For PC300LC-8 PC350LC-8
-
6745-71-6130 3969822 Connector KOMATSU Excavator Spare Parts For PC300LC-8 PC350LC-8
-
Specifiion
| Category | Fuel Piping |
| Name | Fuel Injector Connector |
| Parts No | 6745-71-6130 3969822 |
| Machine Number | PC300 PC340 PC350 PC350HD PC350LL PC360 PC390 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
- Key functions
| 1.Fuel connection interface It connects high‑pressure fuel pipe and fuel injector, transfers high‑pressure diesel fuel from fuel rail to injector accurately, maintains stable fuel delivery under engine working pressure. |
| 2.Sealing performance Built‑in O‑ring seal prevents high‑pressure fuel leakage. It resists engine vibration, temperature fluctuation, avoids fuel leak, oil mist and fire risk in engine compartmentMade-in-Ch.... |
| 3.Precise positioning & installation support Provides accurate mounting position for fuel injector pipeline. Guarantees coaxial assembly between pipe and injector, eliminates offset‑caused stress, protects injector and fuel tube from damage under machine vibration. |
- Compatible models
ENGINES SAA6D114E
EXCAVATORS PC300 PC300HD PC300LL PC340 PC350 PC350HD PC350LL PC360 PC390 PC390LL
WHEEL LOADERS WA430 Komatsu
- More other connector applied to KOMATSU heavey machine
| 6746-21-7270 CONNECTION |
| PC360, PC390, PC390LL |
| 6743-51-5521 CONNECTION, OIL SUCTION |
| PC300, PC300HD, PC300LL, PC350LL, SAA6D114E |
| 6745-51-8120 CONNECTION, TURBOCHARGER OIL DRAIN |
| PC300, PC300HD, PC300LL, PC350, PC350HD, PC350LL, SAA6D114E |
| 6746-71-5610 CONNECTION |
| PC360, PC390, PC390LL |
| 6746-51-8210 CONNECTION |
| PC360, PC390, PC390LL |
| 6746-61-8180 CONNECTION |
| PC360, PC390, PC390LL |
| 6746-11-4161 CONNECTION |
| PC360, PC390, PC390LL |
| 6746-61-6610 CONNECTION |
| PC360, PC390, PC390LL |
| 6810-11-8230 CONNECTION |
| PC95, PW95 |

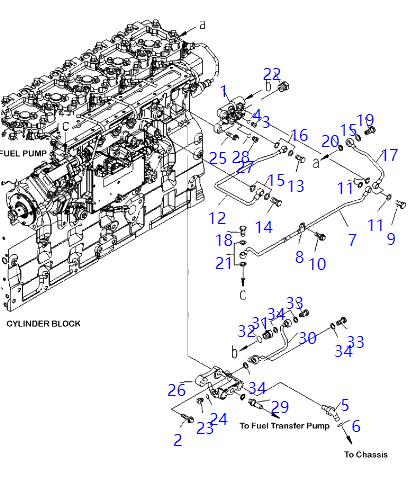

- Directory listing
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6745-71-5610 | [1] | CONNECTOR Komatsu | 0.4 kg. |
| 2 | 6732-22-3110 | [2] | BOLT Komatsu China | |
| 6732-21-1960 | [1] | PLUG, THREADED Komatsu China | ||
| |$2. | ||||
| 3. | NSS | [1] | PLUG, THREADED Komatsu China | |
| 4. | 6215-81-9710 | [1] | O-RING Komatsu | 0.001 kg. |
| 5 | 6745-71-5180 | [1] | ELBOW Komatsu China | |
| 6 | 02896-11009 | [1] | O-RING Komatsu China | 0.01 kg. |
| analogs:["R0289611009", "0286911009"] | ||||
| 7 | 6745-71-5440 | [1] | TUBE Komatsu | 0.5 kg. |
| 8 | 6745-71-5450 | [1] | CLIP Komatsu | 0.5 kg. |
| 9 | 6732-71-6510 | [2] | BOLT Komatsu OEM | 0.02 kg. |
| 10 | 6732-61-3140 | [1] | BOLT Komatsu | 0.02 kg. |
| 11 | 6745-71-1130 | [4] | WASHER Komatsu | 0.001 kg. |
| 12 | 6745-71-5460 | [1] | TUBE Komatsu | 0.2 kg. |
| 14 | 6732-71-5620 | [1] | CONNECTOR Komatsu | 0.027 kg. |
| analogs:["1241204H1"] | ||||
| 15 | 6731-74-5910 | [2] | WASHER Komatsu OEM | 0.01 kg. |
| 17 | 6745-71-5470 | [1] | TUBE Komatsu | 0.05 kg. |
| 19 | 6754-71-5430 | [1] | VALVE, CHECK Komatsu | 0.04 kg. |
| 22 | 6745-71-5190 | [1] | PLUG Komatsu China | |
| 6744-71-3050 | [1] | PLUG, THREADED Komatsu China | ||
| analogs:["6744713060"] |$23. | ||||
| 24. | 6737-51-8770 | [1] | O-RING Komatsu | 0.01 kg. |
| 25 | 6216-74-6190 | [2] | BOLT Komatsu China | |
| 26 | 6745-71-5580 | [1] | CONNECTOR Komatsu China | |
| 29 | 6745-71-6130 | [1] | CONNECTOR Komatsu | 0.038 kg. |
| 30 | 6745-71-5480 | [1] | TUBE Komatsu | 0.11 kg. |
| 6745-71-5490 | [1] | UNION Komatsu China | ||
| |$33. | ||||
| 32. | 6735-21-4160 | [1] | O-RING Komatsu | 0.003 kg. |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
