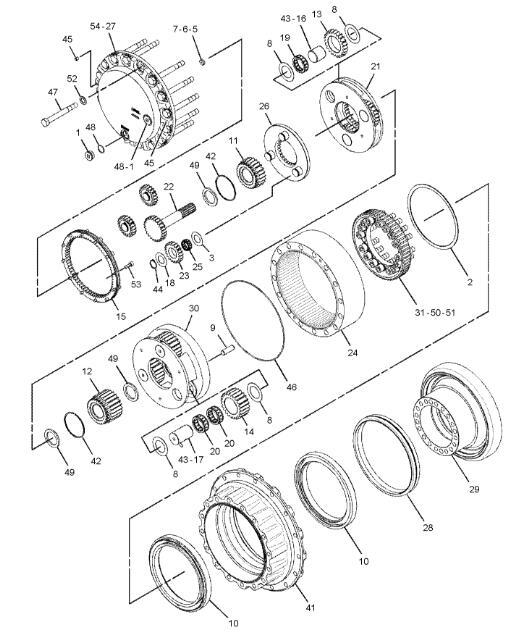

1.3E-2338[2] -
PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL)
2.267-6863 B[1] -
SHIM (0.75-MM THK)
3.191-2690[3] -
WASHER (42.3X70X1-MM THK)
5.094-0578 B[1] -
PLATE (8-MM THK)
6.094-0579 B[1] -
PLATE (9-MM THK)
7.094-0580 B[1] -
PLATE (10-MM THK)
8.094-1528 M[12] -
WASHER (53X84X1-MM THK)
9.114-1540[4] -
PIN-DOWEL
10.333-2914[2] -
BALL BEARING
11.169-5589[1] -
GEAR-SUN (24-TEETH)
12.169-5590[1] -
GEAR-SUN (24-TEETH)
13.169-5592[3] -
GEAR-PLANETARY (23-TEETH)
14.169-5593[3] -
GEAR-PLANETARY (23-TEETH)
15.171-9387[1] -
GEAR-RING (64-TEETH)
16.169-5601[3] -
SHAFT-PLANETARY
17.169-5602[3] -
SHAFT-PLANETARY
18.191-2689[3] -
WASHER (34X70X1-MM THK)
19.333-2916[3] -
BEARING AS
20.333-2917[6] -
BEARING AS
21.191-2571[1] -
CARRIER-PLANETARY
22.191-2683[1] -
GEAR-SUN (20-TEETH)
23.191-2684[3] -
GEAR-PLANETARY (21-TEETH)
24.191-2676[1] -
GEAR-RING (72-TEETH)
25.296-6248[3] -
BEARING AS-ROLLER
26.191-2686[1] -
CARRIER AS
27.199-4503[1] -
COVER
28.207-1571[1] -
SEAL GP-DUO-CONE
214-3570[2] -
RING-TORIC
29.267-6797[1] -
HOUSING-MOTOR
30.267-6799[1] -
CARRIER-PLANETARY
31.267-6800[1] -
GEAR-COUPLING
41.267-6798[1] -
HOUSING
42.093-1731[2] -
RING-RETAINING
43.095-0891[6] -
PIN-SPRING
44.096-0433[3] -
RING-RETAINING
45.096-3216 M[2] -
SETSCREW-SOCKET (M12X1.75X12-MM)
46.171-9298[1] -
SEAL-O-RING
47.179-8733 M[16] -
BOLT (M20X2.5X170-MM)
48.7M-8485[2] -
SEAL-O-RING
49.7Y-0595[3] -
SPACER (58X79.6X6-MM THK)
50.7Y-5217 M[16] -
BOLT-SOCKET HEAD (M20X2.5X70-MM)
51.8T-3282[16] -
WASHER-HARD (22X35X3.5-MM THK)
52.8T-4123[16] -
WASHER (3.62X5.75X0.375-MM THK)
53.9X-6032 M[12] -
BOLT-SOCKET HEAD (M10X1.5X30-MM)
54.1U-8846 B-
SEALANT-GASKET





• Description



The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.

Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.





• Advantage





• Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



• Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
