353-0611 227-6949 114-1488 191-3237 227-6035 296-6299 Excavator Final Drive For 320C 320D
- 353-0611 227-6949 114-1488 191-3237 227-6035 296-6299 Excavator Final Drive For 320C 320D
- Spec Sheet
| Excavator spare parts name | Travel reduction gear |
| Equipment Model | 320C 320D |
| Parts egory | excavator final drive |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EXCAVATOR 318E L . 319D L . 319D LN . 320D . 320D FM . 320D GC . 320D L . 320D LRR . 320D RR . 320D2 . 320D2 GC . 320D2 L . 320E . 320E L . 320E LN . 320E LRR . 320E RR . 321D LCR . 323D L . 323D LN . 323D2 L . 323E L .

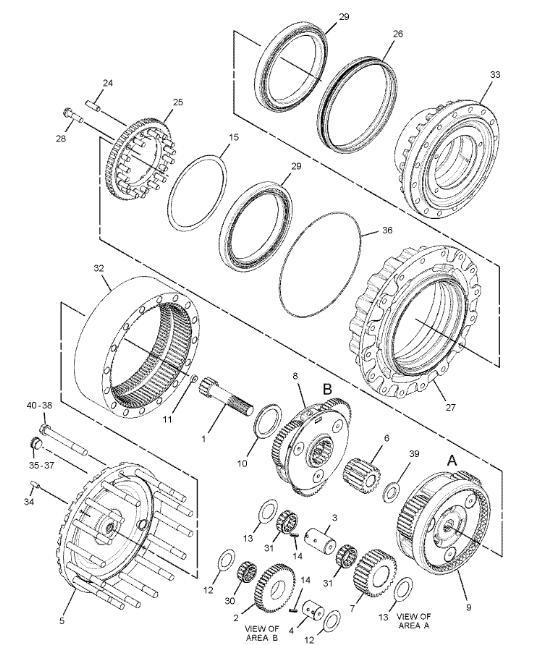

- Parts Diagram:
| 1.6I-6583[1] - GEAR-SUN (13-TEETH) 2.6I-6585[3] - GEAR-PLANETARY (44-TEETH) 3.7Y-0223[3] - SHAFT-PLANETARY 4.7Y-0225[3] - SHAFT-PLANETARY 5.7Y-1426[1] - COVER 6.7Y-1430[1] - GEAR-SUN (17-TEETH) 7.7Y-1431[3] - GEAR-PLANETARY (30-TEETH) 8.7Y-1432[1] - CARRIER 9.7Y-1433[1] - CARRIER 10.7Y-1558[1] - SPACER (90X119.6X7.5-MM THK) 11.094-0580[1] - PLATE (10-MM THK) 12.094-0611[6] - WASHER (47.3X76X1-MM THK) 13.094-1528 M[6] - WASHER (53X84X1-MM THK) 14.095-0891[6] - PIN-SPRING 15.096-1773 B[1] - SHIM (0.15-MM THK) 24.114-1539[6] - PIN-DOWEL 25.148-4715[1] - GEAR-COUPLING (55-TEETH) 26.174-4874[1] - SEAL GP-DUO-CONE . 27.191-3235[1] - HOUSING 28.227-6034[14] - BOLT-FLANGE HEAD (M16X2X60-MM) 29.296-6220[2] - BALL BEARING 30.296-6268[3] - BEARING AS-ROLLER . 31.296-6269[6] - BEARING-ROLLER . 32.296-6300 Y[1] - GEAR GP-TRANSFER 33.353-0612[1] - HOUSING-MOTOR . 34.095-1270 M[2] - SETSCREW-SOCKET (M12X1.75X30-MM) . 35.3E-2338[2] - PLUG-PIPE 36.6D-0692[1] - SEAL-O-RING 37.7M-8485[2] - SEAL-O-RING 38.453-4137[16] - BOLT (M20X2.5X180-MM) . 39.7Y-1434[1] - SPACER (40X69.5X6-MM THK) 40.451-2176[16] - WASHER-HARD (22X35X3.5-MM THK) |
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
