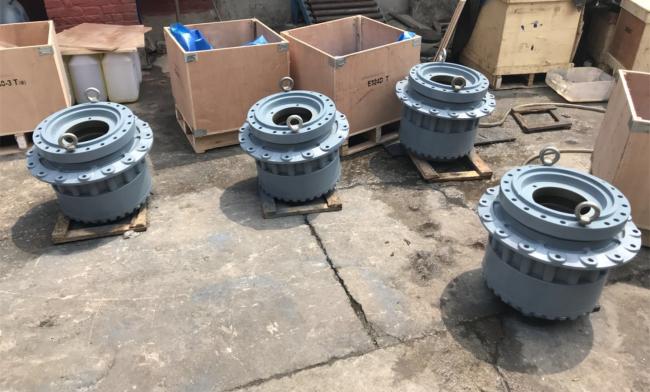

333-2909 267-6796 378-9567 227-6116 Final Drive Used For 325D 329D Excavator Parts

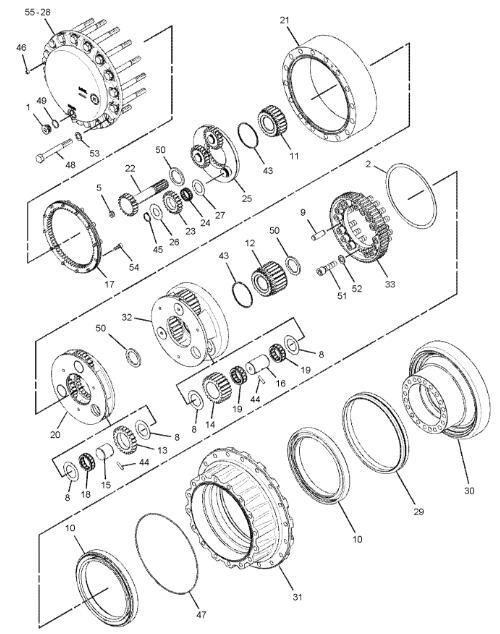

267-6796: DRIVE GP-FINAL

INDIVIDUAL PARTS:

1.3E-2338[2] -
PLUG-PIPE
2.267-6863 BJ[1] -
SHIM (0.75-MM THK)
7Y-0752 BJ[1] -
SHIM (0.8-MM THK) .
267-6864 BJ[1] -
SHIM (0.85-MM THK) .
267-6865 BJ[1] -
SHIM (0.9-MM THK) .
267-6866 BJ[1] -
SHIM (0.95-MM THK) .
7Y-0753 BJ[1] -
SHIM (1-MM THK) .
267-6867 BJ[1] -
SHIM (1.2-MM THK) .
267-6868 BJ[1] -
SHIM (1.4-MM THK) .
7Y-0754 BJ[1] -
SHIM (1.6-MM THK) .
267-6869 BJ[1] -
SHIM (1.8-MM THK) .
267-6870 BJ[1] -
SHIM (2-MM THK) .
267-6871 BJ[1] -
SHIM (2.3-MM THK) .
5.094-0578 B[1] -
PLATE (8-MM THK)
094-0579 B[1] -
PLATE (9-MM THK)
094-0580 B[1] -
PLATE (10-MM THK)
8.094-1528 M[12] -
WASHER (53X84X1-MM THK)
9.114-1540 J[4] -
PIN-DOWEL .
10.168-8452 J[2] -
BALL BEARING
11.169-5589[1] -
GEAR-SUN (24-TEETH)
12.169-5590[1] -
GEAR-SUN (24-TEETH)
13.169-5592[3] -
GEAR-PLANETARY (23-TEETH)
14.169-5593[3] -
GEAR-PLANETARY (23-TEETH)
15.169-5601[3] -
SHAFT-PLANETARY
16.169-5602[3] -
SHAFT-PLANETARY
17.171-9387[1] -
GEAR-RING (64-TEETH)
18.191-2569[3] -
BEARING AS (CAGED ROLLER)
19.191-2570[6] -
BEARING AS (CAGED ROLLER)
20.191-2571[1] -
CARRIER-PLANETARY .
21.191-2676[1] -
GEAR-RING (72-TEETH)
22.191-2683[1] -
GEAR-SUN (20-TEETH)
23.191-2684[3] -
GEAR-PLANETARY (21-TEETH)
24.191-2685[3] -
BEARING AS
25.191-2686[1] -
CARRIER AS
191-2687[3] -
RACE-BEARING .
26.191-2689[3] -
WASHER (34X70X1-MM THK) .
27.191-2690[3] -
WASHER (42.3X70X1-MM THK) .
28.199-4503[1] -
COVER .
29.207-1571 J[1] -
SEAL GP-DUO-CONE
214-3570[2] -
RING-TORIC .
30.267-6797 J[1] -
HOUSING-MOTOR .
31.267-6798 J[1] -
HOUSING .
32.267-6799[1] -
CARRIER-PLANETARY .
33.267-6800 J[1] -
GEAR-COUPLING .
43.093-1731[2] -
RING-RETAINING
44.095-0891[6] -
PIN-SPRING
45.096-0433[3] -
RING-RETAINING
46.096-3216 M[2] -
SETSCREW-SOCKET (M12X1.75X12-MM)
47.171-9298[1] -
SEAL-O-RING
48.179-8733 M[16] -
BOLT (M20X2.5X170-MM) .
49.7M-8485[2] -
SEAL-O-RING
50.7Y-0595[3] -
SPACER (58X79.6X6-MM THK)
51.7Y-5217 JM[16] -
BOLT-SOCKET HEAD (M20X2.5X70-MM)
52.8T-3282 J[16] -
WASHER-HARD (22X35X3.5-MM THK)
53.8T-4123[16] -
WASHER (3.62X5.75X0.375-MM THK)
54.9X-6032 M[12] -
BOLT-SOCKET HEAD (M10X1.5X30-MM)
55.1U-8846 B-
SEALANT-GASKET

AVAILABLE REPAIR KIT(S):
267-6818 J[1] -
KIT-FINAL DRIVE BEARING

• Description

The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.

Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

• Advantage

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

• Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
