Excavator Final Drive Gear Box Fit For 199-4579 227-6196 227-6189 227-6103 330C
TAG 330C FINAL DRIVE 330C TRAVEL REDUCER 330C TRAVEL GEARBOX 330C EXCAVATOR FINAL DRIVE 330C TRAVEL MOTOR
- 330C FINAL DRIVE 199-4579 227-6196 227-6189 227-6103 1994579 2276196 2276189 2276103
- Spec Sheet
| Excavator spare parts name | final drive gearbox |
| Equipment Model | 330C |
| Parts egory | excavator final drive |
| Spare parts Condition | Brand new, OEM quaity |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
EXCAVATOR 330C

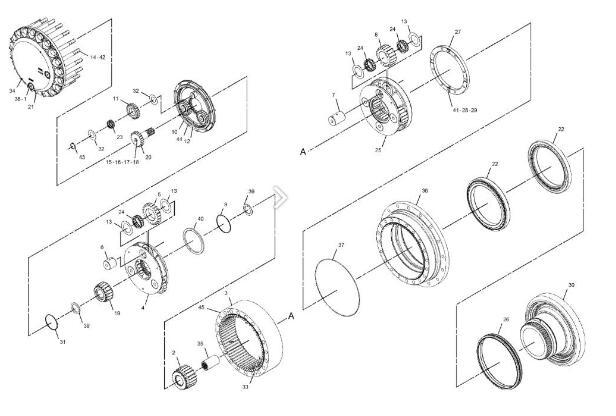

- Parts Diagram
1.3E-2338[2] -
PLUG-PIPE
2.7Y-0639[1] -
GEAR-SUN (21-TEETH)
3.7Y-0642[1] -
GEAR-RING (63-TEETH)
4.7Y-0645[1] -
CARRIER
5.7Y-0659[3] -
GEAR-PLANETARY (22-TEETH)
6.7Y-0661[3] -
SHAFT-PLANETARY
7.7Y-0662[4] -
SHAFT-PLANETARY
8.7Y-0663[4] -
GEAR-PLANETARY (20-TEETH)
9.7Y-0667[1] -
RING-RETAINING
10.7Y-0673[1] -
GEAR-RING (73-TEETH)
11.7Y-0676[3] -
GEAR-PLANETARY (24-TEETH)
12.7Y-0731[1] -
CARRIER AS
7Y-0656[3] -
SHAFT-PLANETARY
13.7Y-1094 M[14] -
WASHER (66X102X1-MM THK)
14.7Y-5235 M[20] -
BOLT (M24X3X190-MM)
15.094-0577 B[1] -
PLATE (7-MM THK)
16.094-0578 B[1] -
PLATE (8-MM THK)
17.094-0579 B[1] -
PLATE (9-MM THK)
18.094-0580 B[1] -
PLATE (10-MM THK)
19.110-7231[1] -
GEAR-SUN (18-TEETH)
20.191-2521[1] -
GEAR-SUN (23-TEETH)
21.191-2526[1] -
COVER
22.196-4873[2] -
BEARING AS-BALL
23.199-4582[3] -
BEARING AS
24.199-4583[11] -
BEARING AS
25.199-4750[1] -
CARRIER-PLANETARY .
26.213-4737[1] -
SEAL GP-DUO-CONE
27.227-6100[1] -
RETAINER .
28.227-6101[2] -
PLATE-WASHER .
29.227-6102[2] -
DOWEL .
30.227-6197[1] -
HOUSING-MOTOR .
31.093-1731[1] -
RING-RETAINING
32.094-0584[6] -
WASHER (40.3X72X1-MM THK)
33.095-0891[7] -
PIN-SPRING
34.096-3216 M[2] -
SETSCREW-SOCKET (M12X1.75X12-MM)
35.191-2645[1] -
COUPLING
36.199-4580[1] -
HOUSING .
37.2P-3628[1] -
SEAL-O-RING
38.7M-8485[2] -
SEAL-O-RING
39.7Y-0595[2] -
SPACER (58X79.6X6-MM THK)
40.7Y-0644[1] -
SPACER (163X190X8-MM THK)
41.8T-0293 M[2] -
BOLT (M12X1.75X20-MM)
42.8T-4167[20] -
WASHER-HARD (26X44X4-MM THK)
43.8T-4240[3] -
RING-RETAINING
44.9X-6032 M[12] -
BOLT-SOCKET HEAD (M10X1.5X30-MM)
45.1U-8846 B-
SEALANT-GASKET
227-6198 FY[1] -
HOUSING GP-FINAL DRIVE

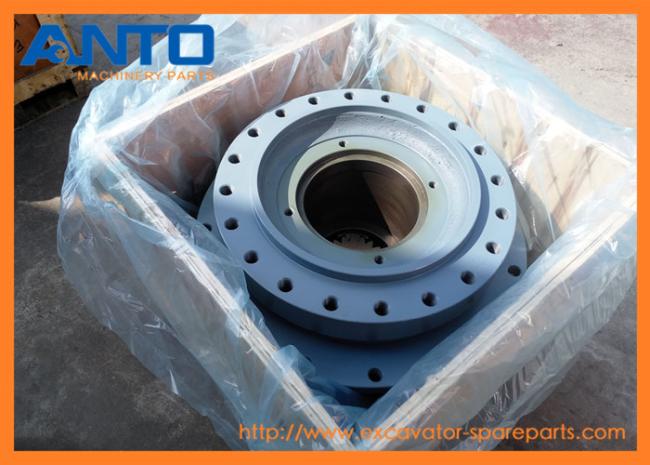

- Product Photos
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
