PS15V00003F1 Travel Motor Reduction Gear Box Used For CX55 Excavator Final Drive
- PS15V00003F1 Travel Motor Reduction Gear Box Used For CX55 Excavator Final Drive
- Spec Sheet
| Parts Name | CX55 Travel Gearbox |
| Appliion | |
| egory | Final Drive |
|
|

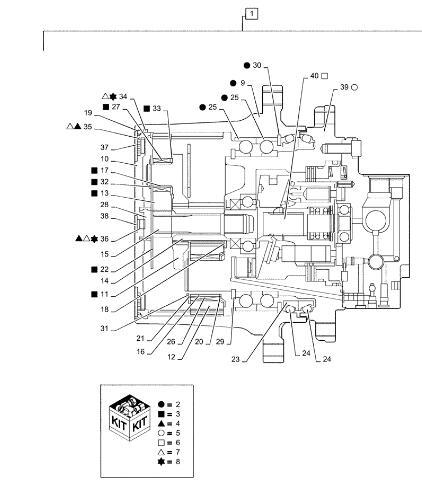

2
|
|
PS15V00003R400
|
KIT
|
Repair, Incl 9 (1), 30 (1), 25 (2)
|
1
|
|
|
3
|
|
PS15V00003R410
|
KIT
|
Repair, Incl 11 (1), 22 (1), 13 (3), 17 (3), 32 (3), 33 (3), 27 (3)
|
1
|
|
|
4
|
|
PS15V00003R420
|
KIT
|
Repair, Incl 35 (10), 36 (10)
|
1
|
|
|
5
|
|
PS15V00003R430
|
KIT
|
Repair, Incl 39 (1)
|
1
|
|
|
6
|
|
LE15V00006R440
|
KIT
|
Repair, Incl 40 (1)
|
1
|
|
|
7
|
|
LE15V00006R460
|
KIT
|
Repair, Incl 34 (1), 36 (1), 35 (2)
|
1
|
|
|
8
|
|
PS15V00003R470
|
KIT
|
Repair, Incl 34 (2), 36 (2)
|
1
|
|
|
9
|
|
NSS
|
NOT SOLD SEPARAT
|
Body, Incl in 2
|
1
|
|
|
10
|
|
PS15V00003S102
|
COVER
|
|
1
|
|
|
11
|
|
NSS
|
NOT SOLD SEPARAT
|
Carrier, Incl in 3
|
1
|
|
|
12
|
|
PS15V00003S106
|
GEAR
|
|
4
|
|
|
13
|
|
NSS
|
NOT SOLD SEPARAT
|
Gear, Incl in 3
|
3
|
|
|
14
|
|
PS15V00003S108
|
GEAR
|
|
1
|
|
|
15
|
|
PS15V00003S109
|
GEAR
|
|
1
|
|
|
16
|
|
LE15V00006S110
|
RING
|
|
4
|
|
|
17
|
|
NSS
|
NOT SOLD SEPARAT
|
Ring, Incl in 3
|
3
|
|
|
18
|
|
PV15V00008S140
|
THRUST WASHER
|
|
1
|
|
|
19
|
|
PY15V00011S113
|
RING
|
|
1
|
|
|
20
|
|
PS15V00003S114
|
PLATE
|
|
4
|
|
|
21
|
|
PS15V00003S115
|
PLATE
|
|
1
|
|
|
22
|
|
NSS
|
NOT SOLD SEPARAT
|
Plate, Incl in 3
|
1
|
|
|
23
|
|
LE15V00006S117
|
SEAL
|
Incl 24
|
2
|
|
|
24
|
|
NSS
|
NOT SOLD SEPARAT
|
O-Ring
|
2
|
|
|
25
|
|
NSS
|
NOT SOLD SEPARAT
|
Bearing, Incl in 2
|
2
|
|
|
26
|
|
LE15V00006S120
|
BEARING ASSY
|
Needle
|
136
|
|
|
27
|
|
NSS
|
NOT SOLD SEPARAT
|
Bearing, Needle, Incl in 3
|
69
|
|
|
28
|
|
PU15V00018S115
|
RING
|
|
1
|
|
|
29
|
|
PY15V00011S123
|
SNAP RING
|
Retaining
|
1
|
|
|
30
|
|
NSS
|
NOT SOLD SEPARAT
|
Ring, Snap, Incl in 2
|
1
|
|
|
31
|
|
LE15V00006S125
|
RING
|
|
4
|
|
|
32
|
|
NSS
|
NOT SOLD SEPARAT
|
Ring, Snap, Incl in 3
|
3
|
|
|
33
|
|
NSS
|
NOT SOLD SEPARAT
|
Washer, Thrust, Incl in 3
|
3
|
|
|
34
|
|
PY15V00011S129
|
O-RING
|
|
1
|
|
|
35
|
|
ZD12P01400
|
O-RING
|
|
4
|
|
|
36
|
|
ZD12P00800
|
O-RING,1.9mm Thk x 7.8mm ID, 90 Duro
|
|
3
|
|
|
37
|
|
PH15V00002S132
|
PLUG
|
|
2
|
|
|
38
|
|
PV15V00026S133
|
PLUG
|
|
1
|
|
|
39
|
|
NSS
|
NOT SOLD SEPARAT
|
Body, Incl in 5
|
1
|
|
|
40
|
|
NSS
|
NOT SOLD SEPARAT
|
Shaft, Incl in 6
|
1
|
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
