1013981 Gear Ring Used For Hitachi EX200-2 Excavator Travel Device Parts
- 1013981 Gear Ring Used For Hitachi EX200-2 Excavator Travel Device Parts
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Spec Sheet
| PARTS NAME | EX200-2 Travel Ring Gear |
| EQUIPMENT | EX200-2 Excavator |
| egory | Excavator track drive |
| ITEM CONDITION | New |
| Appliion | Replacement |
| MATERIAL | Steel |
| PROCESSING | Forged |
| MOQ | 1 pcs |

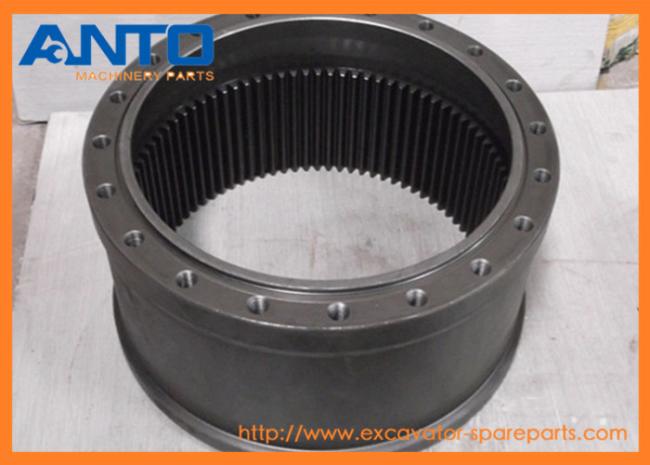

- Product photos

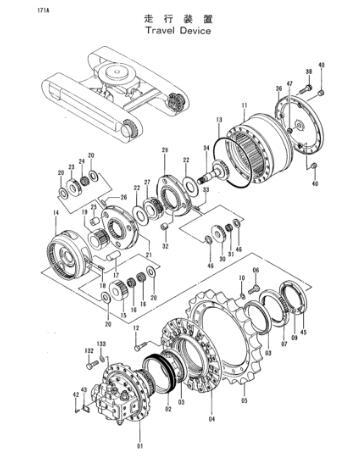

- Parts Diagram
ENTIRE GROUP TRAVEL DEVICE:
01-47.9116393[2] -
TRAVEL DEVICE ASS'Y .
01.9116390[1] -
MOTOR;OIL .
02.4114753[1] -
SEAL;GROUP
03.4246793[2] -
BRG.;ROL.
04.1013983[1] -
DRUM
05.1010203[1] -
SPROCKET
06.J932055[16] -
BOLT
07.3047448[1] -
HUB
09.4246783[1] -
PIN;KNOCK
10.A590920[16] -
WASHER;SPRING
11.1013981[1] -
GEAR;RING
12.J931660[20] -
BOLT
13.4246792[1] -
O-RING
14.1013980[1] -
CARRIER
15.3047444[3] -
GEAR;PLANETARY
16.4210850[6] -
BRG.;NEEDLE
17.4246790[3] -
PIN
18.4116309[3] -
PIN;SPRING
19.3047443[1] -
GEAR;SUN
20.4269295[12] -
PLATE;THRUST
21.1013979[1] -
CARRIER
22.4246785[2] -
SPACER
23.3047446[3] -
GEAR;PLANETARY
24.4246786[3] -
BRG.;NEEDLE
25.4246789[3] -
PIN
26.4246358[3] -
PIN;SPRING
27.3047442[1] -
GEAR;SUN
29.1013982[1] -
CARRIER
30.3047447[3] -
GEAR;PLANETARY
31.4246787[3] -
BRG.;NEEDLE
32.4246788[3] -
PIN
33.4192020[3] -
PIN;SPRING
34.2028213[1] -
SHAFT;PROP.
36.2028212[1] -
COVER
38.J011230[16] -
BOLT;SEMS
40.4245797[3] -
PLUG
42.M492564[2] -
SCREW;DRIVE
43.3053559[1] -
NAME-PLATE
45.3057125[1] -
NUT
46.4192983[6] -
PLATE;THRUST
47.4285323[1] -
PIN;STOPPER
132.4248607[28] -
BOLT
133.4018545[28] -
WASHER
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
