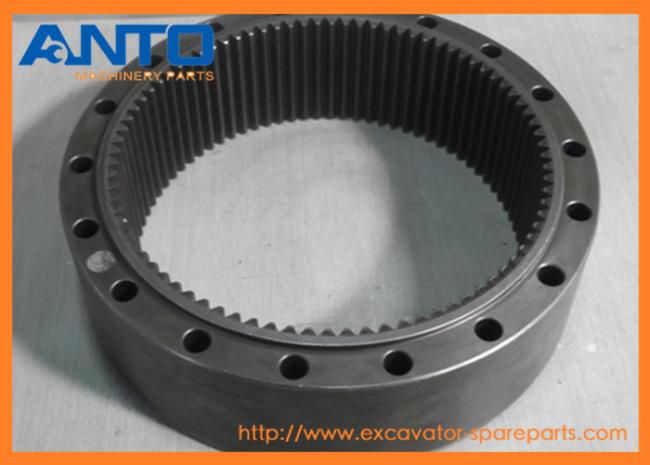

20Y-27-21180 Gear Ring Used For Komatsu PC200-6 Excavator Final Drive Parts

• PC200-6 6D95 Travel Gearbox Gear Ring 20Y-27-21180 Used For Komatsu Excavator Parts

• Description

The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.

Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

• Spec Sheet

• Appliion

CD110R-1 S/N 1061-UP (For North America) CRAWLER CARRIERS
CD110R-1 S/N 1061-UP CRAWLER CARRIERS
PC100L-6 S/N 15001-UP EXCAVATORS
PC100L-6 S/N 15001-UP EXCAVATORS
PC200-6H S/N 80001-UP (Hyper GX Spec.) EXCAVATORS
PC200-6 S/N 80001-UP (Overseas Version) EXCAVATORS
PC200-6 S/N 80001-UP EXCAVATORS
PC200-6H S/N 80001-UP EXCAVATORS
PC200-6J S/N 80001-UP EXCAVATORS
PC200-6S S/N 80001-UP EXCAVATORS
PC200LC-6 S/N 80001-UP (Overseas Version) EXCAVATORS
PC200LC-6 S/N 80001-UP EXCAVATORS
PC200LC-6H S/N 80001-UP (Hyper GX Spec.) EXCAVATORS
PC200LC-6H S/N 80001-UP EXCAVATORS
PC200LC-6J S/N 80001-UP EXCAVATORS
PC200LC-6S S/N 80001-UP EXCAVATORS
PC200-6L/LC-6L S/N A80001-A82000 EXCAVATORS
PC210-6G S/N 30001-UP EXCAVATORS
PC210-6 S/N 30001-UP EXCAVATORS
PC210-6 S/N 30001-UP EXCAVATORS
PC210-6K S/N K30001-UP EXCAVATORS
PC210LC-6LC S/N A82001-UP EXCAVATORS
PC210LC-6G S/N 30001-UP EXCAVATORS
PC210LC-6K S/N K30001-UP EXCAVATORS
PC210LC-6L S/N A80001-UP EXCAVATORS
PC210LC-6 S/N 30001-UP EXCAVATORS
PC210LC-6 S/N 30001-UP EXCAVATORS
PC220-6 S/N 50001-UP EXCAVATORS
PC220-6 S/N 50001-UP EXCAVATORS
PC220LC-6 S/N 50001-UP EXCAVATORS
PC220LC-6 S/N 50001-UP EXCAVATORS
PC220LC-6L S/N A80001-A82000 EXCAVATORS
PC230-6 S/N 10001-UP EXCAVATORS
PC230-6 S/N 10001-UP EXCAVATORS
PC230LC-6 S/N 10001-UP EXCAVATORS
PC230LC-6 S/N 10001-UP EXCAVATORS
PC240-6K S/N K30001-UP EXCAVATORS
PC240LC-6K S/N K30001-UP EXCAVATORS
PC240NLC-6K S/N K30001-UP EXCAVATORS

• Product photos

20Y-27-00102[1]- FINAL DRIVE ASS'Y Komatsu ["SN: 83115-91086"] analogs:["20Y27K1200", "20Y2700201", "20Y2700204", "20Y2700101", "20Y2700200", "20Y2700202", "20Y27K1220", "20Y2700203"] |1. Weight: 560 kg.

20Y-27-00101[1]- FINAL DRIVE ASS'Y Komatsu ["SN: 80001-83114"] analogs:["20Y27K1200", "20Y2700201", "20Y2700204", "20Y2700102", "20Y2700200", "20Y2700202", "20Y27K1220", "20Y2700203"] |1. Weight: 560 kg.

1.708-8H-00171[1]- MOTOR ASS'Y,(SEE FIG.P1210-5101) Komatsu ["SN: 80001-91086"] analogs:[] Weight: 134.001 kg.

150-27-00029[1]- FLOATING SEAL ASS'Y Komatsu China ["SN: 83115-@"] analogs:["1502700330", "1502700410"] |2. Weight: 2.99 kg.

150-27-00028[1]- FLOATING SEAL ASS'Y Komatsu China ["SN: 80001-83114"] analogs:["1502724130", "1502700027", "1502700026", "1502700025"] |2.Weight: 2.4 kg.

2.[2]- RING Komatsu China ["SN: 83115-@"] analogs:null

4.20Y-27-21120[1]- HUB Komatsu ["SN: 80001-91086"] analogs:[] Weight: 97 kg.

5.20Y-27-11570[2]- BEARING Komatsu China ["SN: 80001-91086"] analogs:["2052771430"] Weight: 5.2 kg.

6.20Y-27-21350[1]- O-RING Komatsu ["SN: 80001-91086"] analogs:[] Weight: 0.02 kg.

7.20Y-27-21331[1]- LOCKNUT Komatsu ["SN: 80001-91086"] analogs:["20Y2721330"] Weight: 4.35 kg.

8.20Y-27-21341[1]- LOCK Komatsu ["SN: 80001-91086"] analogs:[] Weight: 0.1 kg.

9.01010-51020[2]- BOLT Komatsu ["SN: 80001-91086"] analogs:["0101081020", "801014093", "801015108"] Weight: 0.161 kg.

10.20Y-27-21153[1]- CARRIER Komatsu ["SN: 90730-91086"] analogs:["20Y2721152"] Weight: 24.5 kg.

20Y-27-21152[1]- CARRIER Komatsu ["SN: 80001-90729"] analogs:["20Y2721153"] |10. Weight: 24.5 kg.

11.20Y-27-21210[3]- GEAR Komatsu ["SN: 80001-91086"] analogs:[] Weight: 4.3 kg.

12.20Y-27-21270[3]- BEARING Komatsu China ["SN: 80001-91086"] analogs:["20Y2722220"] Weight: 0.3 kg.

13.20Y-27-21250[6]- WASHER Komatsu China ["SN: 80001-91086"] analogs:[] Weight: 0.03 kg.

14.20Y-27-21230[3]- PIN Komatsu ["SN: 80001-91086"] analogs:[] Weight: 1.54 kg.

15.20Y-27-21290[3]- PIN Komatsu OEM ["SN: 80001-91086"] analogs:[] Weight: 0.03 kg.

16.20Y-27-13310[1]- WASHER Komatsu China ["SN: 80001-@"] analogs:[] Weight: 0.08 kg.

17.20Y-27-21190[1]- GEAR Komatsu ["SN: 80001-91086"] analogs:["20Y2721191"] Weight: 2.7 kg.

18.20Y-27-21180[1]- GEAR Komatsu ["SN: 80001-91086"] analogs:[] Weight: 46.5 kg.

19.20Y-27-21140[1]- CARRIER Komatsu ["SN: 80001-91086"] analogs:[] Weight: 8.2 kg.

20.20Y-27-21170[3]- GEAR Komatsu ["SN: 80001-91086"] analogs:[] Weight: 2.7 kg.

21.20Y-27-21260[3]- BEARING Komatsu China ["SN: 80001-91086"] analogs:["20Y2722210"] Weight: 0.12 kg.

22.20Y-27-21240[6]- WASHER Komatsu China ["SN: 80001-@"] analogs:[] Weight: 0.02 kg.

23.20Y-27-21220[3]- PIN Komatsu China ["SN: 80001-@"] analogs:[] Weight: 0.411 kg.

24.20Y-27-21280[3]- PIN Komatsu China ["SN: 80001-@"] analogs:[] Weight: 0.01 kg.

25.20Y-27-21161[1]- SHAFT Komatsu ["SN: 80001-91086"] analogs:[] Weight: 2.26 kg.

26.20Y-27-21310[1]- WASHER Komatsu China ["SN: 80001-@"] analogs:[] Weight: 0.17 kg.

27.04260-01905[1]- BALL Komatsu OEM ["SN: 80001-91086"] analogs:[] Weight: 0.029 kg.

28.20Y-27-21110[1]- COVER Komatsu ["SN: 80001-91086"] analogs:[] Weight: 23 kg.

29.20Y-27-21360[18]- BOLT Komatsu ["SN: 80001-91086"] analogs:[] Weight: 0.28 kg.

30.01643-31645[18]- WASHER Komatsu ["SN: 80001-@"] analogs:["802170005", "0164301645"] Weight: 0.072 kg.

31.07049-01215[2]- PLUG Komatsu ["SN: 80001-91086"] analogs:[] Weight: 0.001 kg.

32.07044-12412[2]- PLUG Komatsu ["SN: 80001-@"] analogs:["0704402412", "R0704412412"] Weight: 0.09 kg.

33.07002-02434[2]- O-RING Komatsu China ["SN: 80001-@"] analogs:["0700212434", "0700213434"] Weight: 0.01 kg.

34.20Y-27-11581[1]- SPROCKET Komatsu China ["SN: 80001-@"] analogs:["20Y2711582", "20Y27K1110", "20Y2777110"] Weight: 36.2 kg.

35.20Y-27-11561[20]- BOLT Komatsu China ["SN: 80001-@"] analogs:[] Weight: 0.14 kg.



• Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts alog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB





• Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



• Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
