160094A1 160144A1 Excavator Final Drive Hub Housing Gear Parts Applied To Sumitomo SH200
- 160094A1 160144A1 Excavator Final Drive Hub Housing Gear Parts Applied To Sumitomo SH200
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Spec Sheet
| PARTS NAME | SH200 Final drive HUB |
| EQUIPMENT | SH200 Excavator |
| egory | Excavator final drive |
| ITEM CONDITION | New |
| Appliion | Replacement |
| MATERIAL | Steel |
| PROCESSING | Casting |
| MOQ | 1 pcs |

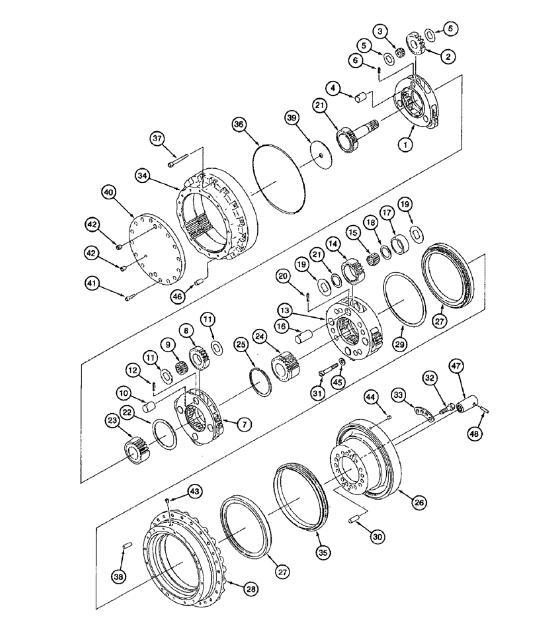

- Parts Diagram
|
|
REDUCER
|
TRANSMISSION ASSEMBLY - without track drive motor, Includes: Ref. 1 - 6
|
1
|
|
|
|
160146A1
|
GEAR WHEEL
|
CARRIER ASSEMBLY A - planetary gear; Incl Ref 1 - 6
|
1
|
|
1
|
160094A1
|
GEAR WHEEL
|
CARRIER A - planetary gears
|
1
|
|
2
|
160004A1
|
SUN GEAR
|
GEAR - planetary
|
3
|
|
3
|
160278A1
|
BEARING, NEEDLE,30mm ID x 40mm OD x 19.8mm W
|
NEEDLE - bearing
|
3
|
|
4
|
160029A1
|
LARGE PIN
|
SHAFT - gear
|
3
|
|
5
|
160291A1
|
THRUST WASHER
|
WASHER - thrust
|
6
|
|
6
|
160109A1
|
PIN, ROLL
|
PIN - roll, special
|
2
|
|
|
160144A1
|
HOLDER
|
CARRIER ASSEMBLY B - planetary gear, replaces 160144A1, carrier assembly B (replaces 164714A1 ), Includes: Ref. 7 - 12
|
1
|
|
7
|
160095A1
|
GEAR WHEEL
|
CARRIER B - planetary gears
|
1
|
|
8
|
160005A1
|
SUN GEAR
|
GEAR - planetary
|
4
|
|
9
|
160273A1
|
NEEDLE BEARING,35mm ID x 51mm OD x 24.8mm W
|
BEARING - roller
|
4
|
|
10
|
160030A1
|
SHAFT
|
- gear
|
4
|
|
11
|
160043A1
|
THRUST WASHER
|
WASHER - thrust
|
3
|
|
12
|
160098A1
|
PIN, ROLL
|
PIN - roll, special
|
4
|
|
|
160145A1
|
GEAR WHEEL
|
CARRIER ASSEMBLY C - planetary gear, Includes: Ref. 13 - 20
|
1
|
|
13
|
160207A1
|
HOLDER
|
CARRIER C - planetary gears
|
1
|
|
14
|
160010A1
|
SUN GEAR
|
GEAR - planetary
|
4
|
|
15
|
160326A1
|
ROLLER
|
NEEDLE - bearing
|
68
|
|
16
|
160031A1
|
SHAFT
|
- gear
|
4
|
|
17
|
160037A1
|
BUSHING
|
RACE - bearing
|
4
|
|
18
|
160093A1
|
COLLAR
|
- needle retaining
|
8
|
|
19
|
160044A1
|
THRUST WASHER
|
WASHER - thrust
|
8
|
|
20
|
160099A1
|
PIN, ROLL
|
PIN - roll, special
|
4
|
|
21
|
160007A1
|
PINION
|
GEAR - drive
|
1
|
|
22
|
160038A1
|
PLATE, THRUST
|
PLATE - thrust
|
1
|
|
23
|
160008A1
|
SUN GEAR
|
GEAR B - sun
|
1
|
|
24
|
160009A1
|
SUN GEAR
|
GEAR C - sun
|
1
|
|
25
|
155643A1
|
RING, SNAP
|
RING - snap
|
1
|
|
26
|
NSS
|
NOT SOLD SEPARAT
|
FLANGE - final drive transmission
|
1
|
|
27
|
156144A1
|
BEARING, BALL,240mm ID x 310mm OD x 32mm W
|
BEARING - ball
|
2
|
|
28
|
NSS
|
NOT SOLD SEPARAT
|
HOUSING - bearing
|
1
|
|
29
|
160223A1
|
SHIM KIT
|
KIT - shim
|
1
|
|
30
|
160104A1
|
PIN
|
- dowel
|
4
|
|
31
|
863-16090
|
HEX SOC SCREW,M16 x 90mm, Cl 12.9
|
BOLT - hex socket, 16-2.0 x 90 mm, class 12.9
|
4
|
|
32
|
863-18055
|
HEX SOC SCREW,M18 x 55mm, Cl 12.9
|
BOLT - hex socket, 18-2.5 x 55 mm, class 12.9
|
16
|
|
33
|
156338A1
|
PLATE
|
- lock
|
4
|
|
34
|
160006A1
|
PINION
|
GEAR - ring
|
1
|
|
|
160575A1
|
SEAL KIT
|
KIT - seal, replaces 160224A1, seal kit, Includes: Ref. 35 and 36
|
1
|
|
35
|
155299A1
|
SEAL
|
- face
|
1
|
|
36
|
155183A1
|
O-RING
|
- seal
|
1
|
|
37
|
156200A1
|
BOLT,M14 x 95mm
|
BOLT - hex socket, 14-2.0 x 95 mm
|
16
|
|
38
|
155647A1
|
COTTER PIN
|
PIN - dowel
|
3
|
|
39
|
160220A1
|
SET OF PARTS
|
KIT - thrust plate
|
1
|
|
40
|
160325A1
|
COVER
|
- final drive transmission
|
1
|
|
41
|
863-10020
|
HEX SOC SCREW,M10 x 20mm, Cl 12.9
|
BOLT - hex socket, 10-1.5 x 20 mm, class 12.9
|
16
|
|
42
|
151033A1
|
PLUG
|
- hex socket, special
|
3
|
|
43
|
151026A1
|
PLUG
|
- port
|
1
|
|
44
|
151022A1
|
PLUG
|
- hex socket, special
|
1
|
|
45
|
892-10016
|
LOCK WASHER,M16
|
WASHER - lock, 16 mm
|
4
|
|
46
|
155578A1
|
PIN
|
- dowel
|
1
|
|
47
|
160002A1
|
COUPLING
|
- drive motor
|
1
|
|
48
|
738-1650
|
LOCK PIN,M6 x 50, Slotted
|
PIN - roll, 6 x 50 mm
|
1
|
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
