9170996 9233687 9195447 9233688 Travel Device Used For Hitachi ZX200 ZX210 Excavator Final Drive
- 9170996 9233687 9195447 9233688 Travel Device Used For Hitachi ZX200 ZX210 Excavator Final Drive
- Spec Sheet
| Excavator spare parts name | Travel device gearbox |
| Equipment Model | ZX200 |
| Parts egory | Excavator Final Drive Parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
IZX200 . IZX200LC . IZX210F . IZX210MF . ZR420JC . ZX200 . ZX200-E . ZX200-HHE . ZX200-X . ZX200LC-HHE . ZX210-AMS . ZX210-HCME . ZX210H . ZX210K . ZX210N-AMS . ZX210N-HCME . ZX240-AMS . ZX240-HCME . Hitachi

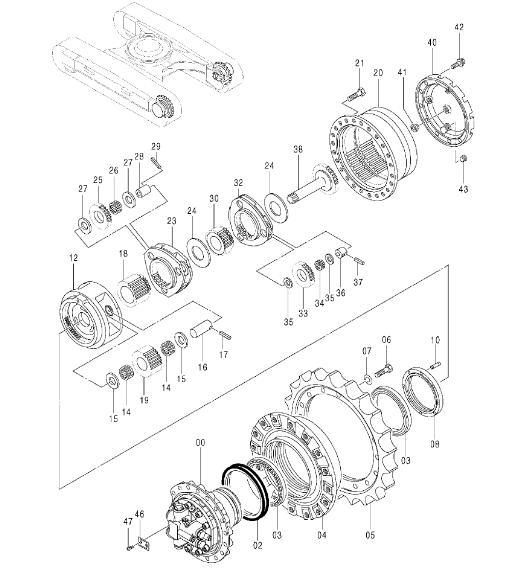

- Parts Diagram
TRAVEL DEVICE 9195447 .
9233687 I[2] -
TRAVEL DEVICE 9233688 (for assembly of machine) .
9195447[2] -
TRAVEL DEVICE .
9233688[2] -
TRAVEL DEVICE (for transportation) .
00.9168003 I[1] -
MOTOR;OIL 9195451 .
00.9234034 I[1] -
MOTOR;OIL 9237802 (for assembly of machine) .
00.9195451[1] -
MOTOR;OIL .
00.9237802[1] -
MOTOR;OIL (for transportation) .
02.4114753 I[1] -
SEAL;GROUP 4634693 .
02.4634693[1] -
SEAL;GROUP .
03.4246793[2] -
BRG.;ROL. .
04.1025833[1] -
DRUM
05.1018740[1] -
SPROCKET
06.J932055[16] -
BOLT
07.A590920[16] -
WASHER;SPRING .
08.3086531[1] -
NUT
10.4436242[1] -
PIN;KNOCK .
12.1025875[1] -
CARRIER
14.4438593[6] -
BRG.;NEEDLE .
15.4284521[6] -
PLATE;THRUST .
16.4315838[3] -
PIN .
17.4116309[3] -
PIN;SPRING .
18.3082156[1] -
GEAR;SUN .
19.3084353[3] -
GEAR;PLANETARY .
20.1025787[1] -
GEAR;RING
21.J931640[24] -
BOLT .
23.2042432[1] -
CARRIER .
24.4401293[2] -
SPACER
25.3082155[3] -
GEAR;PLANETARY .
26.4438592[3] -
BRG.;NEEDLE .
27.4192982[6] -
PLATE;THRUST .
28.4402086[3] -
PIN .
29.4192020[3] -
PIN;SPRING .
30.3082149[1] -
GEAR;SUN .
32.1025826[1] -
CARRIER
33.3082148[3] -
GEAR;PLANETARY .
34.4387383[3] -
BRG.;NEEDLE .
35.4192910[6] -
PLATE;THRUST .
36.4210853[3] -
PIN .
37.4173093[3] -
PIN;SPRING
38.2042351[1] -
SHAFT;PROP. .
38.2049585[1] -
SHAFT;PROP. .
40.2034833[1] -
COVER .
41.4285323 Y[1] -
PIN;STOPPER 4478346
41.4478346[1] -
PIN;STOPPER .
42.J011230 I[12] -
BOLT;SEMS 4609016 .
42.4609016[12] -
BOLT;SEMS .
43.4245797[3] -
PLUG .
46.3053559[1] -
NAME-PLATE
47.M492564[2] -
SCREW;DRIVE
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
